125
MAINTENANCE
After First 50 Hours (New Machines Only)
Inspecting and Adjusting the Fan
Belt
WARNING
Stop the engine and allow the machine to
cool down before performing inspection
and maintenance.
�
The engine, muffler, radiator, hydraulic
lines, sliding parts and many other parts
of the machine are hot directly after the
engine is stopped. Touching these parts
will cause burns.

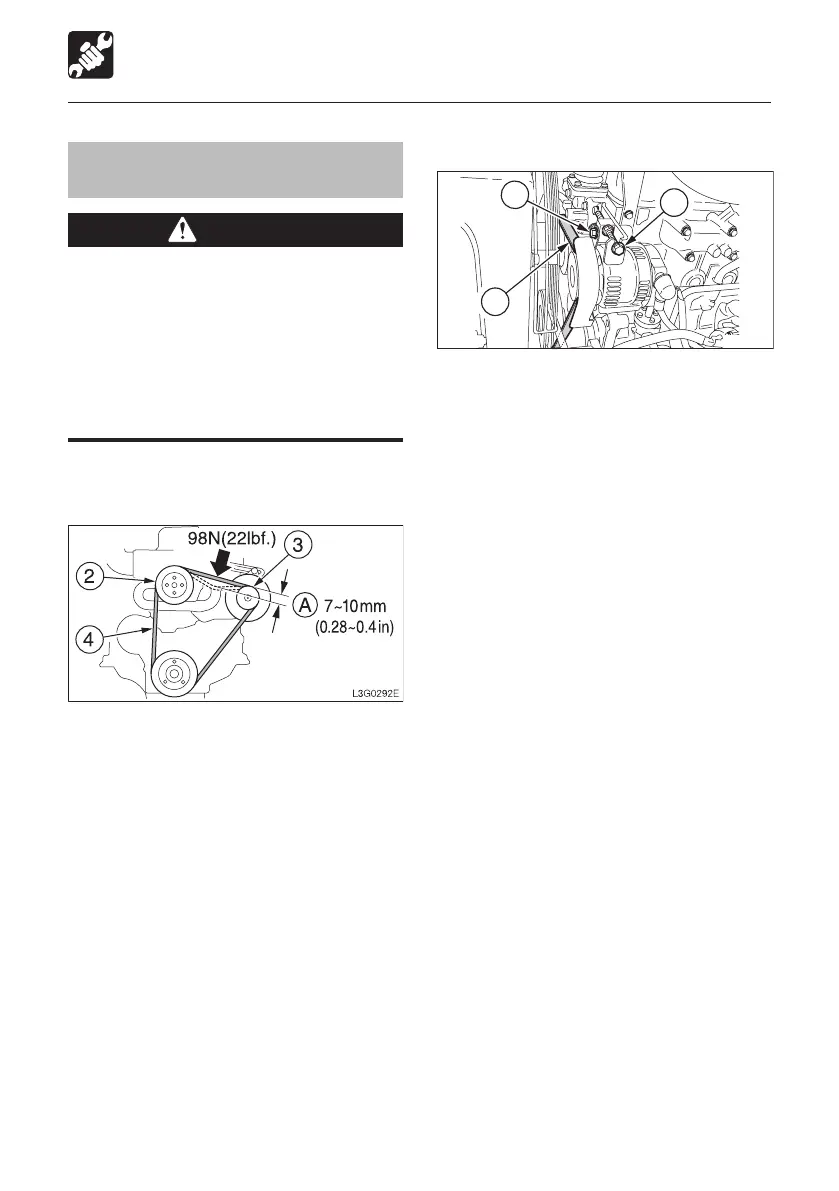

Inspection
1. Open the engine hood.
2. Press at the center of the fan pulley (2) and
alternator pulley (3) and check the tension
(about 98 N or 22 lbf.).
The slack (A) should be about 7 to 10 mm
(0.28 to 0.4 in).
3. Inspect the fan belt (4) and replace it if:
• there are cuts or cracks.
• the belt is worn and touches the bottom
of the V groove in the pulley.
• the belt stretches and cannot be
adjusted.
Adjustment
1. Loosen the locking nut (6).
2. Turn the adjustment bolt (5) and adjust the
fan belt (4).
• Tighten: Clockwise
• Loosen: Counterclockwise
3. Tighten the locking nut (6).
To Next Page
