81
OPERATION

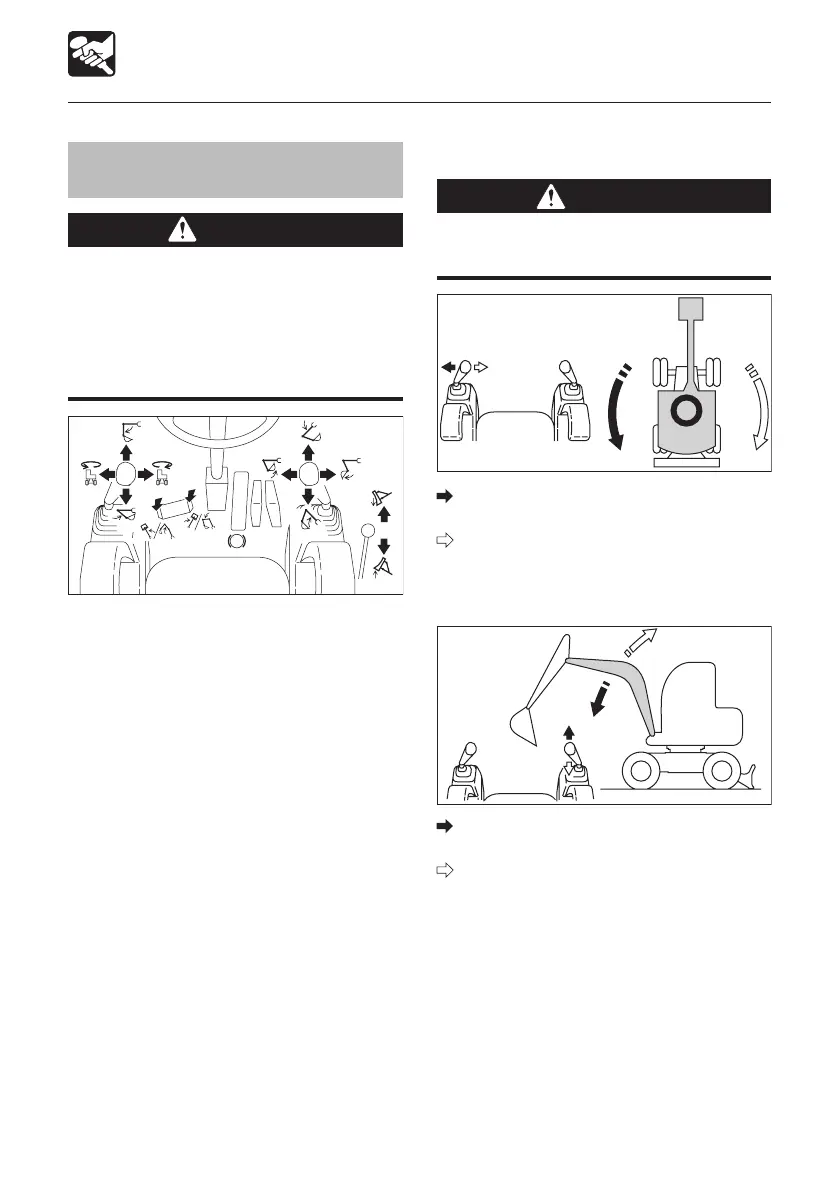

Machine Operation
Slewing
WARNING
Check the surrounding area for safety
before slewing.
To slew left:
Tilt the left operating lever to the left.
To slew right:
Tilt the left operating lever to the right.
Operating the Boom
To lower the boom:
Tilt the right operating lever forward.
To raise the boom:
Tilt the right operating lever backward.
Operating the Working
Equipment
WARNING
� Be careful to check which pattern
of lever control arrangement you
are operating with before beginning
operations.
�
The explanations in this manual are for
the ISO pattern.
Use the right operating lever to operate the
boom and bucket.
Use the left operating lever to operate the arm
and for slewing.
Return the operating levers to the neutral
position to stop the hoe attachments.
1. Push the brake pedal fully down to engage
the pedal lock.
2. Disengage the boom swing pedal and
blade lever locks.
3. Press the axle lock switch down to engage
the axle lock.
4. Lower the dozer blade to the ground.
5. Set the safety lock lever to the released
position.
