Takeuchi TB28FR User Manual

71
OPERATION
Machine Operation
Press the travel speed switch on the right
travel lever to switch to 2nd (high) speed,
and press it again to return to 1st speed
(low speed).
Pivot Turn
Turning to the left when stopped:
aTo turn forward to the left:
Tilt the right lever forward.
eTo turn backward to the left:
Tilt the right lever backward.
To turn to the right, operate the left lever in
the same way.
Turning to the left while traveling:
aTo turn left while traveling forward:
Set the left lever to neutral.
eTo turn left while traveling backward:
Set the left lever to neutral.
To turn to the right while traveling, operate
the right lever in the same way.

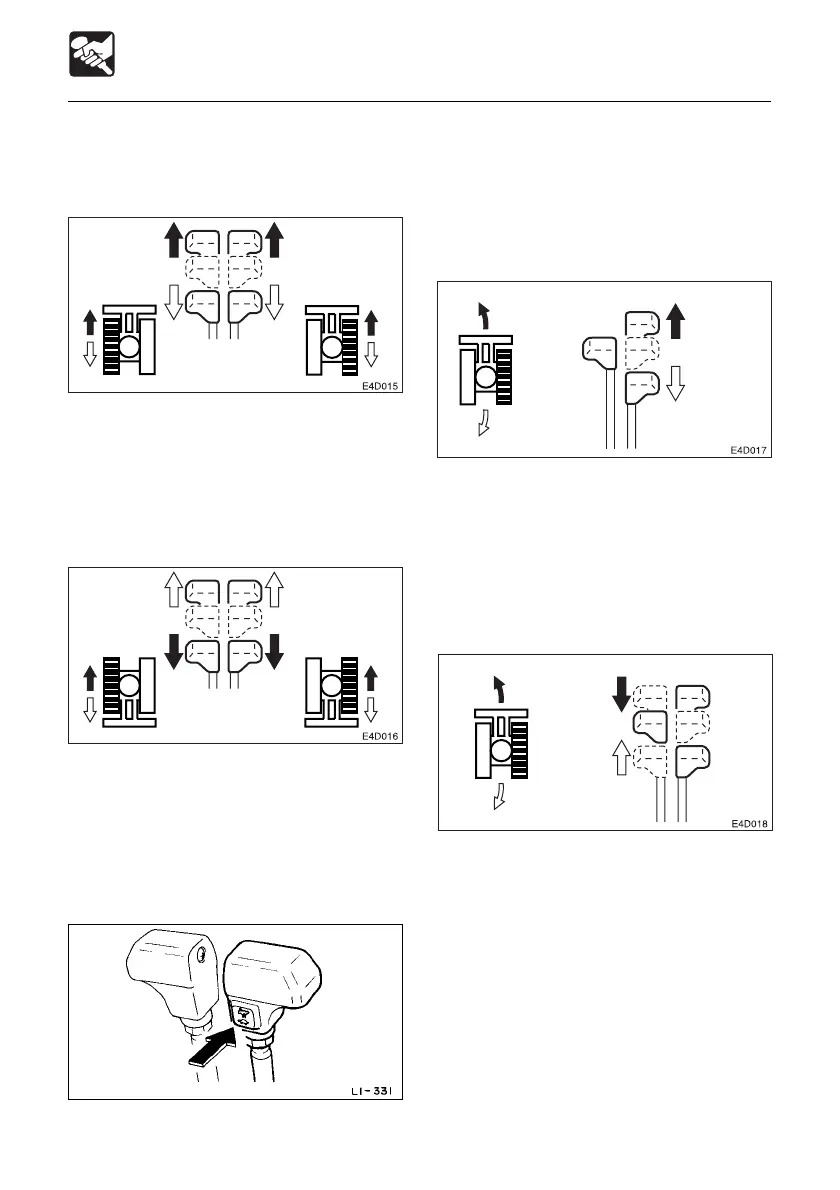

5.Operate the left and right travel levers as
described below.
When the blade is in front of the operator’s
seat:
aTo move forward:
Tilt the levers forward.
eTo move backward:
Tilt the levers backward.
When the blade is behind the operator’s seat:
aTo move forward:
Tilt the levers backward.
eTo move backward:
Tilt the levers forward.
Traveling in 2nd (High) Speed
Neutral Neutral
Neutral Neutral
Neutral
Neutral
