MACHINE CONFIGURATION
UPPER FRAME
III-20TB53FR

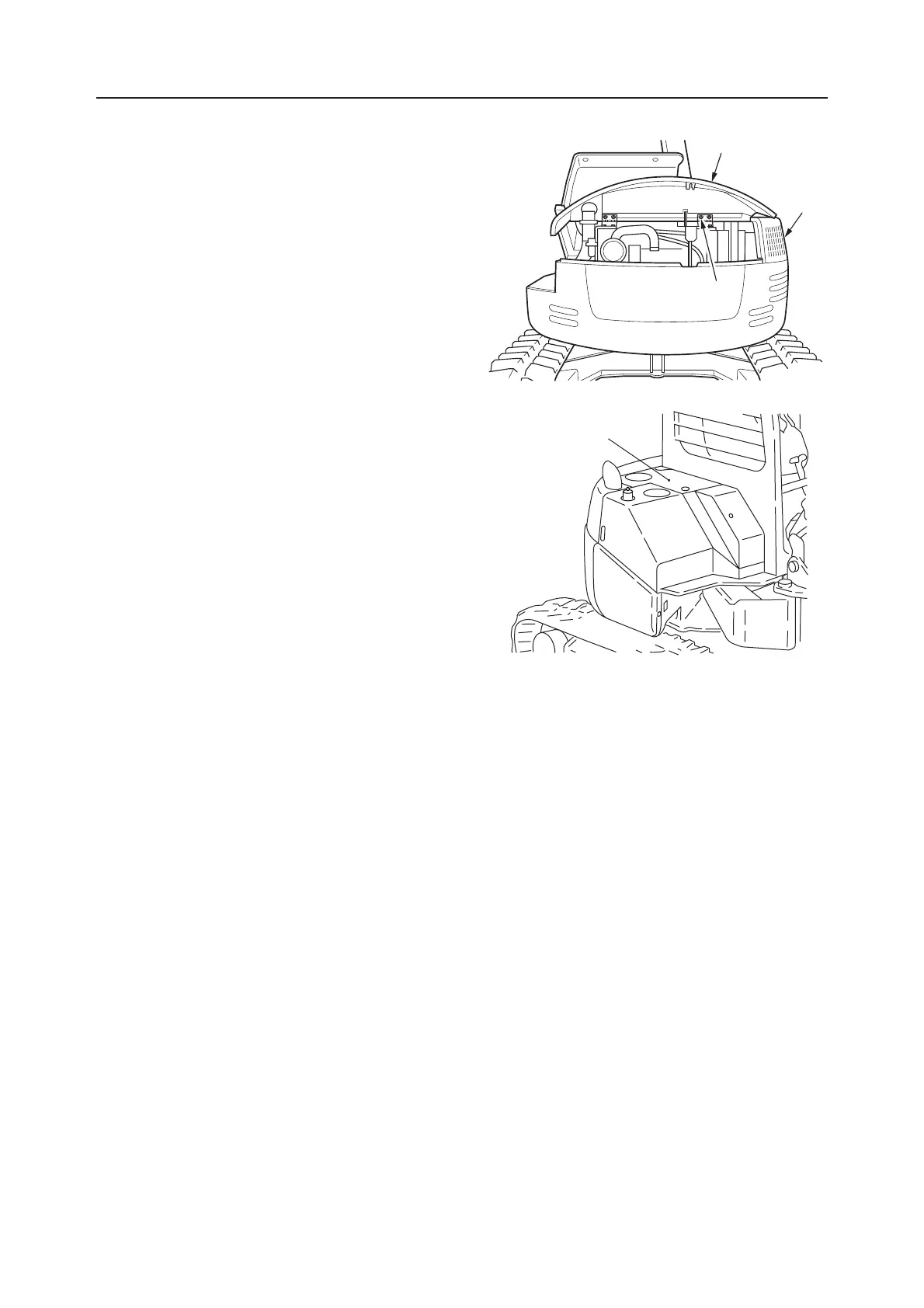

Removing the Covers
1. Remove the engine hood (1).
a. Open the engine hood and suspend it tempo-
rarily.
b. Remove the hinge fixing bolts (2).
2. Take out the 3 caps and the bolts and remove the
side cover (3).
3. Take out the 5 bolts and remove the center cover
(4).
Installing the Covers
Follow the same procedure as for removal in the
reverse order.
F4C409
1
3
2
J1C408
4
To Next Page
