Rugged Mini E1 | User’s Manual

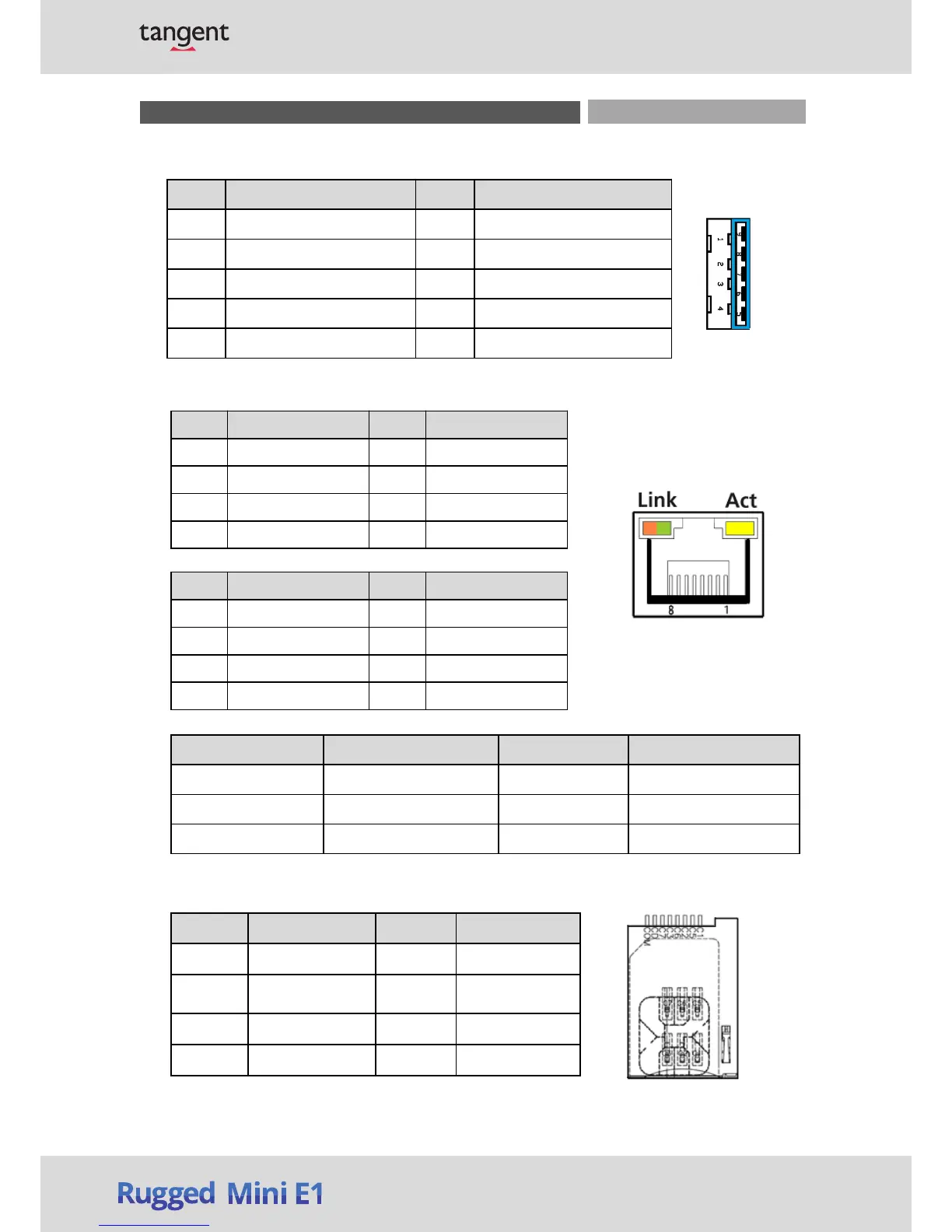

SIM1, SIM2：SIM Card Socket
Pin Definition Pin Definition
C1 UIM_PWR C6 UIM_VPP
C2 UIM_RESET C7 UIM_DATA
C3 UIM_CLK CD NC
C5 GND COM GND
USB3_1: USB 3.0 Connector, Type A
Pin Definition Pin Definition
1 +5V 6 USB3_RX+
2 USB2_DATA1- 7 GND
3 USB2_DATA1+ 8 USB3_TX-
4 GND 9 USB3_TX+
5 USB3_RX-
LAN1, LAN2: RJ45 with LEDs Port
Pin Definition Pin Definition
1 LAN1_MDI0P 5 LAN1_MDI2N
2 LAN1_MDI0N 6 LAN1_MDI1N
3 LAN1_MDI1P 7 LAN1_MDI3P
4 LAN1_MDI2P 8 LAN1_MDI3N
Pin Definition Pin Definition
1 LAN2_MDI0P 5 LAN2_MDI2N
2 LAN2_MDI0N 6 LAN2_MDI1N
3 LAN2_MDI1P 7 LAN2_MDI3P
4 LAN2_MDI2P 8 LAN2_MDI3N
Link LED Status Definition Act LED Status Definition
Steady Orange 1Gbps Network Link Blinking Yellow Data Activity
Steady Green 100Mbps Network Link Off No Activity
Off 10Mbps Network Link
Chapter 2: Switches and Connectors
