Rugged Mini E1 | User’s Manual

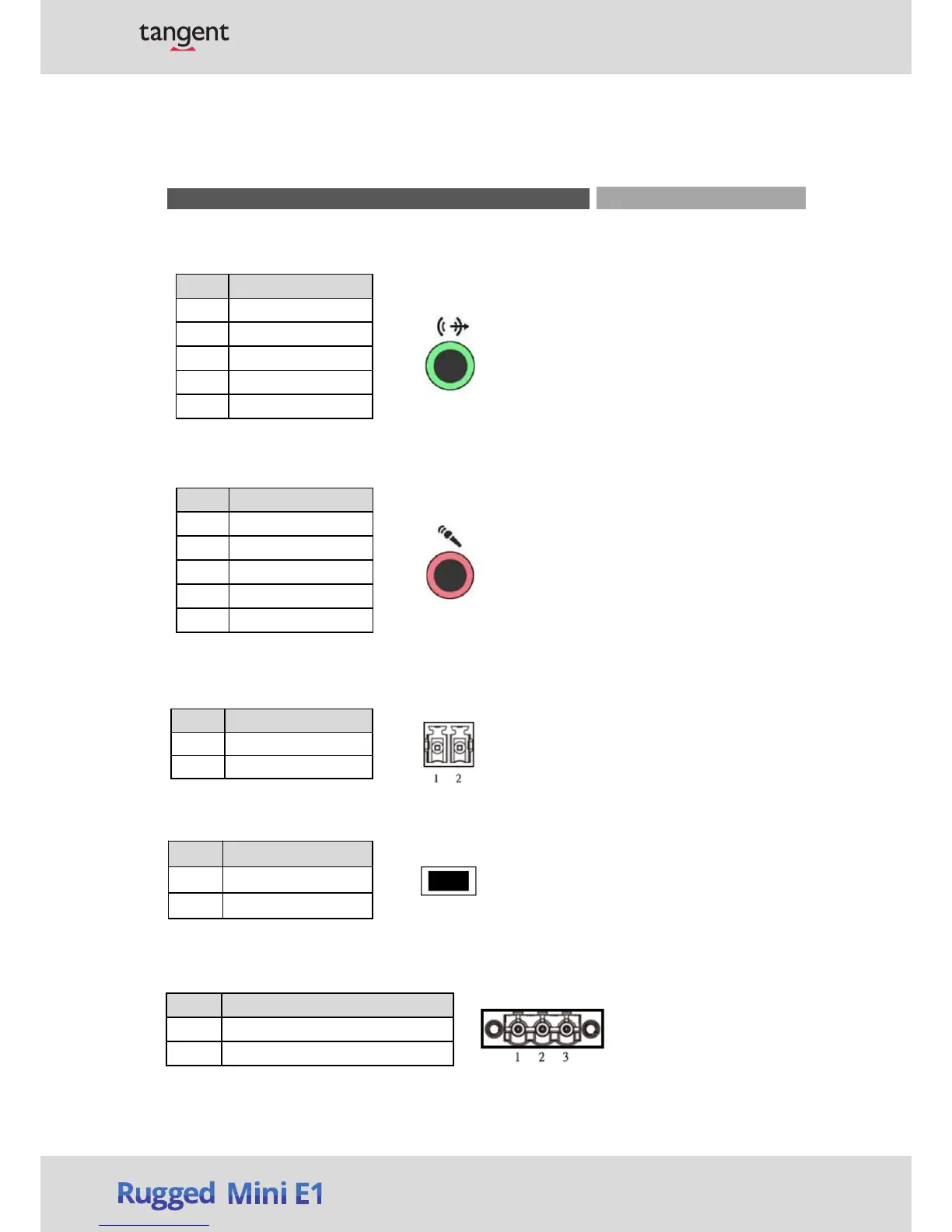

LINE_OUT1 : Line-out Jack (Green)
Connector Type: 5-pin Phone Jack
Pin Definition
1 GND
2 OUT_R
3 NC
4 GND
5 OUT_L
MIC_IN1: Microphone Jack (Pink)
Connector Type: 5-pin Phone Jack
Pin Definition
1 GND
2 MIC_R
3 NC
4 GND
5 MIC_L
PWR_SW2 : Remote Power Switch
Connector Type: Terminal Block 1X2 2-pin, 3.5mm pitch
Pin Definition
1 Power Button
2 GND
RESET1 : Reset Button
Pin Definition
1 RESET
2 GND
DC_IN1: DC Power Input Connector (+9~48V)
Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch
Pin Definition
1 +9~48VIN
3 GND
Chapter 2: Switches and Connectors
