Rugged Mini E1 | User’s Manual

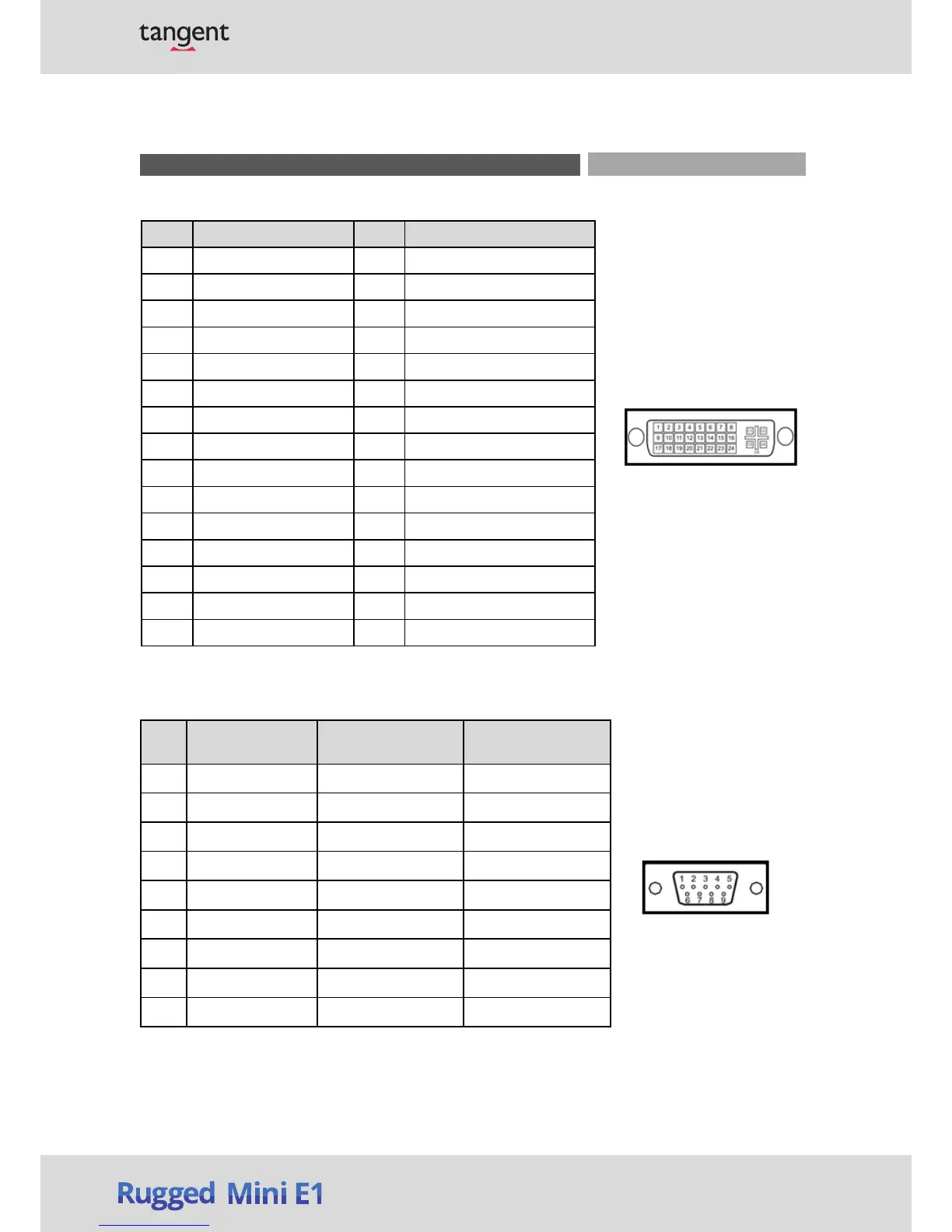

DVI_I1: DVI-I Connector
Pin Definition Pin Definition
1 DVI_TX2- 16 DVI Hot Plug Detect
2 DVI_TX2+ 17 DVI_TX0-
3 GND 18 DVI_TX0+
4 NC 19 GND
5 NC 20 NC
6 DDC_CLOCK 21 NC
7 DDC_DATA 22 GND
8 VGA VSYNC 23 DVI_TXCLK+
9 DVI_TX1- 24 DVI_TXCLK-
10 DVI_TX1+ C1 VGA_RED
11 GND C2 VGA_GREEN
12 NC C3 VGA_BLUE
13 NC C4 VGA_HSYNC
14 +5V C5 GND
15 GND
COM1_1: RS232 / RS422 / RS485 Connector
Connector Type: 9-pin D-Sub
Pin RS232 Definition
RS422 / 485 Full
Duplex Definition
RS485 Half Duplex
Definition
1 DCD1 TX1- DATA1-
2 RxD1 TX1+ DATA1+
3 TxD1 RX1+
4 DTR1 RX1-
5 GND
6 DSR1
7 RTS1
8 CTS1
9 RI1
Chapter 2: Switches and Connectors
19
