Rugged Mini E1 | User’s Manual

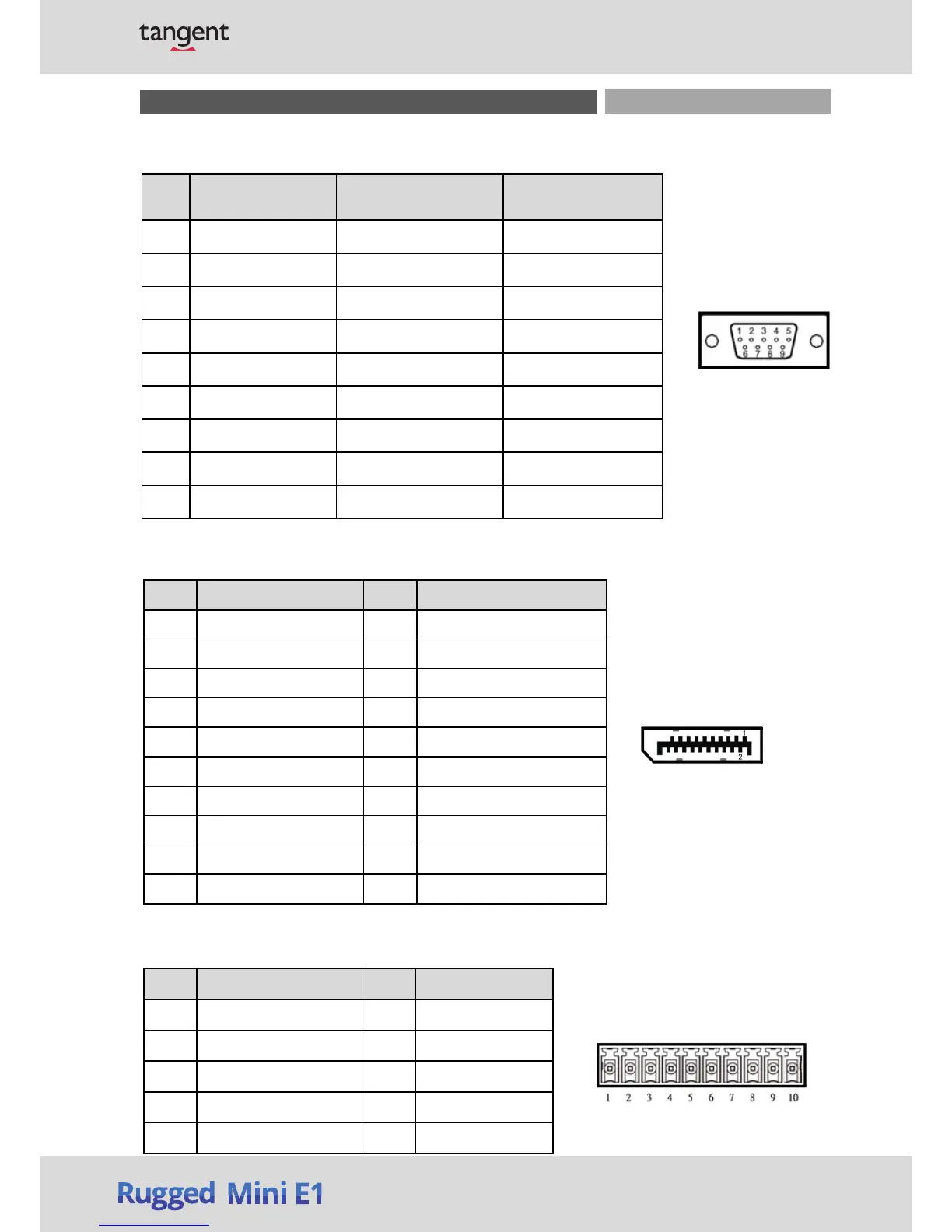

CN2: RS232 / RS422 / RS485 Connector
Connector Type: 9-pin D-Sub
Pin RS232 Definition
RS422 / 485 Full
Duplex Definition
RS485 Half Duplex
Definition
1 DCD4 (DCD6) TX4- (TX6-) DATA4- (DATA6-)
2 RxD4 (RxD6) TX4+ (TX6+) DATA4+ (DATA6+)
3 TxD4 (TxD6) RX4+ (RX6+)
4 DTR4 (DTR6) RX4- (RX6-)
5 GND
6 DSR4 (DSR6)
7 RTS4 (RTS6)
8 CTS4 (CTS6)
9 RI4 (RI6)
DIO1: Digital Input / Output Connector
Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch
Pin Definition Pin Definition
1 DC INPUT 6 DO1
2 DI1 7 DO2
3 DI2 8 DO3
4 DI3 9 DO4
5 DI4 10 GND
DP1: DisplayPort Connector
Pin Definition Pin Definition
1 DP_LANE0_P 11 GND
2 GND 12 DP_LANE3_N
3 DP_LANE0_N 13 GND
4 DP_LANE1_P 14 GND
5 GND 15 DP_AUX_P
6 DP_LANE1_N 16 GND
7 DP_LANE2_P 17 DP_AUX_N
8 GND 18 DP_HPD
9 DP_LANE2_N 19 GND
10 DP_LANE3_P 20 DP_PWR
Chapter 2: Switches and Connectors
21
