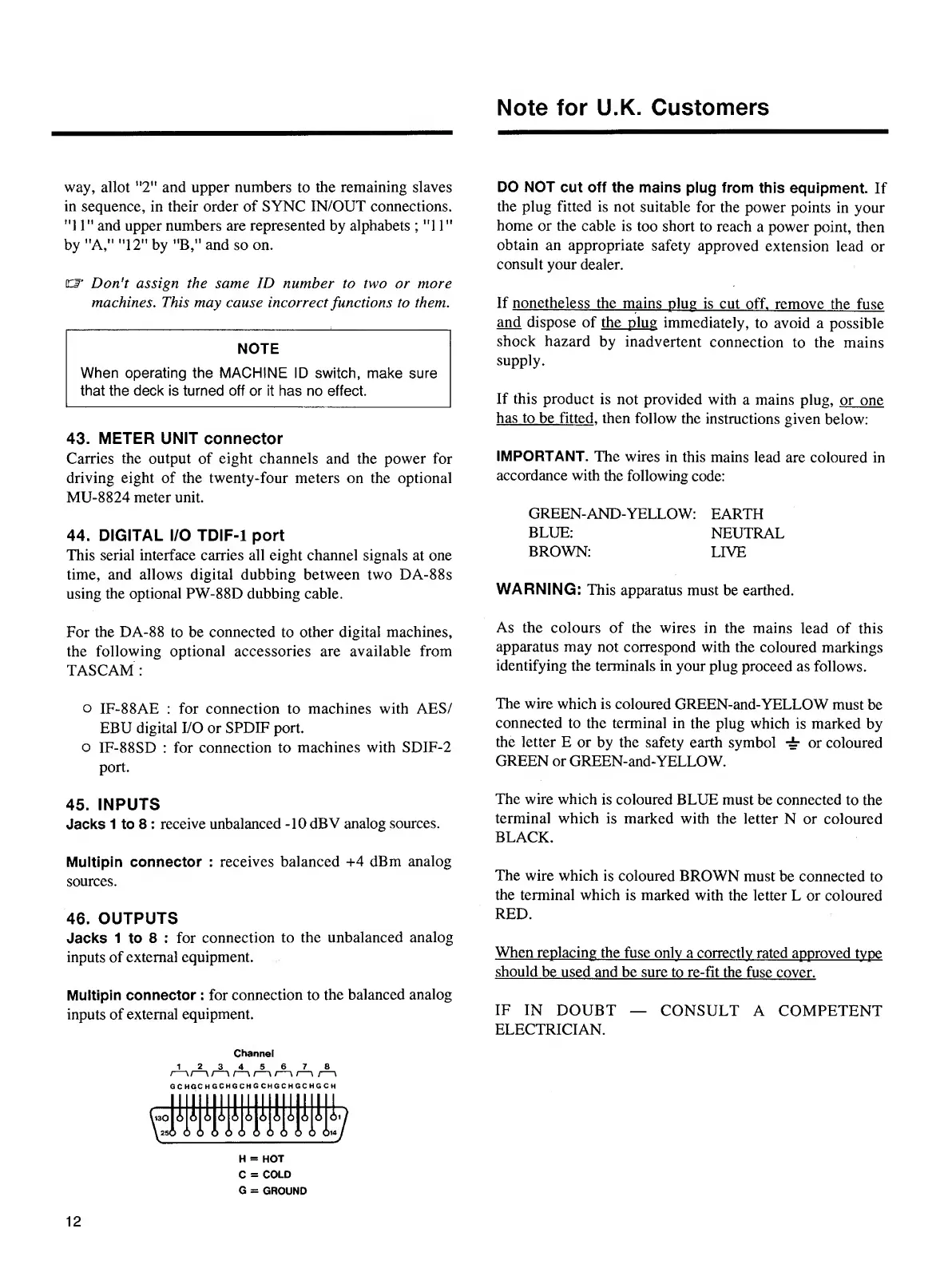

Tascam DA-88 - Note for U.K. Customers

Note for U.K. Customers
way, allot "2" and upper numbers to the remaining slaves
in sequence, in their order of SYNC IN/OUT connections.
"11" and upper numbers are represented by alphabets ; "11"
by "A," "12" by "B," and so on.
O’ Don't assign the same ID number to two or more
machines . This may cause incorrect functions to them.
NOTE
When operating the MACHINE ID switch, make sure
that the deck is turned off or it has no effect.
43. METER UNIT connector
Carries the output of eight channels and the power for
driving eight of the twenty-four meters on the optional
MU-8824 meter unit.
44. DIGITAL I/O TDIF-1 port
This serial interface carries all eight channel signals at one
time, and allows digital dubbing between two DA-88s
using the optional PW-88D dubbing cable.
For the DA-88 to be connected to other digital machines,
the following optional accessories are available from
TASCAM :
o IF-88AE : for connection to machines with AES/
EBU digital I/O or SPDIF port,
o IF-88SD : for connection to machines with SDIF-2
port.
45. INPUTS
Jacks 1 to 8 : receive unbalanced -10 dBV analog sources.
Multipin connector : receives balanced +4 dBm analog
sources.
46. OUTPUTS
Jacks 1 to 8 : for connection to the unbalanced analog
inputs of external equipment.
Multipin connector : for connection to the balanced analog
inputs of external equipment.
Channel
12345678
/—w—v/—\ r~\ i —\ /—i /—\ /—\
gchgchgchgchgchgchgchgch
H = HOT
C = COLD
G = GROUND
DO NOT cut off the mains plug from this equipment. If
the plug fitted is not suitable for the power points in your
home or the cable is too short to reach a power point, then
obtain an appropriate safety approved extension lead or
consult your dealer.
If nonetheless the mains plug is cut off, remove the fuse
and dispose of the plug immediately, to avoid a possible
shock hazard by inadvertent connection to the mains
supply.
If this product is not provided with a mains plug, or one
has to be fitted , then follow the instructions given below:
IMPORTANT. The wires in this mains lead are coloured in
accordance with the following code:
GREEN-AND-YELLOW: EARTH
BLUE: NEUTRAL
BROWN: LIVE
WARNING: This apparatus must be earthed.
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug proceed as follows.
The wire which is coloured GREEN-and-YELLOW must be
connected to the terminal in the plug which is marked by
the letter E or by the safety earth symbol or coloured
GREEN or GREEN-and-YELLOW.
The wire which is coloured BLUE must be connected to the
terminal which is marked with the letter N or coloured
BLACK.
The wire which is coloured BROWN must be connected to
the terminal which is marked with the letter L or coloured
RED.
When replacing the fuse only a correctly rated approved type
should be used and be sure to re-fit the fuse cover.
IF IN DOUBT — CONSULT A COMPETENT
ELECTRICIAN.
