10-14

Troubleshooting > Regular Maintenance

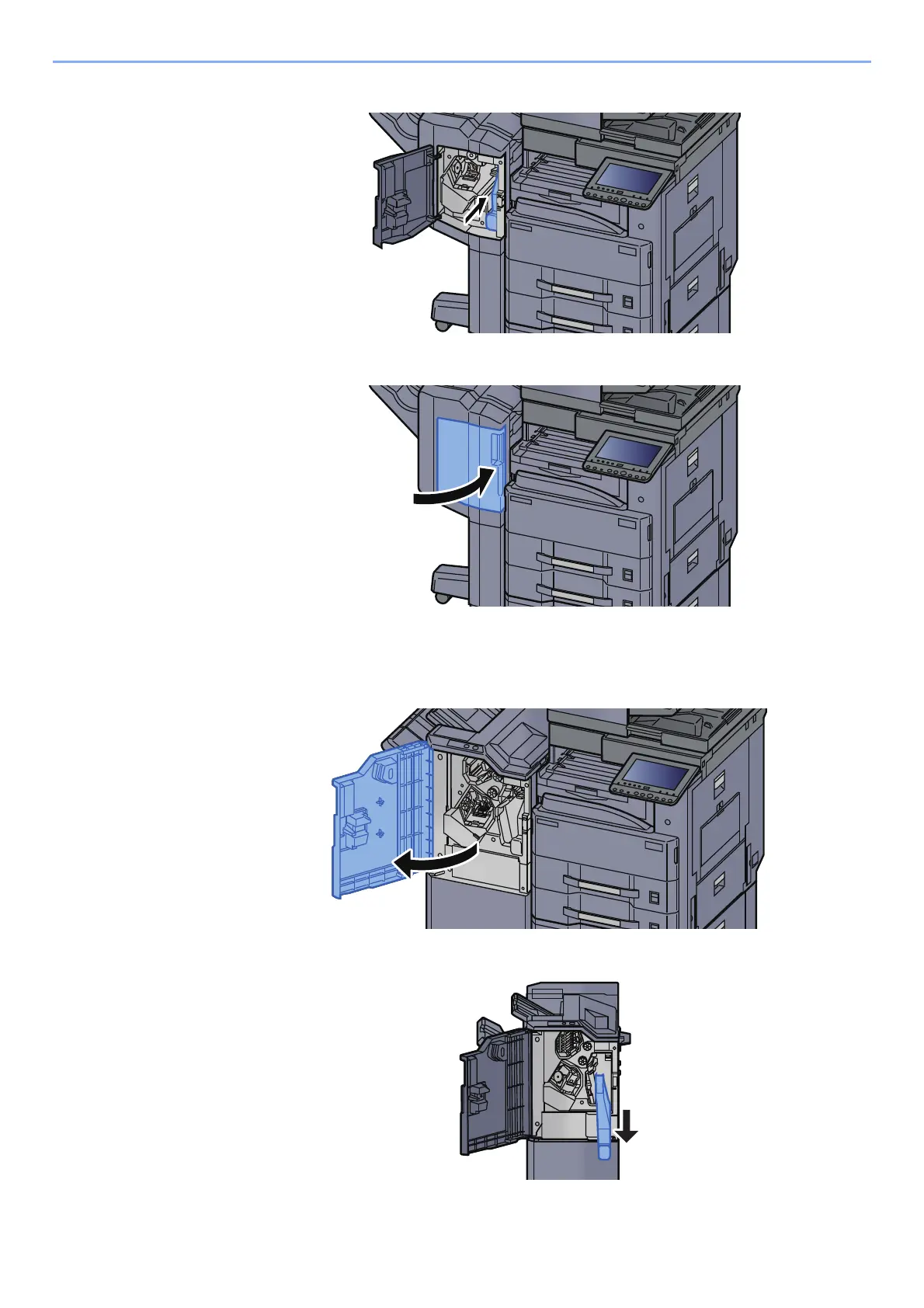

Install the Punch Waste Box.

Close the cover.

3,000-Sheet Finisher

Open the finisher front cover.

Remove the Punch Waste Box.
