TASKalfa 3011i - Page 496

To Next Page

To Previous Page

10-15

Troubleshooting > Regular Maintenance

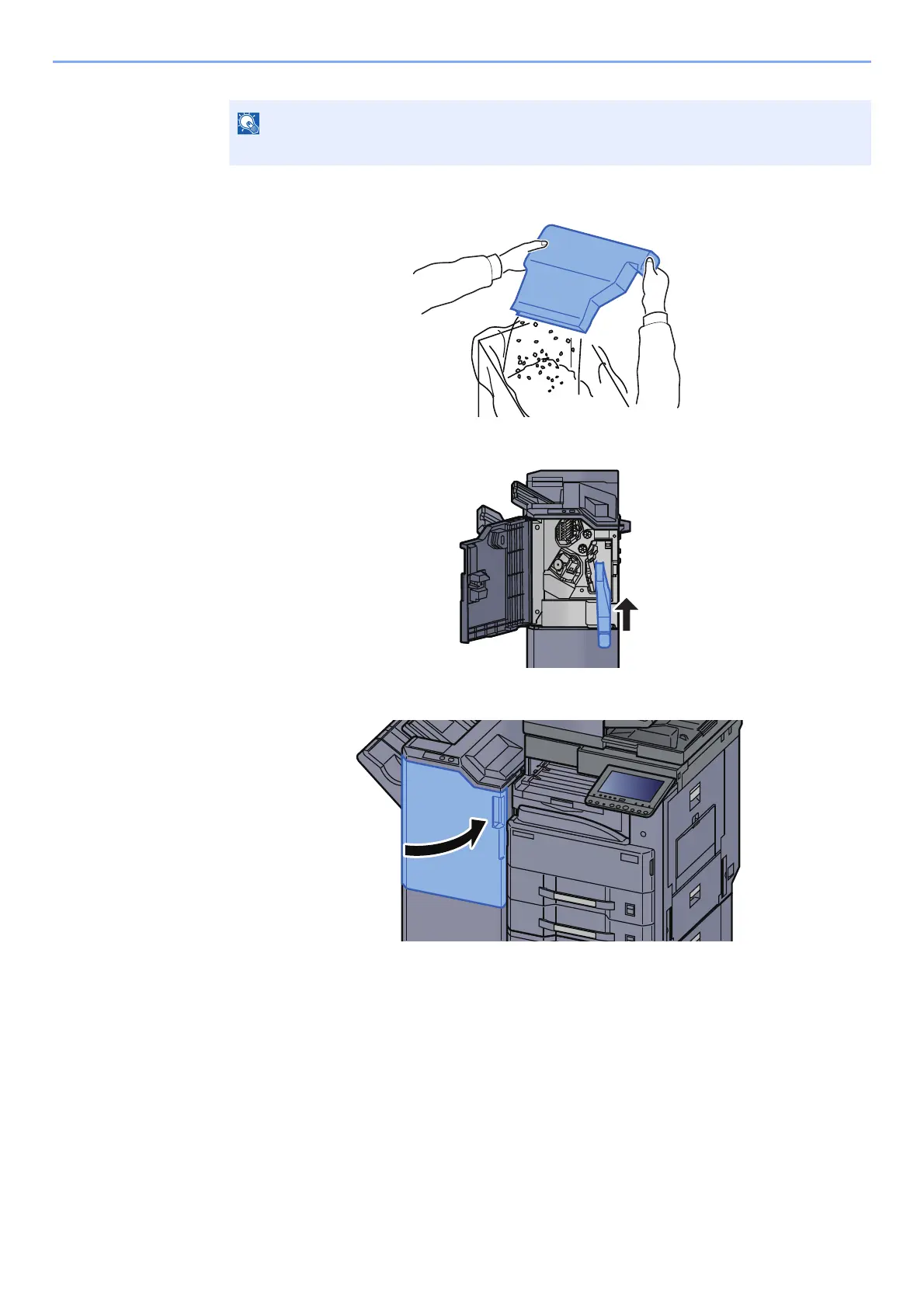

Empty the Punch Waste Box.

Install the Punch Waste Box.

Close the cover.

NOTE

Take care not to spill the waste hole punch scraps when removing the container.
