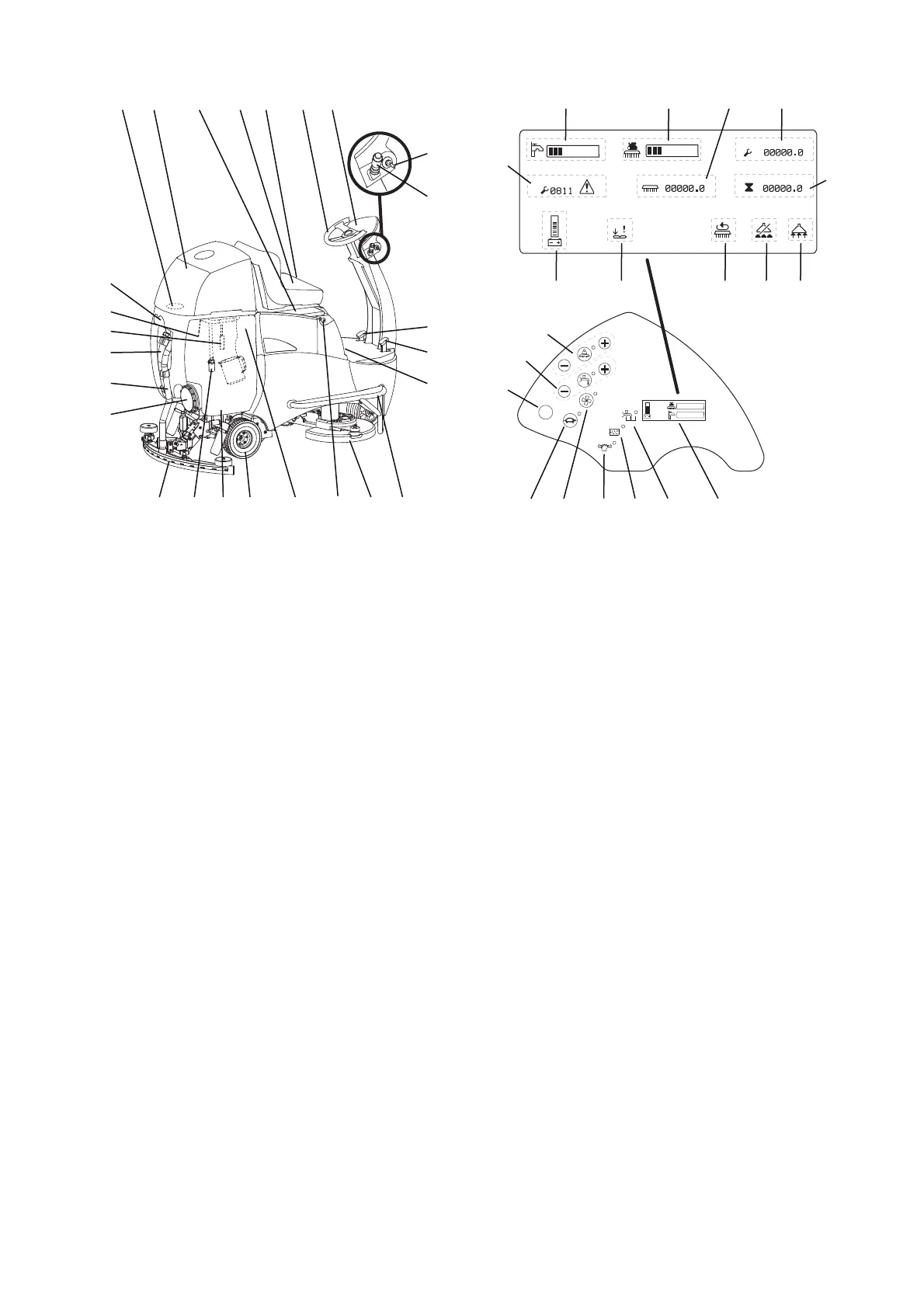

Structural layout
1 Nozzle / hose holder
2 Probe (recovery tank full)
3 Option: Recycling filter
4 Hose recovery tank
5 Suction hose
6 Tank cover
7 Suction nozzle
8 Clean intake
9 Recovery tank
10 Steered drive wheel rear
11 Fresh water tank (membrane bag) with dosing cup
12 Battery disconnection socket
13 Brush unit
14 Protection profile
15 Stopping brake
16 Gas pedal
17 Brake pedal
18 Travel direction lever for forward and reverse travel,
and horn
19 Key switch
20 Operating panel
21 Steering wheel
22 Driver seat adjustment
23 Driver seat with safety switch
24 Battery cover (main fuse and battery connector)
25 Tank cover
26 Suction filter
27 Brush drive button (ON/OFF), brush pressure but-
ton (+/-)
28 Cleaning solution supply button (ON/OFF), volume
button (+/-)
29 Display button
30 Slow approach button (ON/OFF)
31 Suction unit button (ON/OFF)
32 Service indicator
33 Recovery tank full display
34 Cleaning solution indicator
35 Display indicators during switch-on
36 Suction unit ON
37 Suction unit OFF (recovery tank full)
38 Brush unit ON
39 Gas pedal fault
40 Battery level indicator
41 Total hours
42 Service hours
43 Brush unit hours
44 Brush pressure (ON/OFF)
45 Cleaning solution (ON/OFF)
46 Error code
1
2
3
4
5
6
78
9 10 13 14
15
16
17
18
19
20
2122
23
242526
11 12
Display
36
42434445
41
37383940
28
27
29
30 31 32 33 34 35
46
