Taylor 104 Service Manual

14
Controls
Models 104 & 220
Controls
Model 104

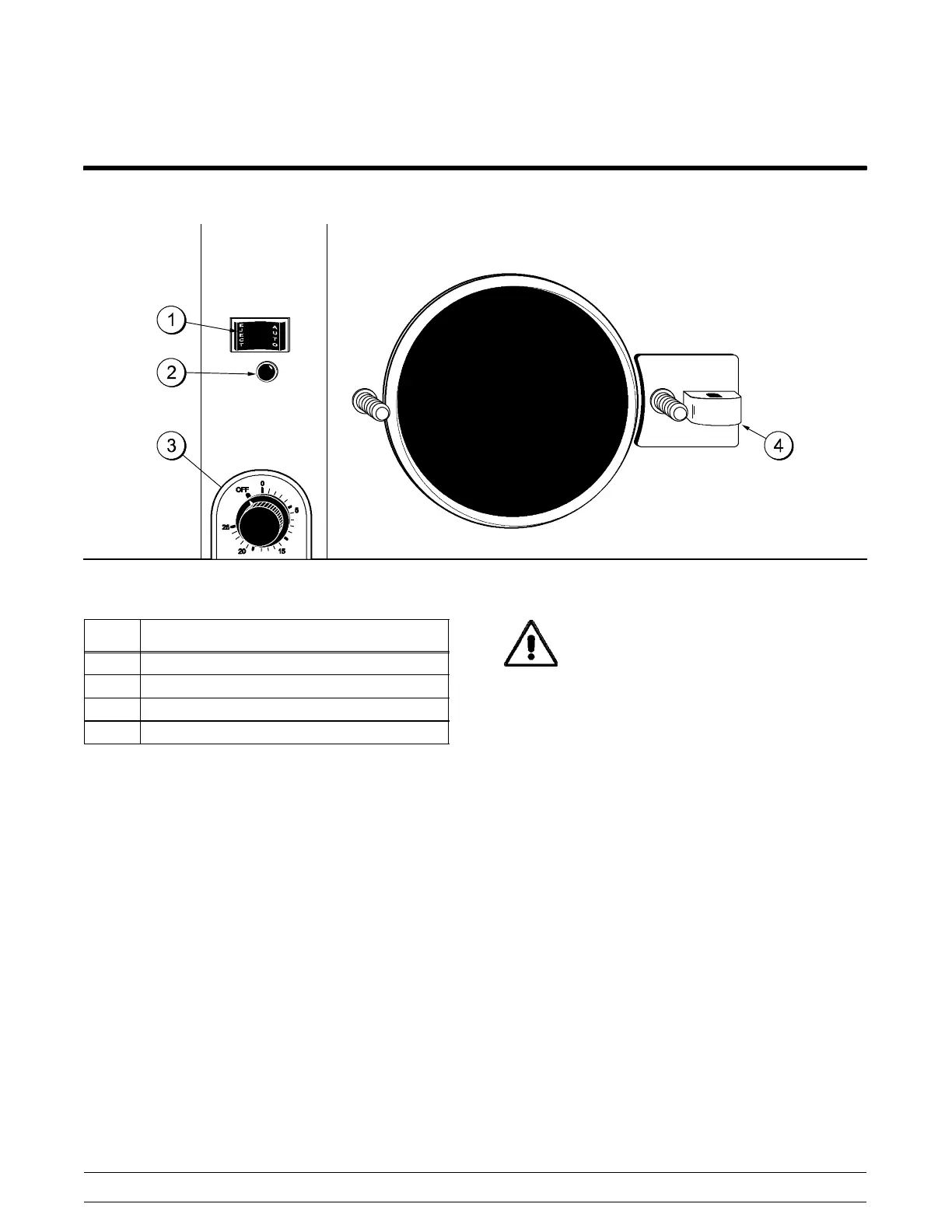

Figure 1
ITEM
DESCRIPTION
1 CONTROL SWITCH
2 ORANGE DIAL LIGHT
3 TIMER CONTROL
4 DOOR HINGE
Control Switch
When the control switch is placed in the AUTO mode
and the timer is adjusted to the desired setting, the
refrigeration system will operate. When the switch is
placed in the EJECT mode, only the beater motor will
operate.
Orange Dial Light
Locatedbelowthecontrolswitchisanorangediallight.
When the control switch is in the AUTO position, this
light will come on, indicating the refrigeration system
is operable when the timer is set.
Never empty the contents of the freezing
cylinder while the control switch is in the AUTO
position. Always put the control switch into theEJECT
position when drawing product from the freezing
cylinder. As an additional safety feature, this unit will
NOT operate if the door is open.
Timer Control
The Model 104 uses a timer control to operate the
compressor and determine the viscosity of the
product. After the desiredamount of product has been
added to the freezing cylinder, turn the timer for the
amount of refrigeration required for the batch. Due to
mix variations and desired finished product viscosity,
the timer setting will vary.
Oncethedesiredtimeisset,putthecontrolswitchinto
the AUTO position. Thecompressor and beatermotor
will operateuntil the time is up. When the timer setting
elapses, the refrigerating process is cancelled. The
dial light and beater assembly willcontinuetooperate.
A tone will sound, signaling the operator to dispense
the finished product. Turn the control switch to the
EJECT position. The product is ready to draw off and
serve.
