Models 150, 152, 162, 168 Operator Parts Identification
120501

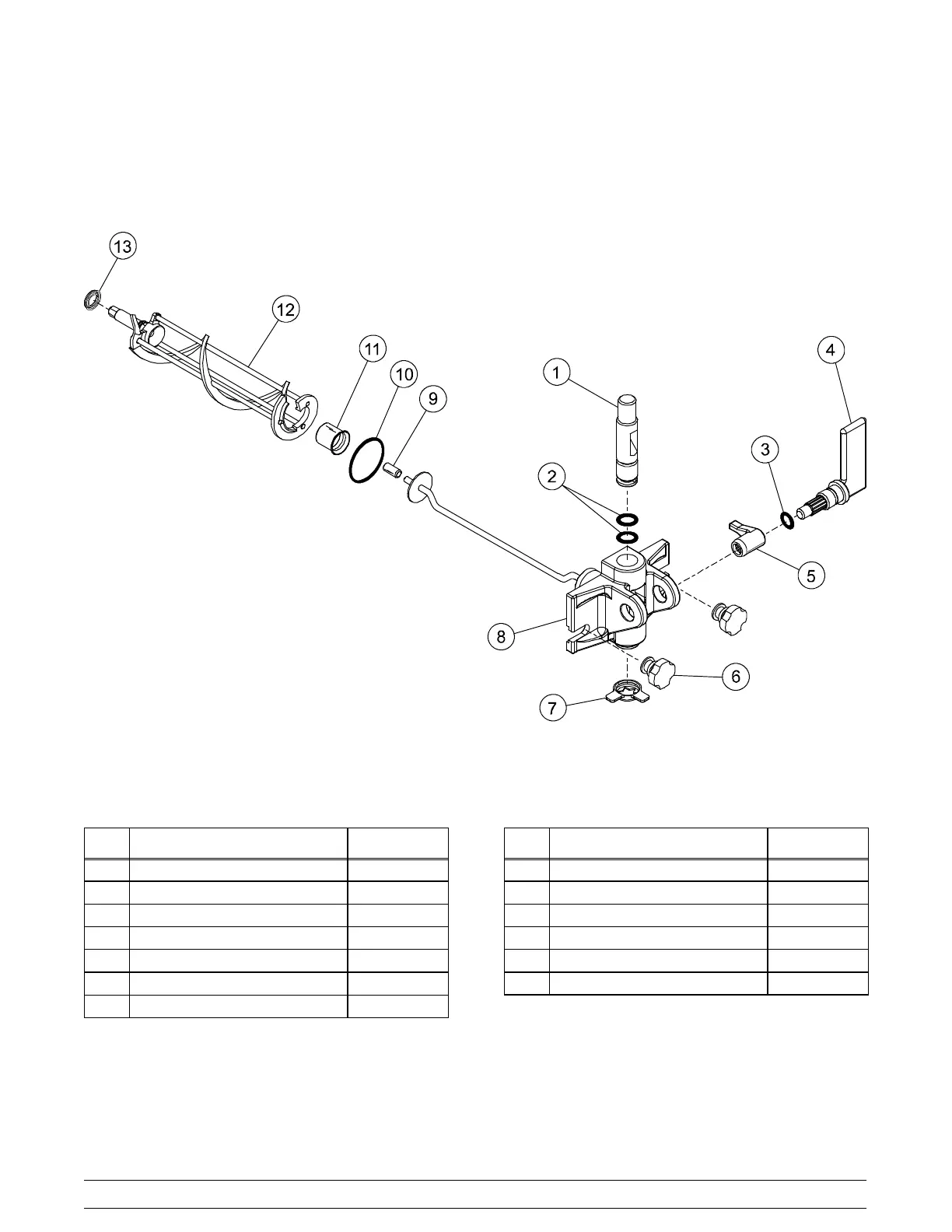

Models 150 & 152 Door Assembly
Figure 5
Item Description Part No.
1 Valve - Draw 024763
2 O- Ring- 7/8 OD x .103 W 014402
3 O- Ring- 3/4 OD x .103 W 015835
4 Handle - Draw 024762
5 Arm- Valve Lifter 024761
6 Nut - Stud 034829
7 Cap- Design 1.010” ID - 6 Point 014218
Item Description Part No.
8 Door A.- 1 Spout X38959 - SER
9 Bearing- Guide 014496
10 O - Ring - 2- 3/4 OD x .139 W 019998
11 Bearing- Front 023262
12 Beater A. X24689
13 Seal- U- Cup 080534
