TO THE INSTALLER
1-3
Mod
els 441 & 444
To the Installer
1
local codes.
• Supply cords used with this unit shall be
oil-resistant, sheathed flexible cable not lighter
than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(code designation 60245 IEC 57) installed with
the proper cord anchorage to relieve conductors
from strain, including twisting,
at the terminals
and protect the insulation of the conductors from
abrasion.
If the supply cord is damaged, it must be replaced by an
authorized Taylor service technician in order to avoid a
hazard.
Checks
Once the unit is installed, it is advisable to check the
following controls and mechanical operations of the
freezer and to make any necessary adjustments. If
applicable, repeat these checks for the second freezing
cylinder on double-head units.
Controls
Place the control switch in the AUTO position. The main
refrigeration system will operate (compressor, beater
motor, and the condenser fan). The dial light and the mix
low indicator will be illuminated.

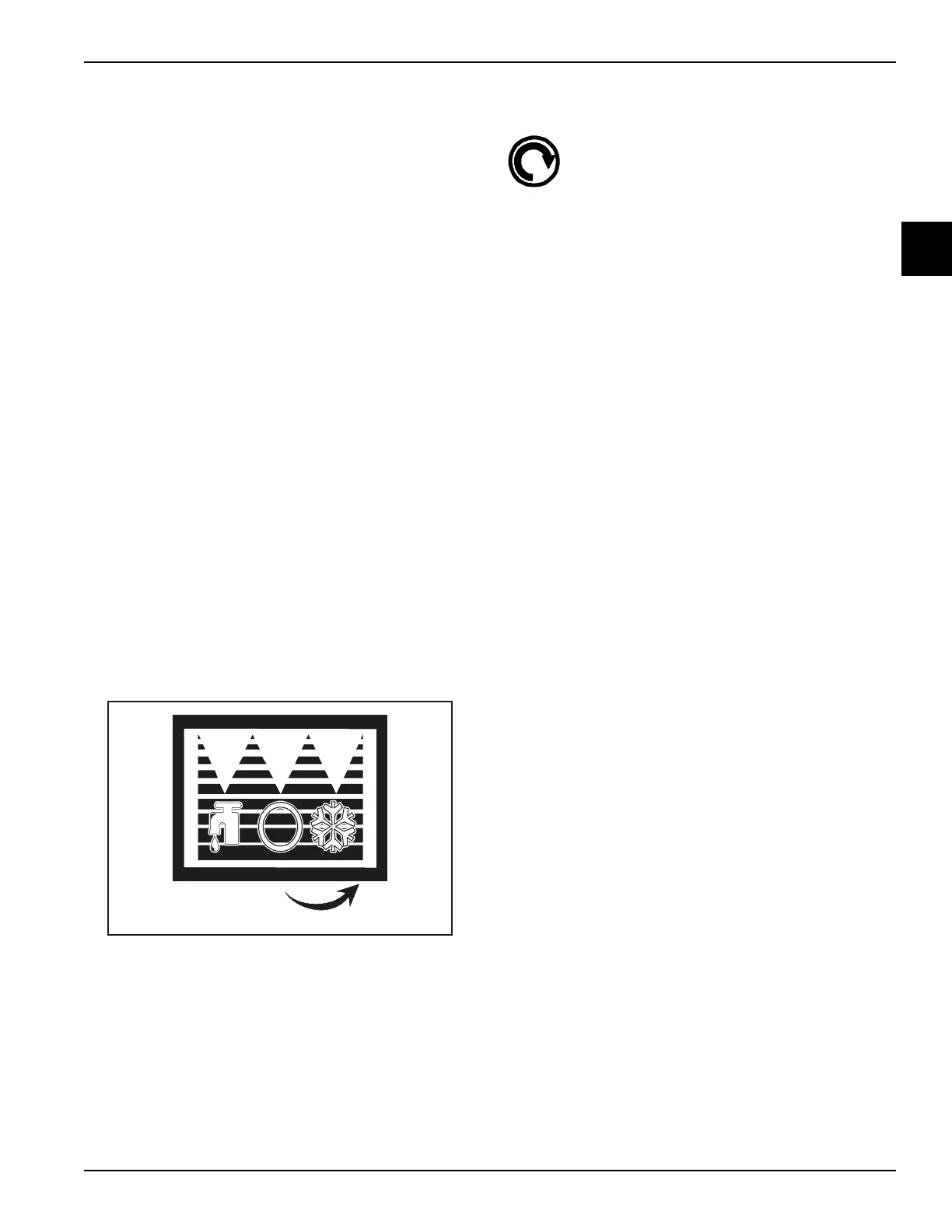

Figure 1-1
If the freezer is water cooled, the
automatic water valve
will begin to open, and cold water will flow into the
condenser. This will remove heat from the refrigerant. As
the water flows into the open trap drain, it should be
warm to the touch. Place the control switch in the OFF
position.
Beater Rotation
NOTICE! Beater rotation must be clockwise as
viewed looking into the freezing cylinder.
To correct the rotation on a three-phase unit, interchange
any two incomin
g power supply lines at the freezer main
terminal block only. To correct rotation on a single-phase
unit, exchange leads inside the beater motor. (Follow the
diagram printed on the motor.)
Electrical connections are made directly
to t
he terminal
block provided in the main control box located behind the
service panel.
It is recommended that beater rotation be performed by
an
a
uthorized Taylor service technician.
