OPERATOR PARTS IDENTIFICATION
4-5
087482-M
Operator Parts Identification
4

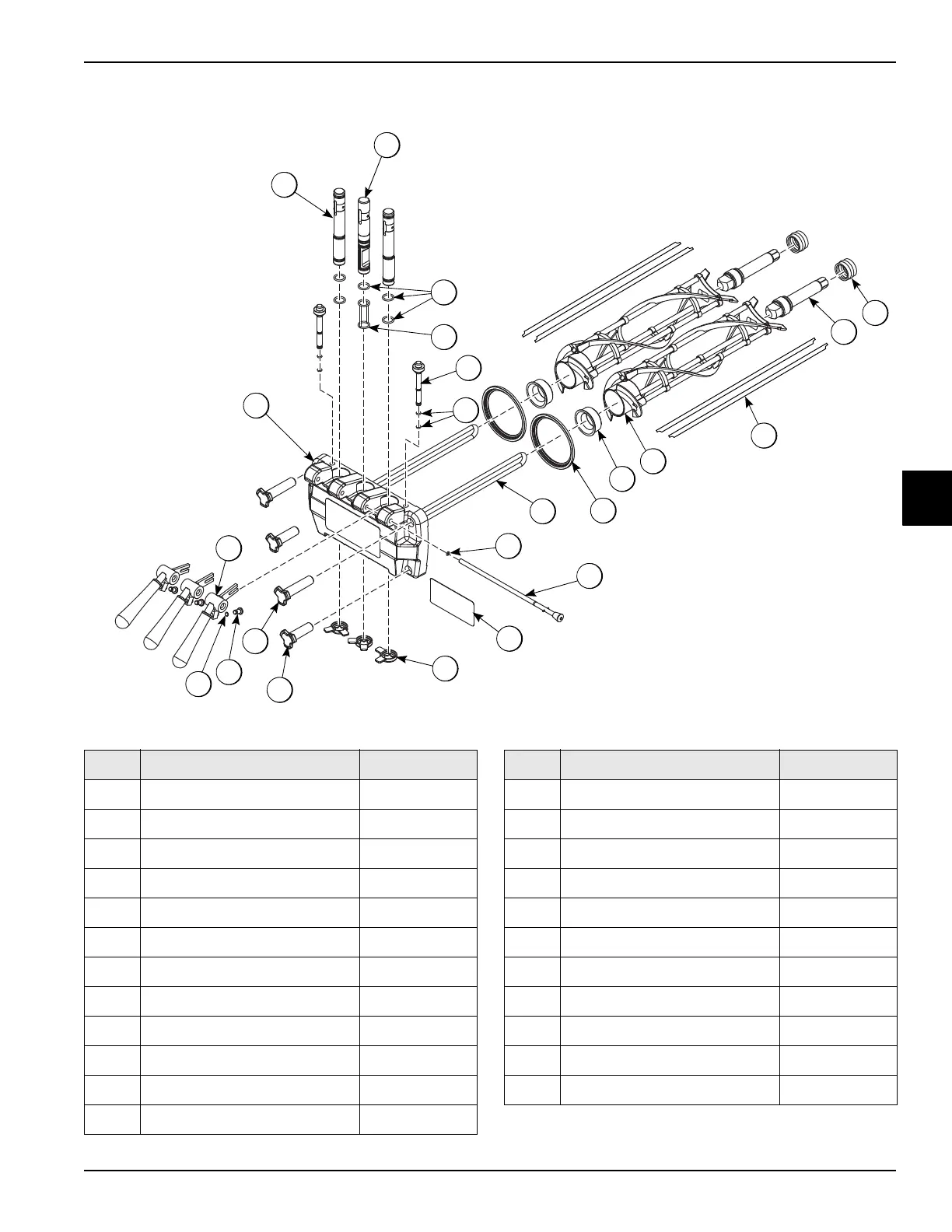

Beater Door Assembly
Figure 4-3
1
16
13
18
17
2
3
5
6
4
19a
7
9
10
8
19
20b
20
20a
11
12
15
30221_A
14
Item Description Part No.
1 Valve A.- Draw X69539-SP
2 Valve A.- Draw X84411-SP
3 O-ring-7/8 OD X .0103W-SIL 083693
4 Seal- Draw Valve 034698
5 Plug- Prime 028805-SP1
6 O-ring- 3/8 OD X .070W 016137
7 Gasket-Door HT 4 in. 048926
8 Bearing-Front 050216
9 Beater A.- Helicore X31761
10 Blade-Scraper 035174
11 Shaft-Beater 032564
12 Seal-Drive Shaft 032560
Item Description Part No
13 Rod A.- Pivot X20683
14 O-ring 5/16 OD x .070 W 016272
15 Decal-Door-3 Spout-Twin Twis 062239
16 Cap-Design 1.010"ID-6 PT. 014218
17 Nut-Stud-Black 2.563 Long 058764
18 Nut-Stud-Black 3.250 Long 058765
19 Door A.-3SPT*LGBAF*Black X49461-52S
19a Baffle A.-Long 4 in. X50882
20 Handle A-Draw-Black X81010-SP1
20a Screw-Adjustmt-5/16-24 056332
20b O-ring-1/4 OD X .070W 50 015872
