McDonald's Intelligap Grills
Parts
Control A.- Switch - X73393 (C845)

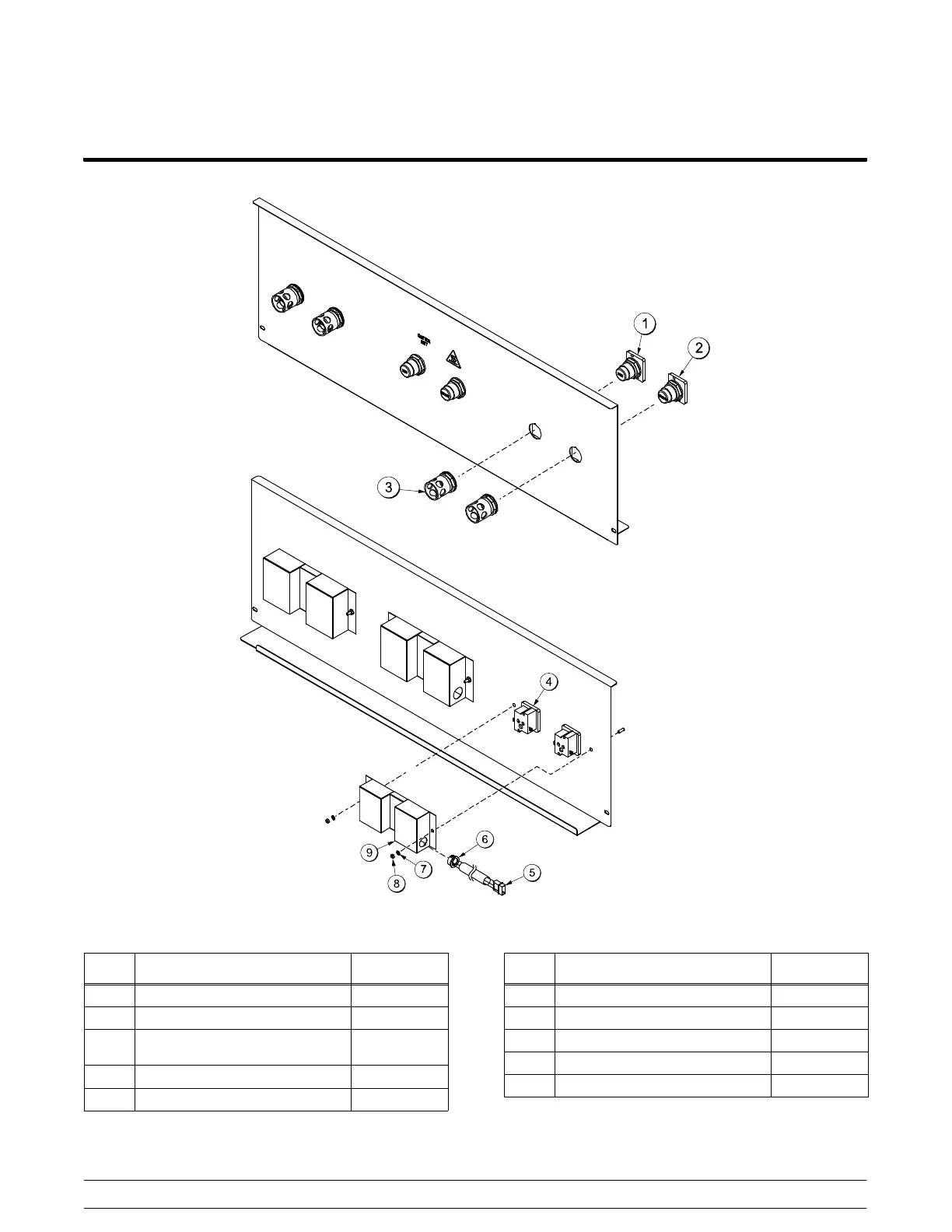

Figure 78
ITEM DESCRIPTION PART NO.
1 BUTTON-OPERATOR-RED 076011
2 BUTTON-OPERATOR-BLACK 076012
3 GUARD-LENSE (USED ON
50 HZ UNITS, ONLY)
075288
4 BLOCK-CONTACT 076013
5 CONNECTOR-MATE LOCK-3 044823
ITEM DESCRIPTION PART NO.
6 BUSHING-SNAP 11/16 ID X 7/8 010548
7 WASHER-#8 EXT TOOTH LOC 000964
8 NUT-8-32 HEX M/S NUT SMA 000969
9 PANEL A.-SWITCH X73394
* LABEL-CONTROL PANEL INTL 075699SYM3
*NOT SHOWN - USED ON 50 HZ UNITS, ONLY
