McDonald's Intelligap Grills
Parts
111129

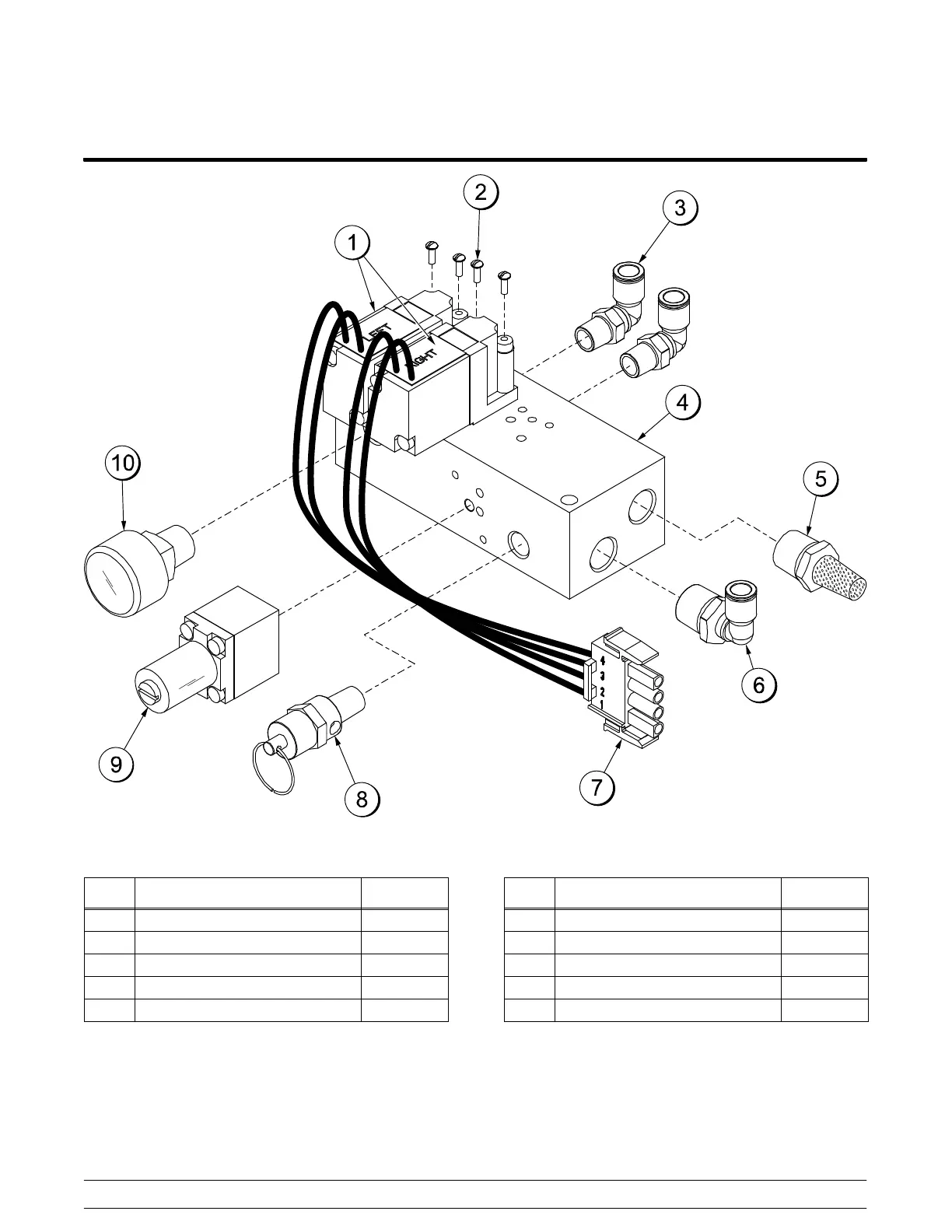

Manifold Assembly - 073129 (C832/C834/C835)
Figure 89
ITEM DESCRIPTION PART NO.
1 VALVE-SOLENOID 3 WAY 12 073129-1
2 SCREW-3M X 0.5 073129-10
3 FITTING-SWIVEL ELBOW 1/4 073129-5
4 BLOCK-MANIFOLD .03 ORIFICE 073129-7
5 FITTING-DIFFUSER 1/4 MPT 073129-8
ITEM DESCRIPTION PART NO.
6 FITTING-SWIVEL ELBOW 1/4 073129-6
7 CONNECTOR-MATE LOCK 4 500534
8 VALVE-PRESSURE RELIEF 70B 073129-4
9 REGULATOR-PRESSURE 0-120 073129-2
10 GAUGE 130-PSI 1/8 MPT 073129-3
