Parts
McDonald's Intelligap Grills

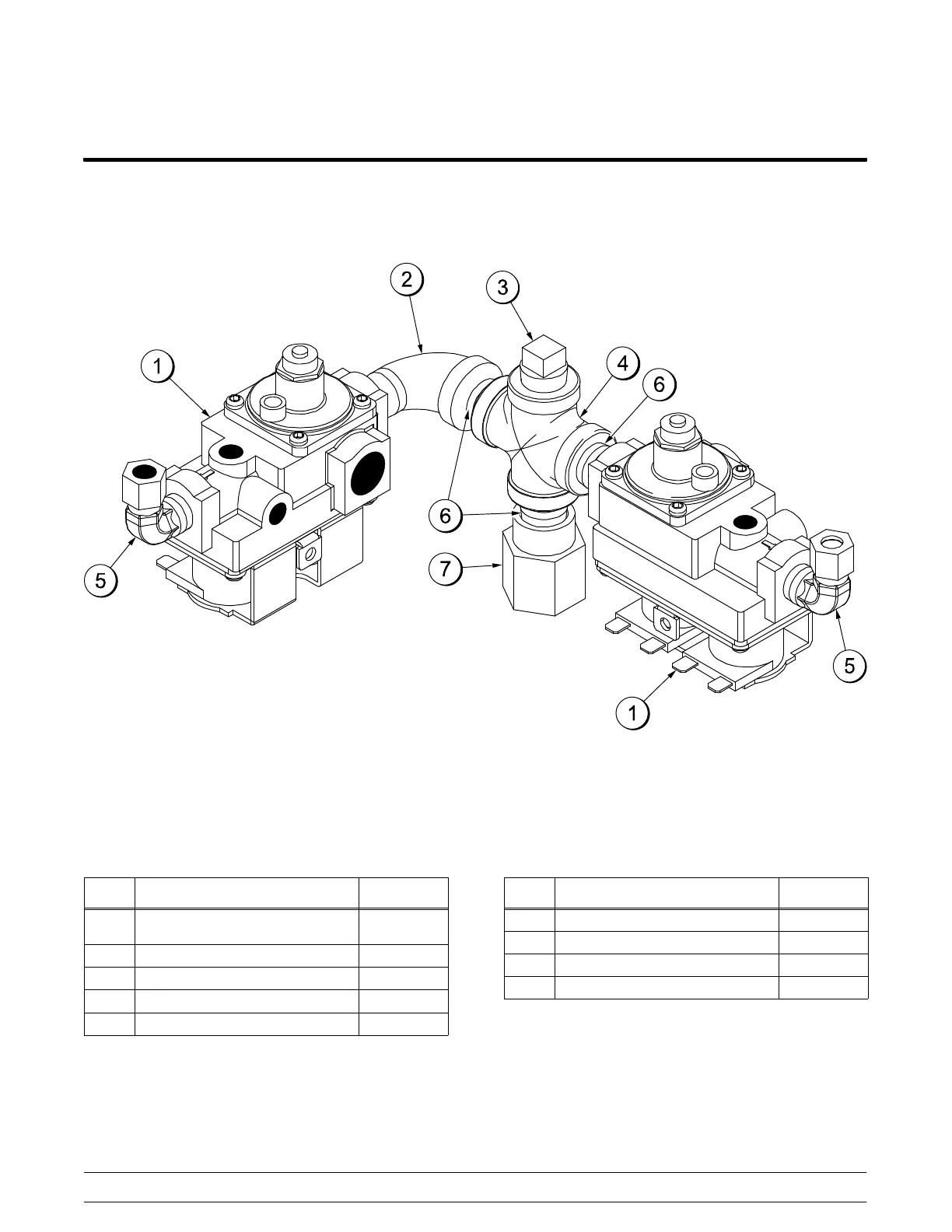

Manifold Assembly - X79373-02 (C835)
Figure 92
ITEM DESCRIPTION PART NO.
1 VALVE-GAS REDUNDANT 3-1/2
WC
079329-02
2 ELBOW-3/8MPTX3/8FPT-BLACK 078890
3 PLUG-3/8MPT-BLACK 078907
4 FITTING-CROSS 3/8FPT-BLACK 078906
5 ELBOW-3/8 MPT X 5/16 076370
ITEM DESCRIPTION PART NO.
6 NIPPLE-3/8 MPT CLOSE BLK 076343
7 FITTING-REDUCER-1/2FPT-3/8 077364
*8 HARNESS A.-GAS VALVE X79357
*9 HARNESS A.-GAS VALVE X79357-22
*NOT SHOWN
