Taylor Intelli Gap User Manual

83
McDonald's Intelligap Grills
Troubleshooting

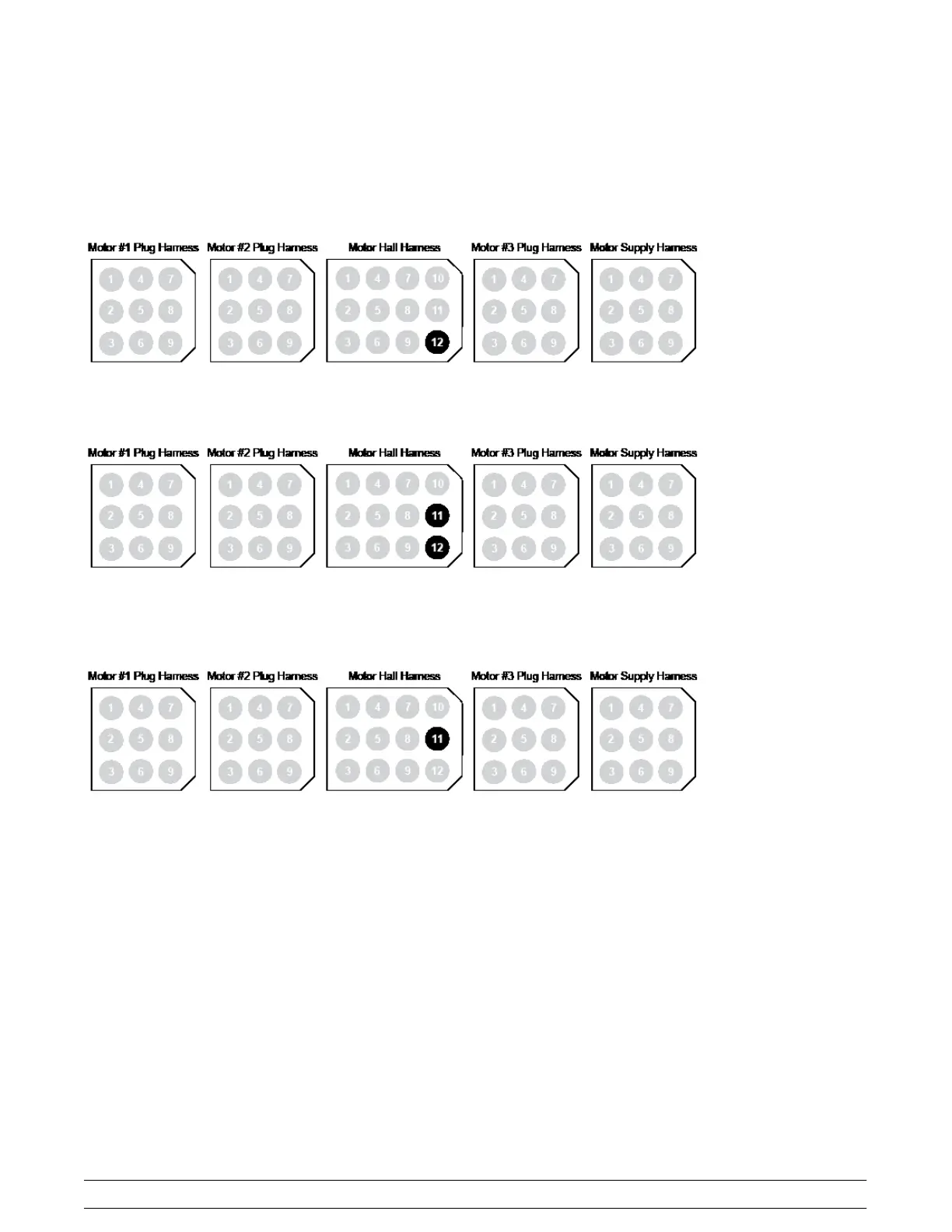

Test 3: Motor Hall Harness Ground Check
IMPORTANT! Verify that the interlock switch is ON and the 12 pin harness is plugged in.
Step 1
On the motor hall harness (12 pin) check pin 12 (red) for 12 VDC to ground.
Step 2
On the motor hall harness (12 pin) check pin 12 (red) for 12 VDC to pin 11 (black).
Step 3
On the motor hall harness (12 pin) check pin 11 (black) for 0 VDC to ground. If the reading is not 0 VDC, check
all earth to ground connections.
