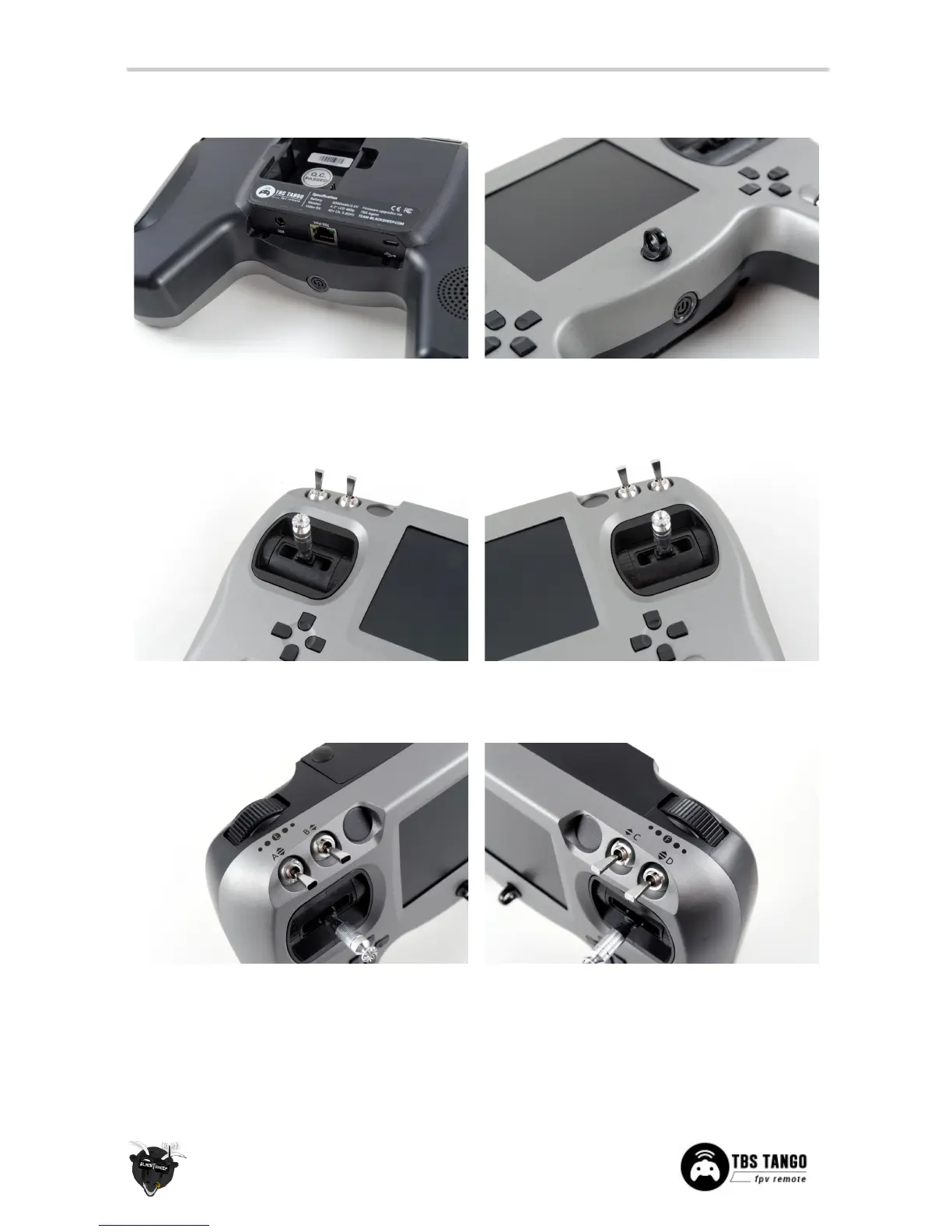

JR-module slot, DSC, micro-USB, TBS-port (for
goggles), power button and speaker
Display and neck-strap connector
Left gimbal for throttle and yaw, and digital pad for
trims
Right gimbal for aileron and elevator, and digital
pad for trims
Three-position (A/L2), two-position (B/L1) switch,
spring-loaded dial (SW E) and video receiver bay
Two-position (C/R1) switch, three-position (D/R2)
switch and spring-loaded (SW F) dial
