TCL TAC-09CHSA/XA71

Air Conditioner Service Manual
18

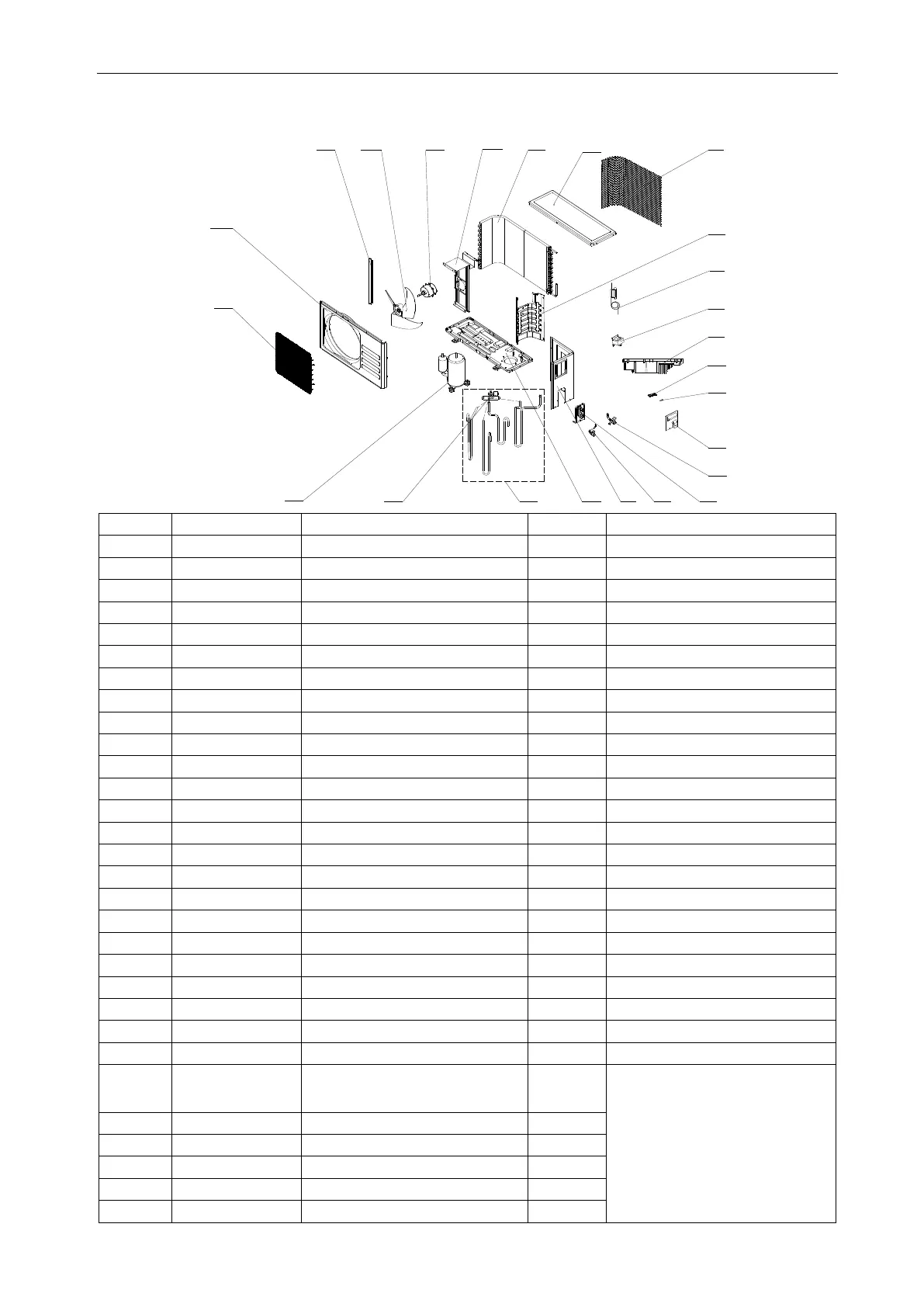

Outdoor Unit- TAC-09CHSA/XA71 INVERTER
10
11
12
8
9
7
6
5
17
13
14
16
15
18
4
3
2
1
24
23
22
21
20
19
No.
Part No.
Part Name
Q’ty
Remark
1
1071990039
Back Grille
1
2
210800539
Top Cover
1
3
211202396AC
Condenser
1
4
1080050004
Outdoor Motor Supporter
1
5
1170040058H
Outdoor Motor
1
6
1070030060
Propeller Fan
1
7
1080050001
Left Grille Supporter
1
8
210800537
Front Plate
1
9
210754635
Fan Guard
1
10
211206855
Compressor
1
11
1120110016H
4-way Valve
1
12
211232688A
4-way Valve Assembly
1
13
210800545
Base
1
14
210800541
Right Plate
1
15
1120120021
Two-way Valve
1
16
1080050003
Valve Supporter
1
17
211206766
Three-way Valve
1
18
1070350971
Electrical Box Cover
1
19
1070040003
Cable Clamp
1
20
1170200061
Terminal
1
21
210901774G
Outdoor PCB Assembly
1
22
210901769
Inductor
1
23
211242312
Capillary Assembly
1
24
1080050119
Partition plate
1
25
1170230007E
Pipe Temp. sensor and
outdoor Temp. sensor
1
Not shown in Explosion view
26
1170230006A
Discharge Temp. sensor
1
27
211369052
Base Carton
1
28
211311098ATS
Cabinet Carton
1
29
211311099
Base Foaming
1
30
211311100
Cover Forming
1
