TCL TAC-09CHSA/XA71

Air Conditioner Service Manual
19

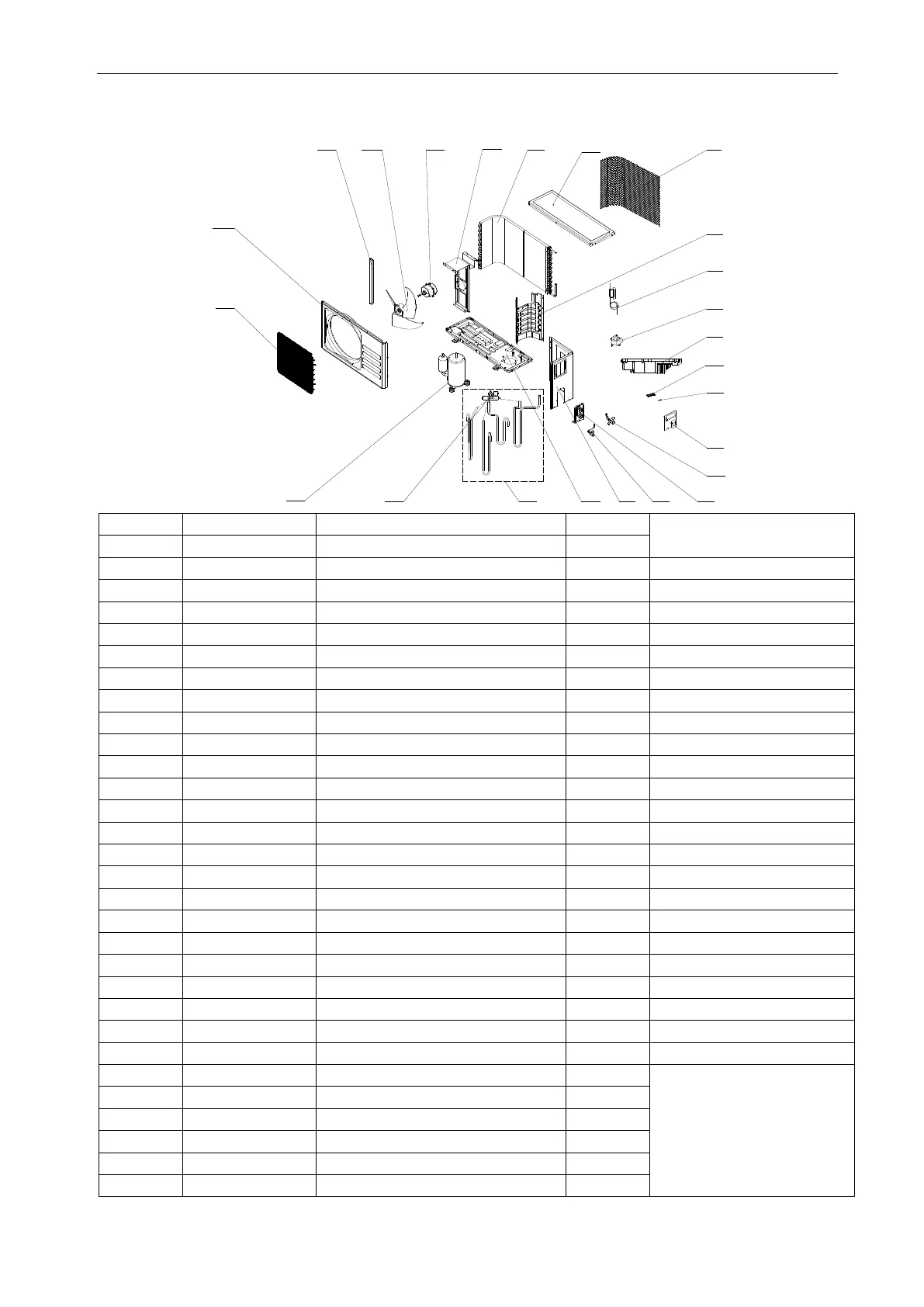

Outdoor Unit- TAC-12CHSA/XA71 INVERTER
10
11
12
8
9
7
6
5
17
13
14
16
15
18
4
3
2
1
24
23
22
21
20
19
No.
Part No.
Part Name
Q’ty
Remark
1
1071990039
Grille
1
2
1080320105
Top cover
1
3
211202396AC
Condenser
1
4
1080050004
Outdoor motor supporter
1
5
1170040058H
Outdoor motor
1
6
1070030050AA
Propeller fan
1
7
1080050001
Left grille supporter
1
8
210800274
Front plate
1
9
1070251931
Fan guard
1
10
211206855
Compressor and accessories
1
11
1120110016H
4-way valve
1
12
211232688A
4-way valve assembly
1
13
210800466
Base
1
14
1080050002
Right plate
1
15
1120120021
Two-way valve
1
16
1080050003
Valve supporter
1
17
211206766
Three-way valve
1
18
1070350971
Electronic Box Cover
1
19
1070040008
Cable clamp
1
20
1170200061
Terminal
1
21
210901774
Outdoor PCB Assembly
1
22
210901769
Inductor
1
23
211242312
Capillary assembly
1
24
1080050119
Partition plate
1
25
1170230007E
Pipe Temp. sensor and outdoor
Temp. sensor
1
Not shown in explosion
view
26
1170230006A
Discharge Temp. sensor
1
27
211369052
Base carton
1
28
211311098ATT
Cabinet carton
1
29
211311099
Base foaming
1
30
211311100
Cover foaming
1
