TCL TAC-09CHSA/XA71

Air Conditioner Service Manual
20

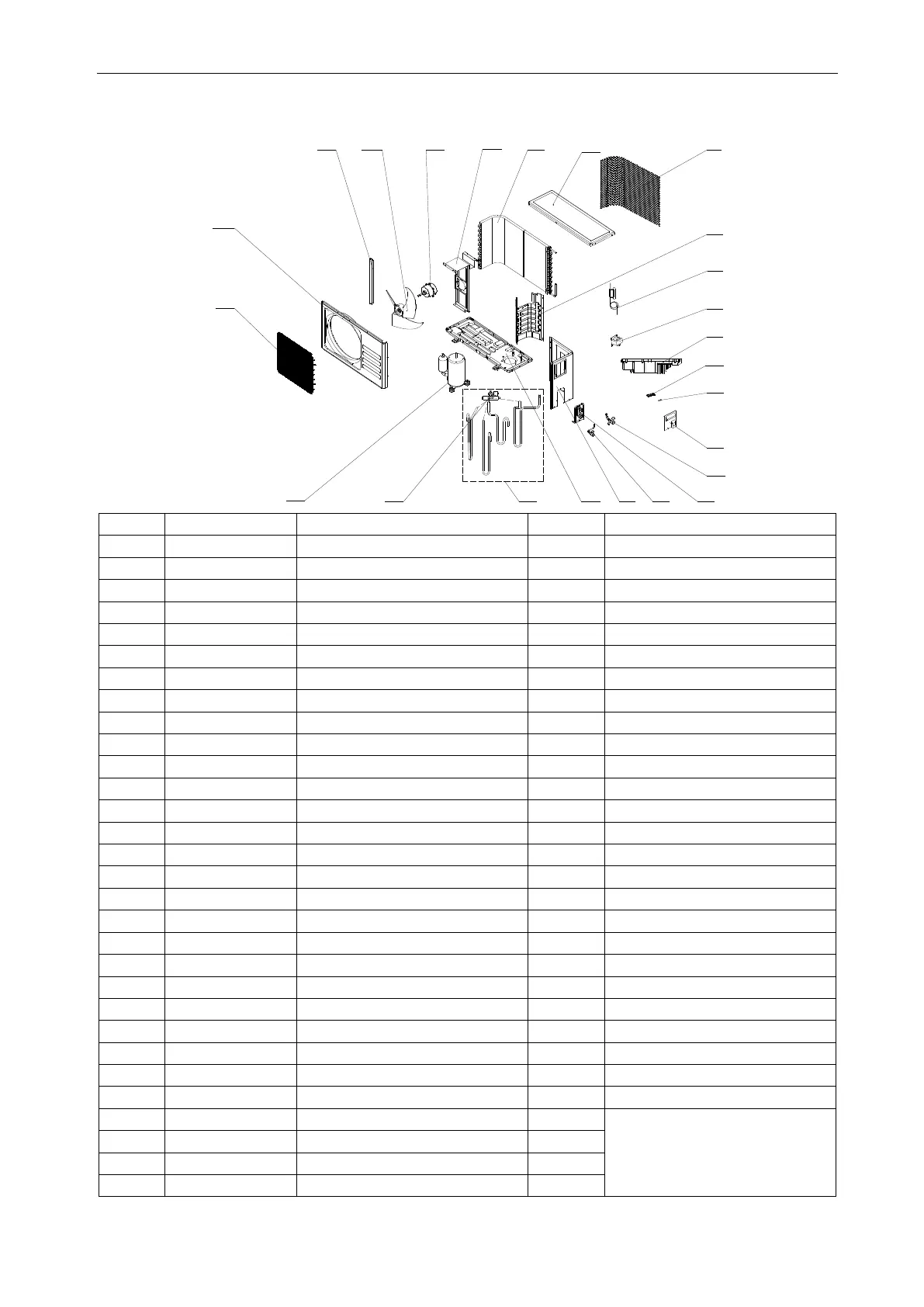

Outdoor Unit- TAC-18CHSA/XA71 INVERTER
10
11
12
8
9
7
6
5
17
13
14
16
15
18
4
3
2
1
24
23
22
21
20
19
No.
Part No.
Part Name
Q’ty
Remark
1
1071990040
Grille
1
2
1080050011
Top cover
1
3
211238066A
Condenser
1
4
1080050004
Outdoor motor supporter
1
5
1170040058H
Outdoor motor
1
6
1070030050AA
Propeller fan
1
7
1080050001
Left grille supporter
1
8
210800275
Front plate
1
9
1070251931
Fan guard
1
10
211202953
Compressor and accessories
1
11
1120500226
4-way valve
1
12
211230555
4-way valve assembly
1
13
210800433A
Base
1
14
1080050002
Right plate
1
15
1120120021
Two-way valve
1
16
1080050003
Valve supporter
1
17
211206766
Three-way valve
1
18
1070350971
Electrical box cover
1
19
1070040008
Cable clamp
1
20
1170200055
Terminal
1
21
210901380AE
Outdoor PCB assembly
1
22
1171990046
Inductor
1
23
211243110
Capillary assembly
1
24
1080050120
Partition plate
1
25
1170230007E
Pipe Temp. sensor and
outdoor Temp. sensor
1
26
1170230006A
Discharge Temp. sensor
1
27
211369053
Base carton
1
Not shown in explosion view
28
211311128AGT
Cabinet carton
1
29
211311130
Base foaming
1
30
211311129
Cover foaming
1
