Air Conditioner Service Manual
21

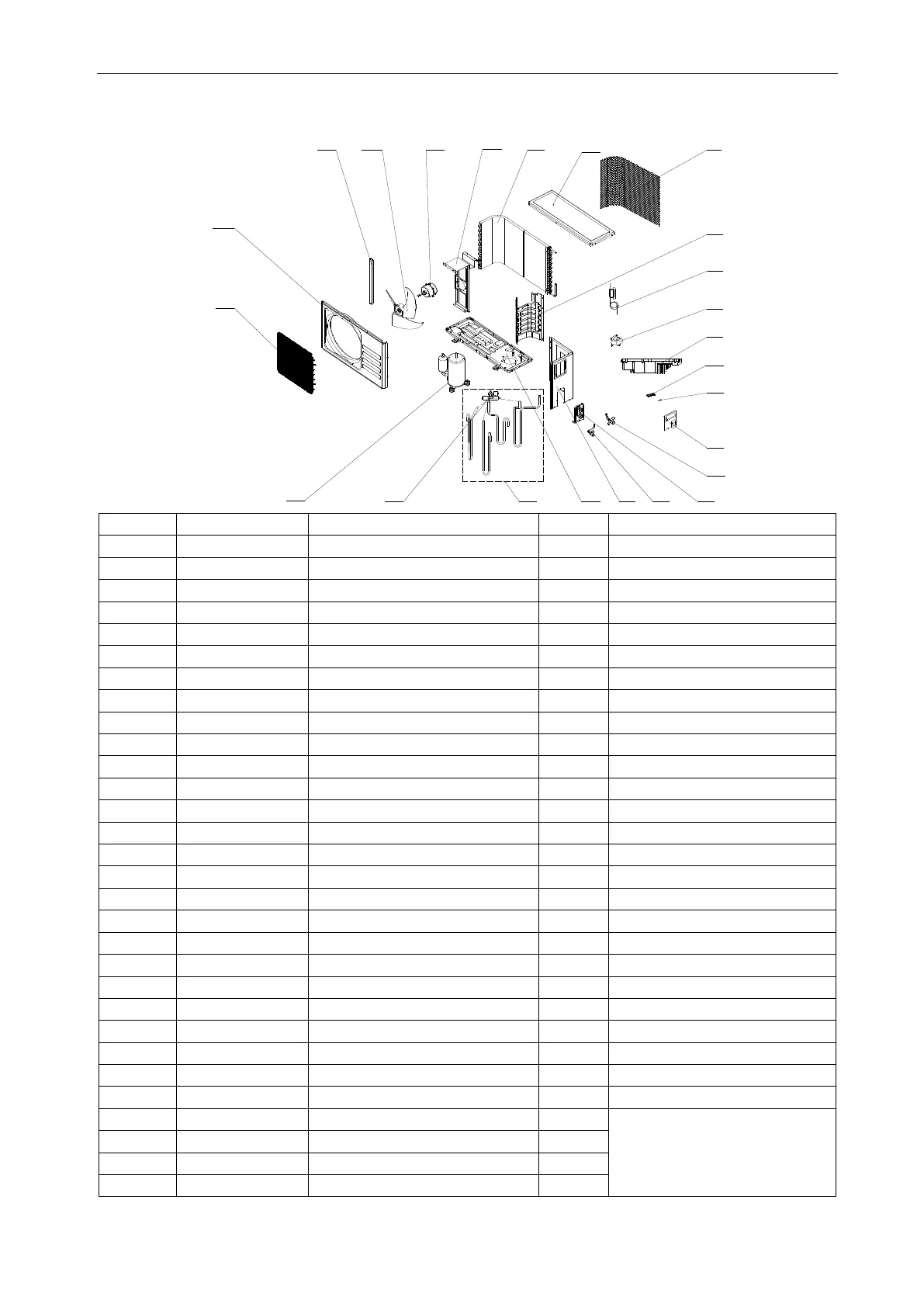

Outdoor Unit- TAC-24CHSA/XA71 INVERTER
10
11
12
8
9
7
6
5
17
13
14
16
15
18
4
3
2
1
24
23
22
21
20
19
No.
Part No.
Part Name
Q’ty
Remark
1
1083520101
Grille
1
2
1081990056
Top cover
1
3
211237809
Condenser
1
4
1081990060
Outdoor motor supporter
1
5
1170040169
Outdoor motor
1
6
1070030054AB
Propeller fan
1
7
1081990053
Left grille supporter
1
8
1081990258
Front plate
1
9
1071990096
Fan guard
1
10
211232717
Compressor and accessories
1
11
1120500226
4-way valve
1
12
211238423
4-way valve assembly
1
13
210800571
Base
1
14
1081990054
Right plate
1
15
1120120021
Two-way valve
1
16
1081990055
Valve supporter
1
17
1120130085
Three-way valve
1
18
1070350971
Electrical box cover
1
19
1070040008
Cable clamp
1
20
1170200055
Terminal
1
21
210900444BC
Outdoor PCB assembly
1
22
1170190004
Inductor
1
23
211242999
Capillary assembly
1
24
1080050121
Partition plate
1
25
1170230027A
Pipe Temp. sensor and
outdoor Temp. sensor
1
26
1170230006A
Discharge Temp. sensor
1
27
211312854
Base carton
1
Not shown in explosion view
28
211312855QF
Cabinet carton
1
29
211312852
Base foaming
1
30
211312851
Cover foaming
1
