TCS ISW3130 User Manual

10 07/2015
TCS TürControlSysteme AG Subject to technical changes.
E-Mail: hotline@tcsag.de • www.tcsag.de PI_ISW3130-uk 2 A
Commissioning
 Install the devices of the system voltage-free and completely.
 Check the a-, b- and P-wire against each other for short-circuits.
 Switch on the main voltage.
Note:
If the floor push button does not work, check if it is connected to the a-wire of the power
supply and control unit.
Settings
Preset times
conversation time
2 min
flashing period of the green LED, if the voice
channel is busy after establishing a voice
communication
2 sec
3 x blinking
internal stand-by time, if the device is calling
or is called
around
30 sec

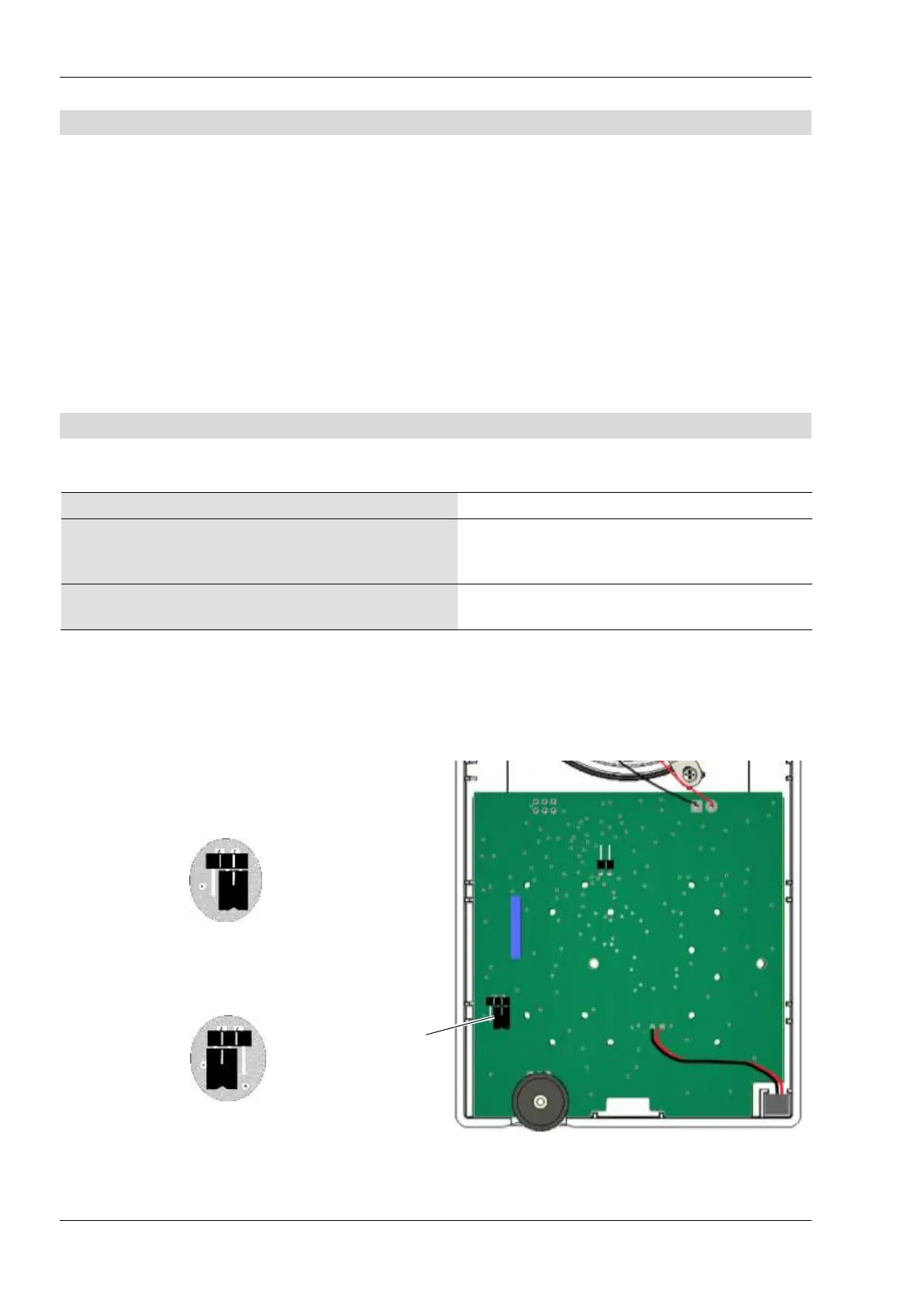

2-wire/3-wire operation
The jumper J1 is adjusted for 2-wire operation
in delivery state.
2-wire operation (delivery state)
 Install the jumper J1 at both upper contacts
for the 3-wire operation.
3-wire operation
J1
