TCS ISW3130 User Manual

07/2015 7
TCS TürControlSysteme AG Subject to technical changes.
E-Mail: hotline@tcsag.de • www.tcsag.de PI_ISW3130-uk 2 A

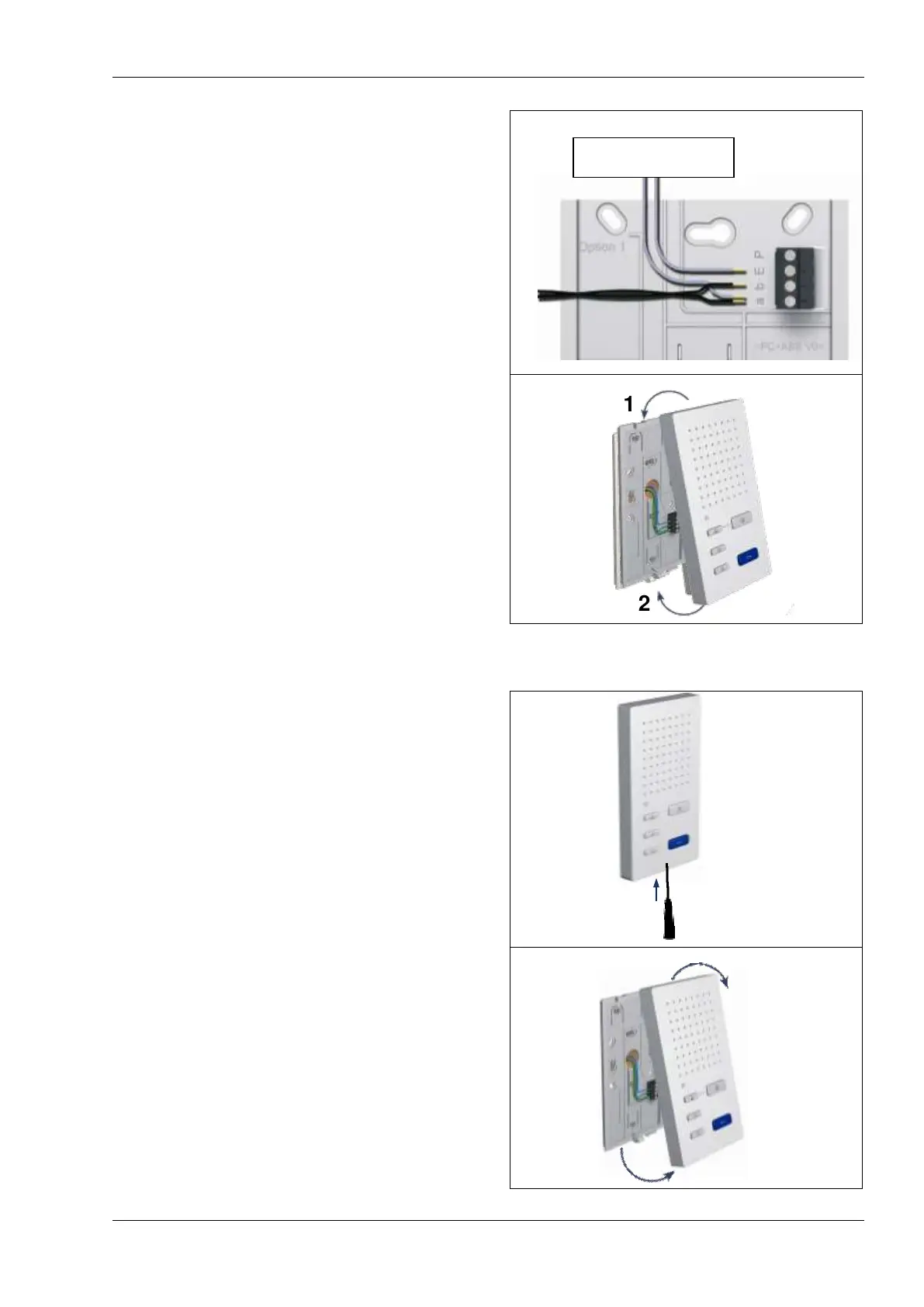

Connect the lines (2-wire technique)
 Minimize the length of the lines above the
lower cover to place without any problems
and do not clamp when snapping-on the
upper cover.
 Connect the lines according to the labeling:
a b E P (from the button to the top), floor
push button at a – E.
Wiring example see page 9.
Snap-on the upper cover
 Set on the upper cover at both adjustment
increments of the lower cover (1).
 Snap-on the upper cover below with slight
pressure (2)
Open the device
 There is a rectangular release opening at
the underside of the device. Insert a small
screwdriver right straight and with slight
pressure into this opening.
 The upper cover can be removed at the
underside (1).
 Lift the upper cover out of the two upper
adjustment increments (2).
1
2
1
2
floor push button
