TCS ISW3130 User Manual

4 07/2015
TCS TürControlSysteme AG Subject to technical changes.
E-Mail: hotline@tcsag.de • www.tcsag.de PI_ISW3130-uk 2 A

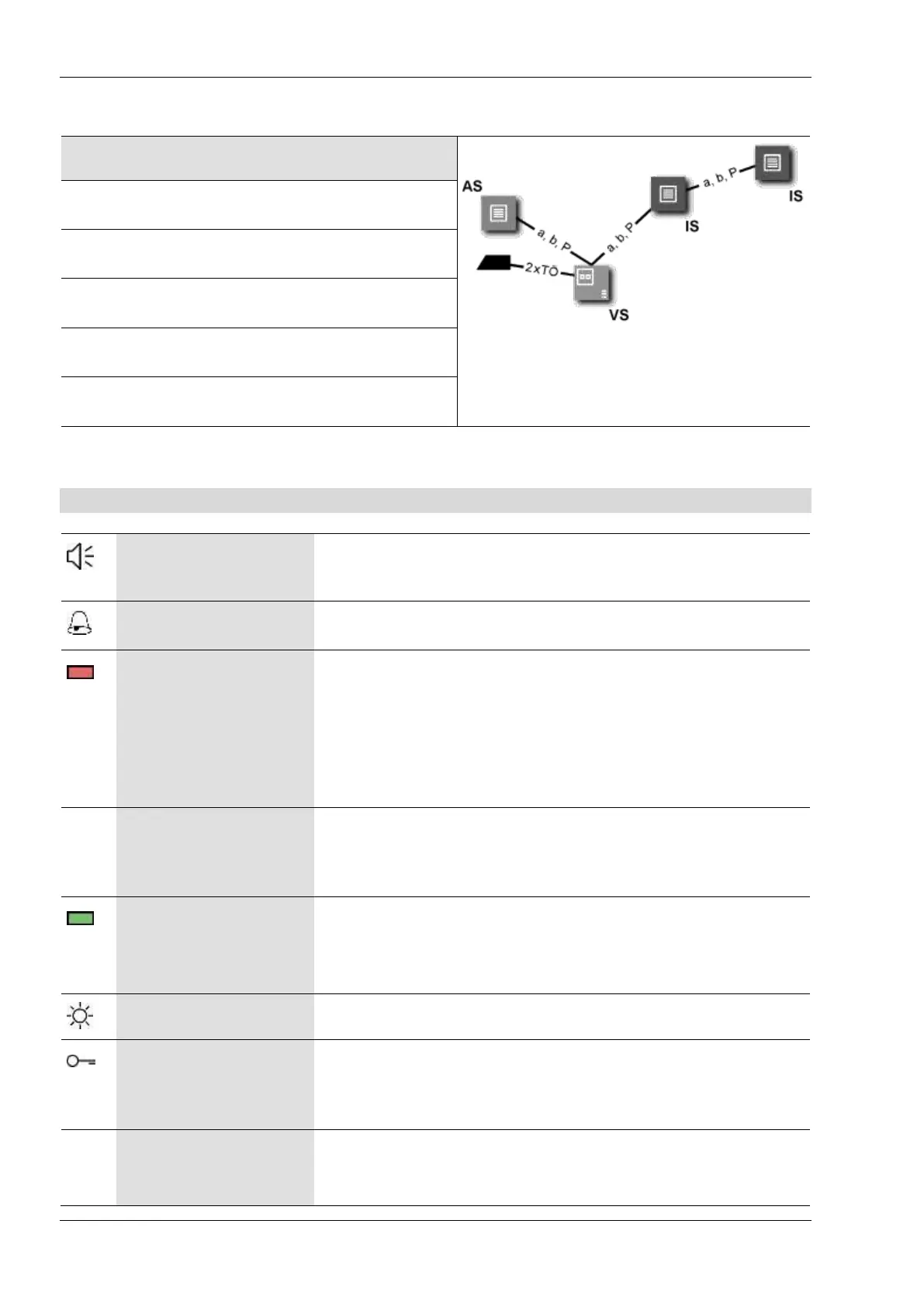

Max. number of ISW3130 in 3-wire operation
when using power supply
and control unit
Max. number
ISW3130
BVS20 or
NBV1000, 1 line
20
BVS100,
distributed to 3 lines
80
VBVS05, 1 line
90
BVS20 + NGV1011,
1 line
90
AS front-door station
VS power supply and control unit
IS indoor station
Note: The number of the front-door stations which can
be connected is limited. Details are described in their
product information!
BVS100 + NGV1011,
3 lines
270
Indication and operating elements
speech button
 call acceptance, activate speaking,
manually controlled duplex communication
 end conversation
call OFF button
 press short: ring tone stopper
 press for 8 sec: initiate ring tone selection
indicatation call OFF
(red)
 ON: call OFF is activated
 flashes: ring tone stopper is deactivated, door release
automatic or call diversion is activated
 flashes OFF: ring tone stopper is activated, door re-
lease automatic or call diversion is activated
 fault indication: both LEDs flashing
 ring tone selection: both LEDs are ON
○
function key
 control function 8,
alternate allocation can be activated: internal call, door
release automatic, call diversion
 ring tone selection internal call
call indication
(green)
 ON: call, speaking activated
 blinks 3 x: voice channel is busy
 fault indication: both LEDs flash
 ring tone selection: both LEDs ON
light switch button
 switching lights
 ring tone selection floor call (from the flat door)
door release button
 open the door
 to trigger light switch function (if the light switch function
is activated in the front-door station)
 ring tone selection door call from front-door station

volume control for
voice output and
ring tone
adjustable in 8 steps:
 when voice communication is established
 when no voice communication is established
