TCS ISW3130 User Manual

14 07/2015
TCS TürControlSysteme AG Subject to technical changes.
E-Mail: hotline@tcsag.de • www.tcsag.de PI_ISW3130-uk 2 A

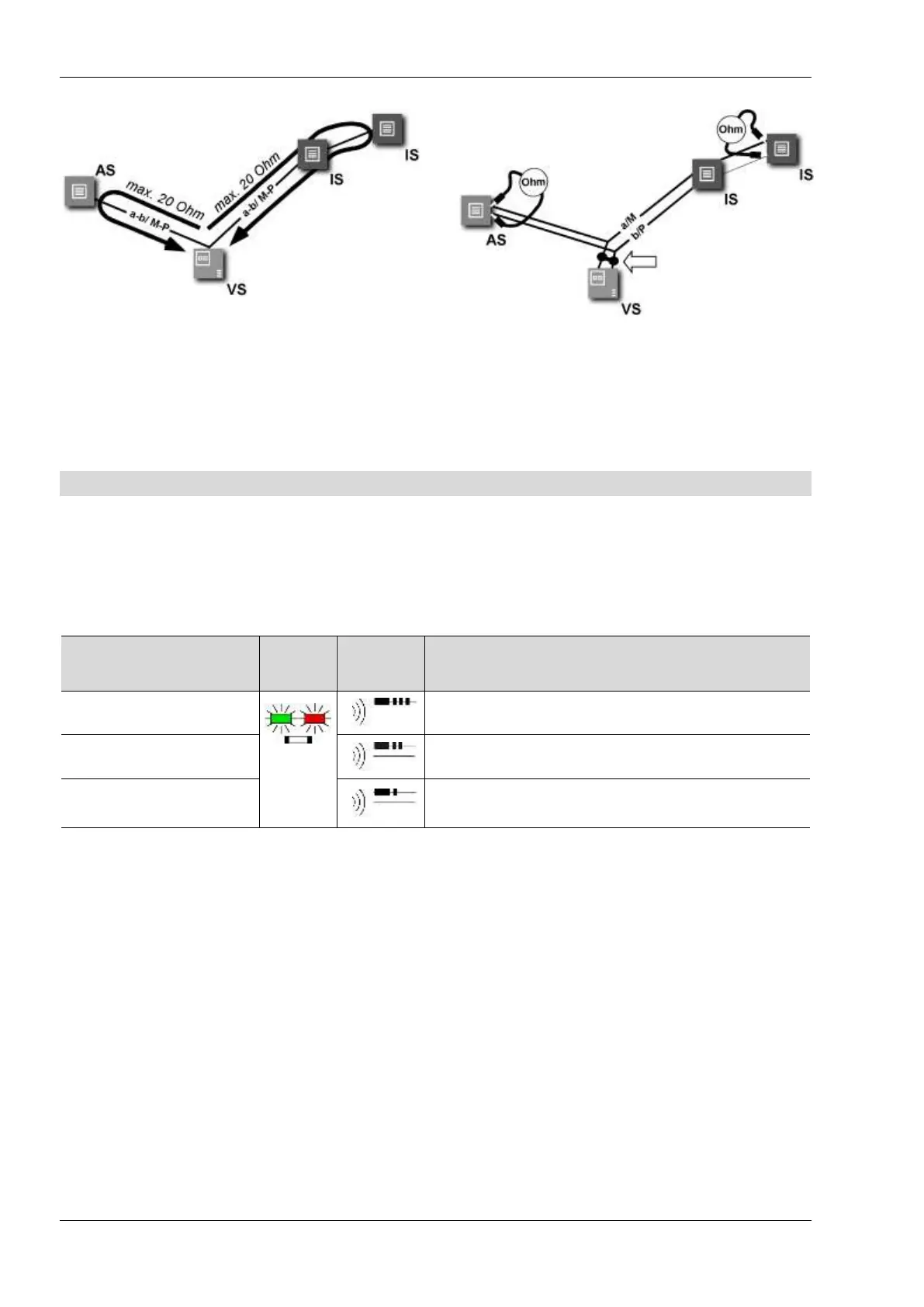

20 Ohm:
max. 160 m distance AS/IS-VS by 0.6 mm diameter
max. 300 m distance AS/IS-VS by 0.8 mm diameter
AS front-door station
VS power supply and control unit
IS indoor station
FE extended functions
Repair
Error detection and indication
Faults are signalled optically and acoustically: constant fault tone and constant flashing of
the operation display. When pressing any button, a fault tone sounds again. The optical
fault indication stays active until the fault is corrected.
fault causes
display
fault
mode
fault tone
elimination
a- and P-wire are inter-
changed or short-circuited
both
LEDs
flash
change a- and P-wire or eliminate short-circuit,
device is in stand-by mode again
a-wire: not connected or
not supplied
connect the a-wire or check power supply,
device is in stand-by mode again
button stucks
(press longer than 15 sec)
remove button at the device or loosen floor push but-
ton, device is in stand-by mode again
Exchange an indoor station – programme bell buttons
Basics
 All devices at theTCS:BUS have got an unique serial number.
 Programming a bell button means that the serial number of an indoor station is allocat-
ed to the bell button of a front-door station and is stored within the EEPROM of the
front-door station.
 Ensure that new the indoor stations is connected to the TCS:BUS and the mains volt-
age is switched on (the operation LED at the power supply and control unit is ON) and
further, that the access to the flat is granted during the programming.
 This instruction describes the case that a serial number is allocated to the bell button
without setting a programming lock. To neutralise a programming lock you need a Ser-
vice Device TCSK-01or the configuration software configo™.
a, b hier
kurzschließen
