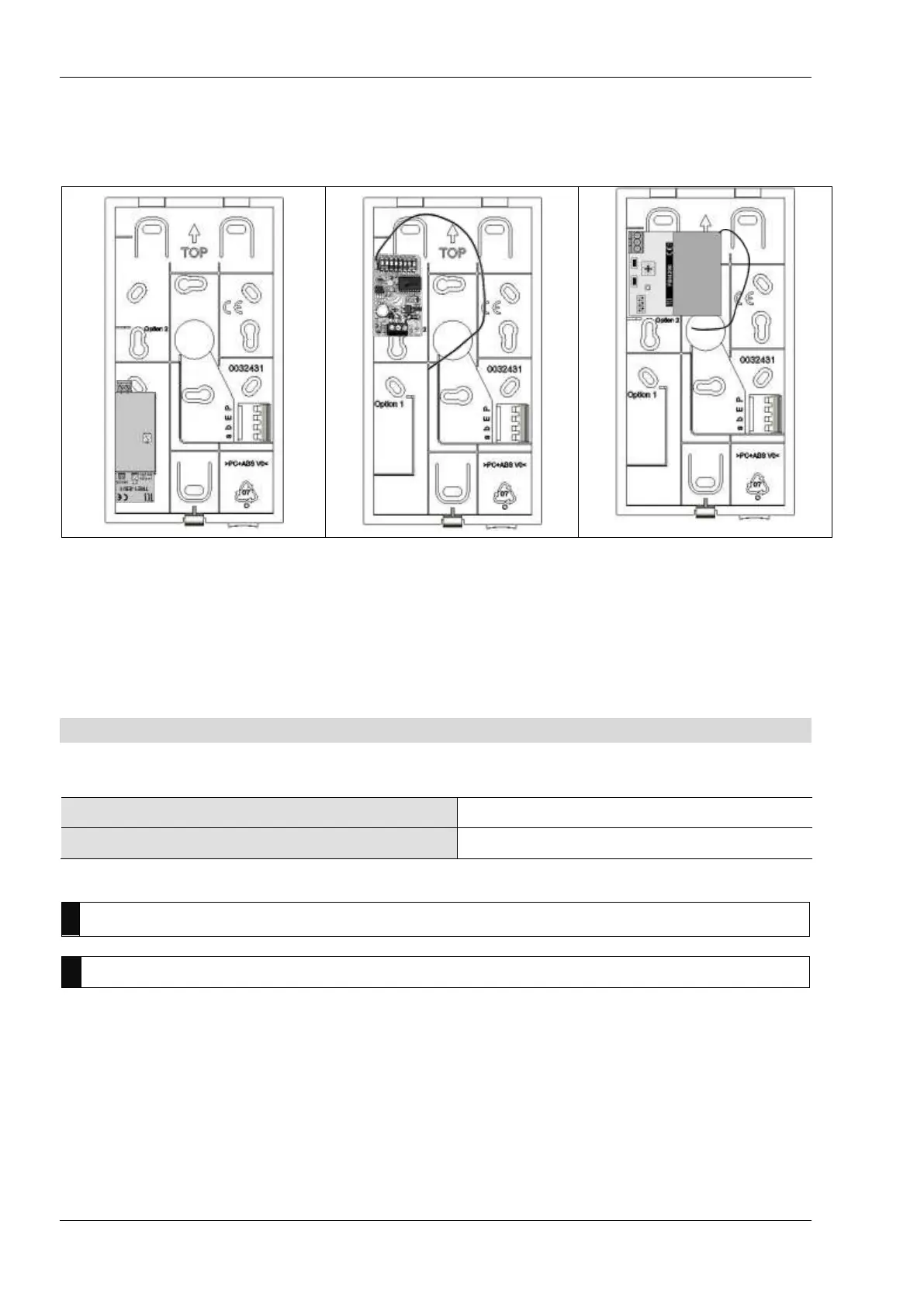

Installation of extended functions
TRE1*
radio transmitter board
FFL1000-0
radio interface FBI4200
 The extended functions (and the antennas) have to be fixed in the indoor station with
adhesive pads (see also product information of each extended function).
* Connecting the lines is implemented in analog to the ISW3030 (see product information TRE1-EB/1).
Connect the lines
Connection lines
acceptable cross section (diameter)
0.08 … 0.82 mm
2
(Ø 0.32 … 1.0 mm)
Max. Anzahl Drähte pro Klemmenkontakt
je 2 x 0.8 mm, 3 x 0.6 mm
!
Further wires have to be connected with auxiliar terminals!
!
Use only connecting lines with identical diameter in one terminal contact.
