07/2015 3
TCS TürControlSysteme AG Subject to technical changes.
E-Mail: hotline@tcsag.de • www.tcsag.de PI_ISW3130-uk 2 A
Scope of delivery
1 x comfort indoor station ISW3130: upper cover, lower cover
product information
instruction manual
Safety instructions
Attention! Mounting, installation, commissioning and repair of electronic devices have
to be carried out only by qualified electricians. The current standard for the installation
of door communication systems must be observed!
When installing TCS:BUS systems, the general safety regulations for telecommunication
systems according to VDE 0800 must be observed. Inter alia:
separated cabling of heavy and low current lines,
minimum distance of 10 cm for common cabling,
use of separators between heavy and low current lines in shared cable ducts,
use of standard telecommunication lines, e.g. J-Y (St) Y with 0.8 mm diameter,
existing lines (modernisation) with deviating cross sections can be used in compliance
with the loop resistance.
Installation – protective measures
With suitable requirements to protect against lightning, it hast to be ensured that a
voltage of 32 V DC is not be exceeded at the connections a, b, P, E.
Intended use
ISW3130 are indoor stations for hands-free talking for the object area.
They are suitable for the operation in TCS audio systems and combined audio / video
systems.
They are suitable for surface-mount (installation via flush-mounted socket) or desktop
mounting with desktop accessory ZIT3030-0010.

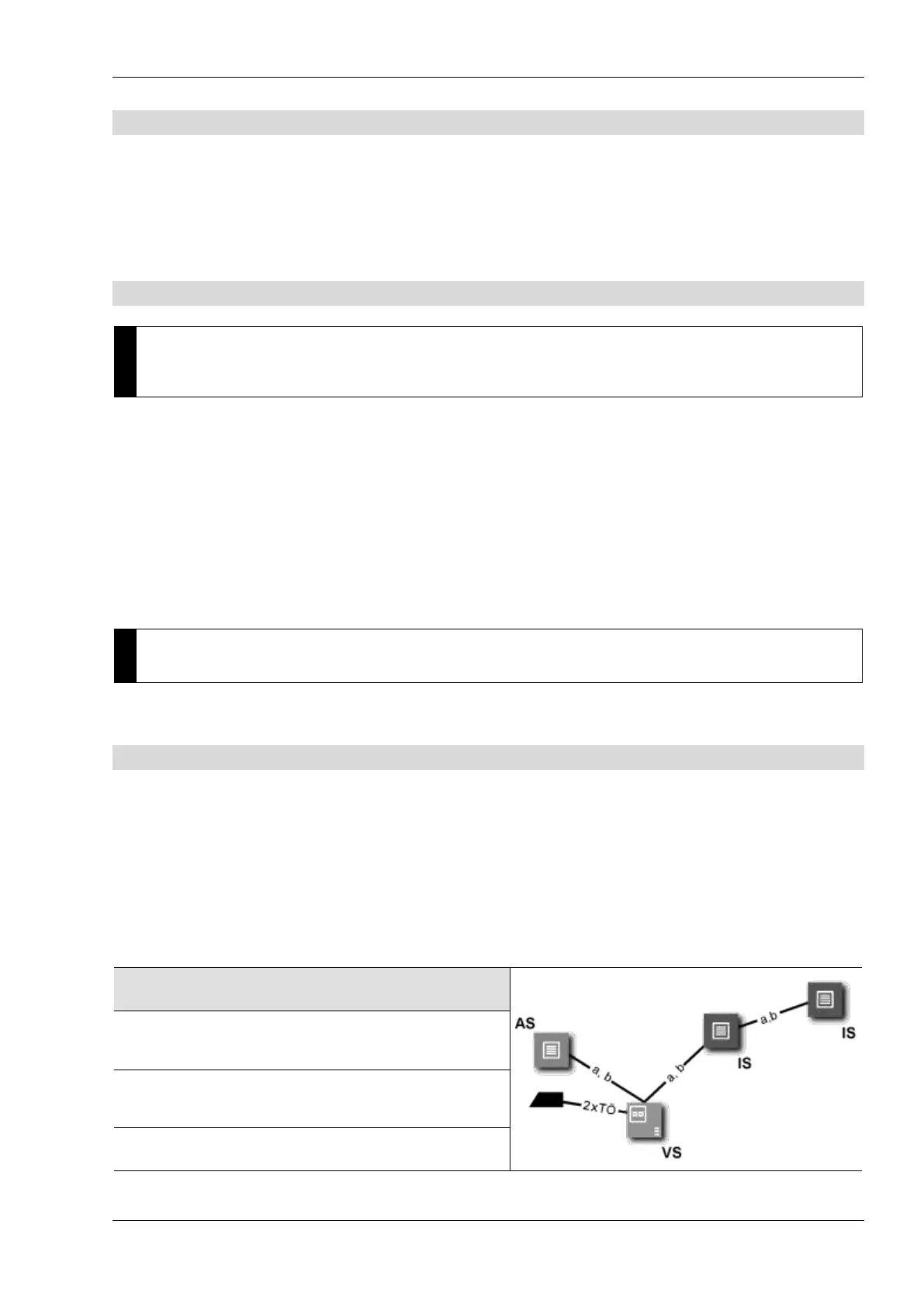

Max. number of ISW3130 in 2-wire operation
when using power supply
and control unit
BVS100,
distributed to 3 lines
