System Components
This section describes the key components of a MICROgarde system.
1.1.1 MICROgarde controller (I or II)
1 or 2-door – 4 reader controllers (2 readers only with non-TDSi readers)
2 changeover lock relays*
2 Door sense and 2 Egress inputs*
On-board memory and intelligence
Built-in tamper detection
RS232, RS485 or TCP/IP communications

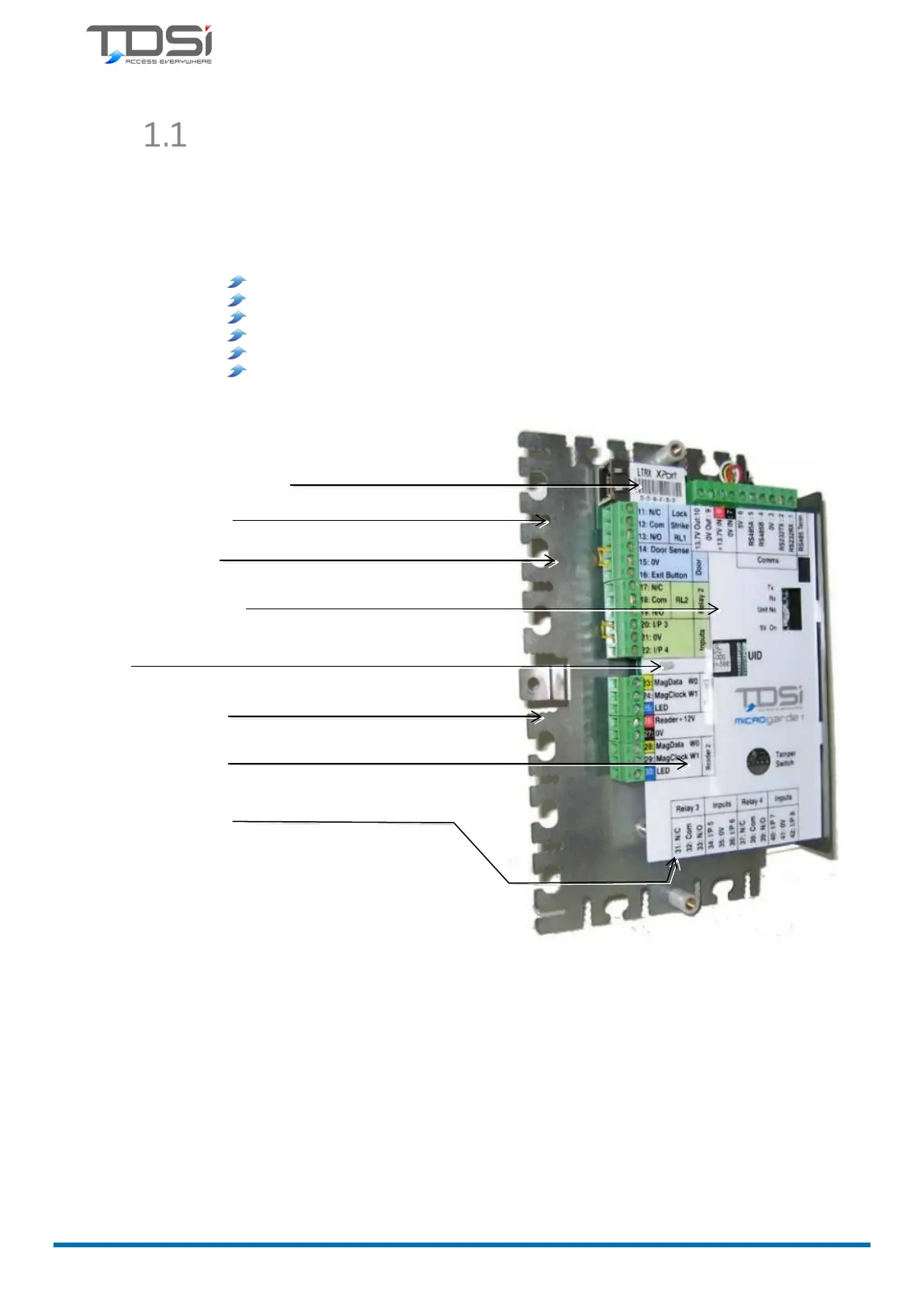

RS232/RS485 connections
Lock connections
Reader
connections
Relay and Inputs
Door Sensor/Exit
button connections
Rotary Selector and
Tx/Rx/5V status LEDs
UID
Tamper switch

TDSi MICROgarde I Specifications

General

Brand	TDSi
Model	MICROgarde I
Category	Controller
Language	English
