TE Connectivity CCS1 - Page 18

114-94438 REV C1
18 of 36

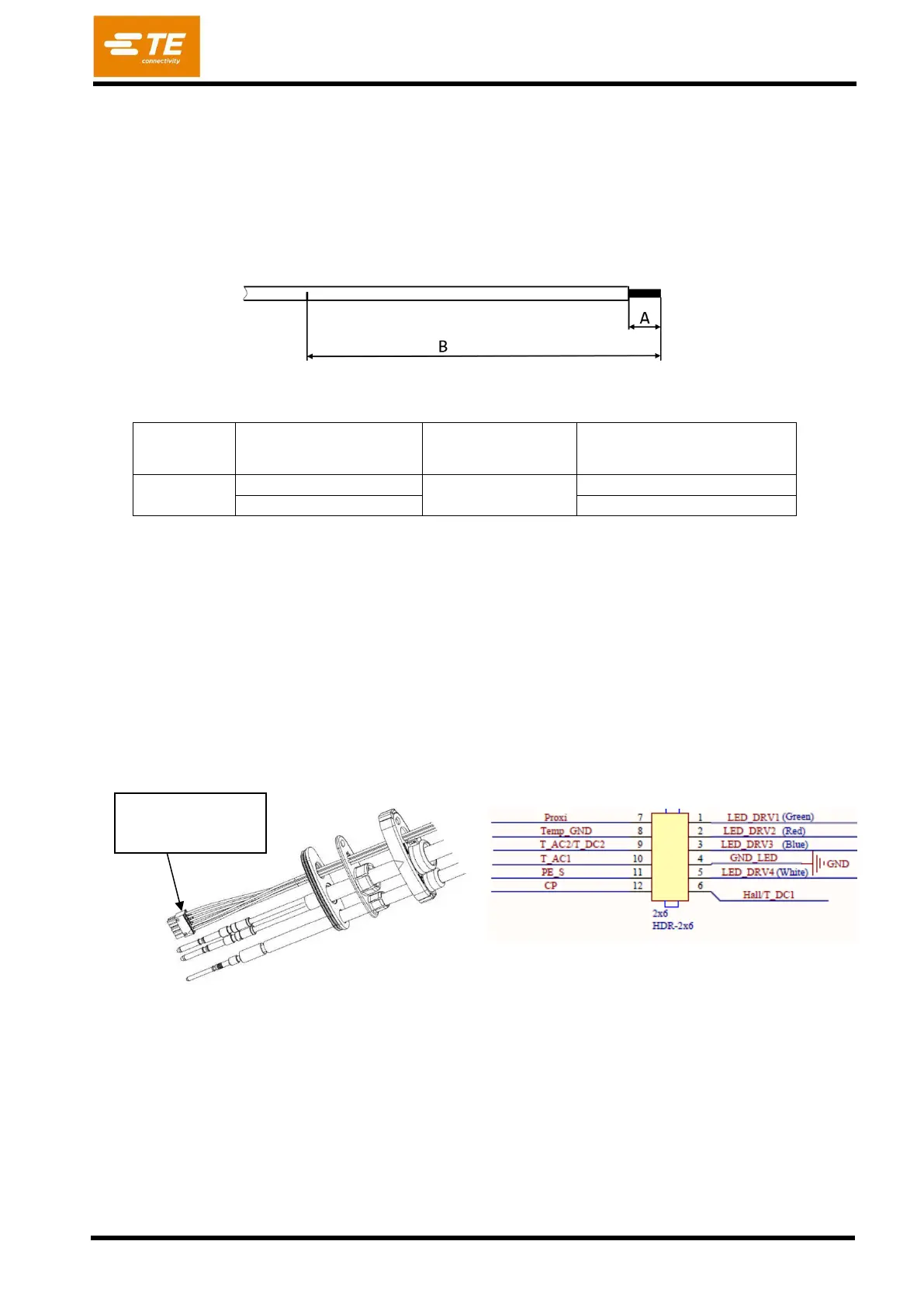

Step 4
Dismantle LV single wires (dim. A) acc. spec. 114-13000. Crimp Contacts acc. Spec. 114-13000 on LV
signal wires.
THE SINGLE BRAIDS MAY NOT BE CUT OR DAMAGED DURING DISMANTLE PROCESS.
Wire Size
Variant of CABLE EXIT
[POS. 6]
Removal of
isolation
"A"
Position outer end of
COVER [POS.9]
“B”
0,35mm²
AC 90° (rect. right / left)
Acc. 114-13000
80 mm REF
AC 20° down (straight)
75 mm REF
Table 6
Push signal terminals into the Connector Housing 12P MICRO MNL [Pos. 2] (not part of Charging Inlet)
acc. application spec 114-13000. Take care of correct pinning as shown in figure 22
Micro Mate-N-Lock
Connecor
Figure 20
Figure 21
Figure 22
