TE Connectivity CCS1 - Page 19

114-94438 REV C1
19 of 36
Step 5
There are 3 different ways of preparation of DC-HV-Cables necessary:
For DC-HV-Cables of 16mm² in combination with CABLE EXIT AC 90° SIDEWARDS please see Step 5a.
For DV-HV-Cables of 50mm² in combination with CABLE EXIT AC 90° SIDEWARDS please see Step 5b.
For DV-HV-Cables of 50mm² in combination with CABLE EXIT AC 20° DOWN please see Step 5c.
Step 5a
DC-HV-Cables of 16mm² in combination with CABLE EXIT AC 90° SIDEWARDS.
THE SINGLE BRAIDS MAY NOT BE CUT OR DAMAGED DURING DISMANTLE PROCESS.

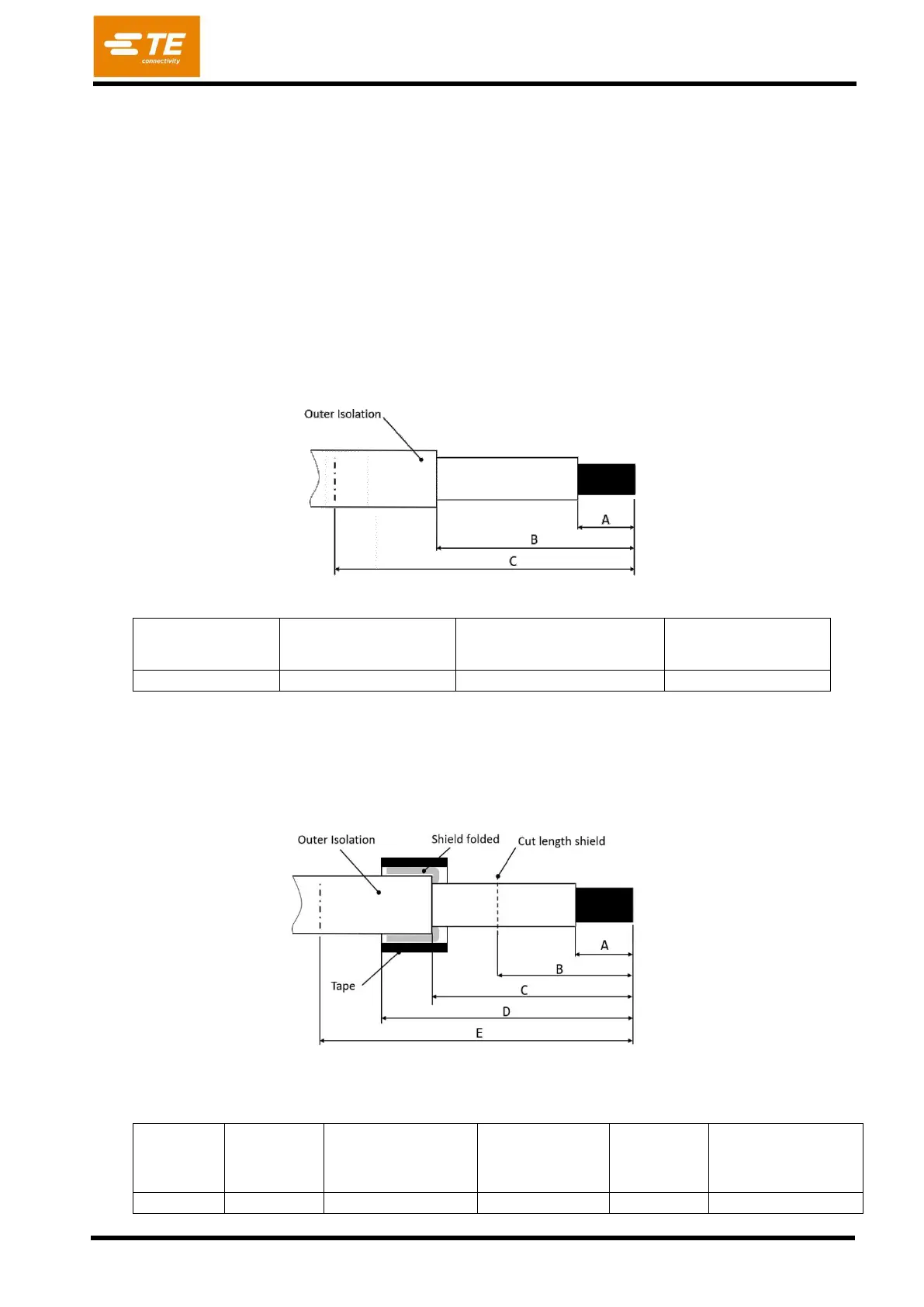

Remove outer isolation and shielding braid of DC-HV-Cable acc. dimension B, remove inner isolation
acc. dimension A (figure 23).
Wire Size
Removal of isolation
"A"
Removal of shielding dim
“B”
Position outer end
of COVER [POS.10]
“C”
16mm²
16 +/-1 mm
25 +/-1 mm
53 mm REF
Table 7
Alternative to prepar cable according step 5a figure 24, is it also possible to prepare cable similar figure
24. In this case it is necessary to protect complete backward folded shield braid (folded over outer
isolation) with tape (e.g. Certoplast 9mm).
Wire Size
Removal of
isolation
"A"
Length of shield
braid (before
folding backward)
“B”
Length of outer
isolation
“C”
Pos.Tape
“D”
Position outer end
of COVER [POS.10]
“E”
16 mm²
16 +/-1 mm
21 +/-2 mm
26 +/-2 mm
max. 38mm
53 mm REF
Figure 23
Figure 24
