Table 8
Take care, to protect single conductors and braid against contamination, bending and other damages
until crimping process.

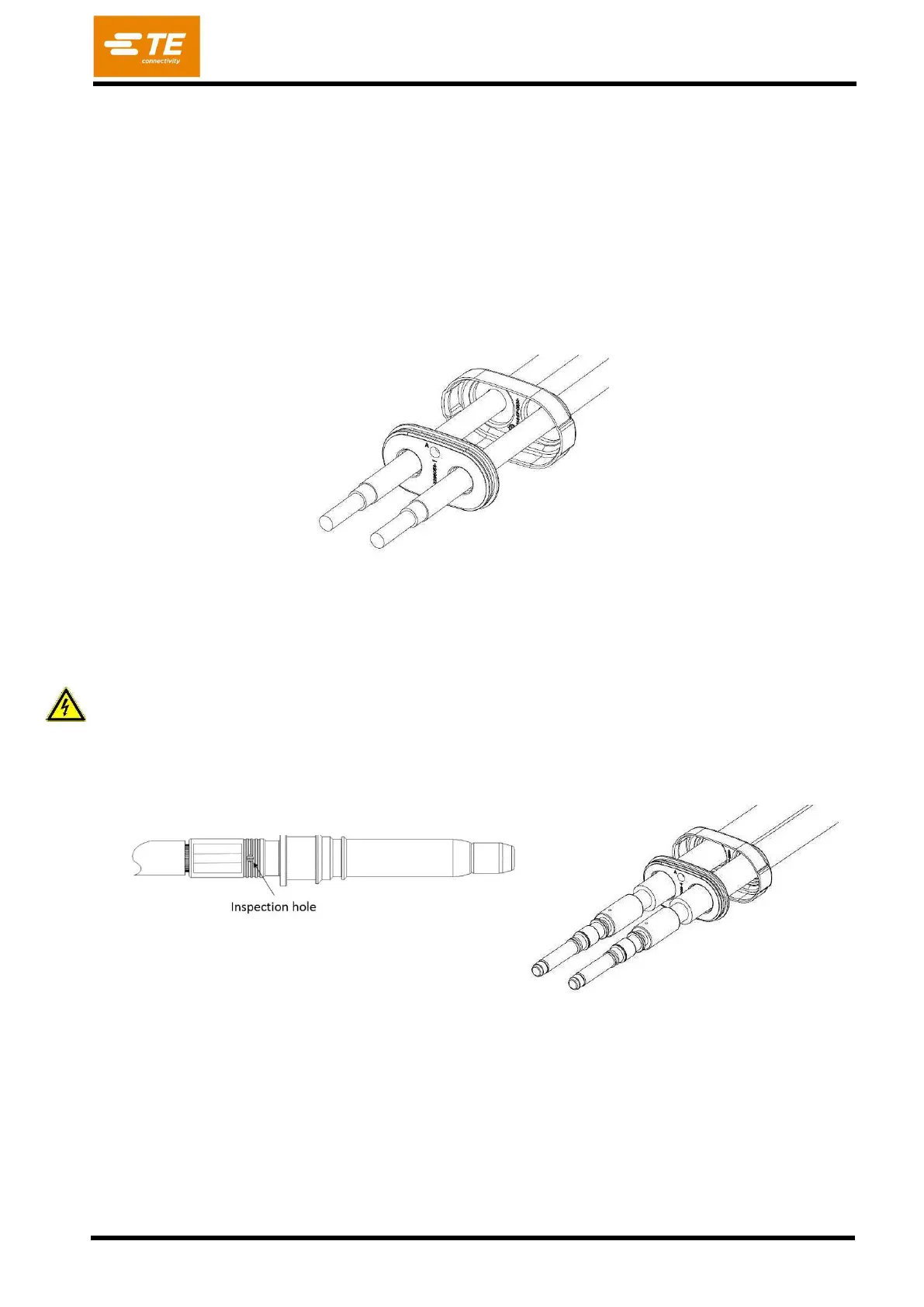

The COVER CABLE SEAL DC (Pos. 10) and FAMILY SEAL DC [Pos. 11] must be pushed over the
DC-HV-wires (figure25)
Crimp the conductors to the PIN DIA8.0 CONTACT [Pos. 12] with the specified tools. Care shall be
taken that all braids are caught in the crimp. Not inserted braids may jeopardize HV requirements! Wires
shall be completely inserted to be visible through the inspection hole (Figure 26). Crimp height H shall
be conform to dimension acc. table 1.
ATTENTION:
Any damage of the wire isolation must to be avoided!
