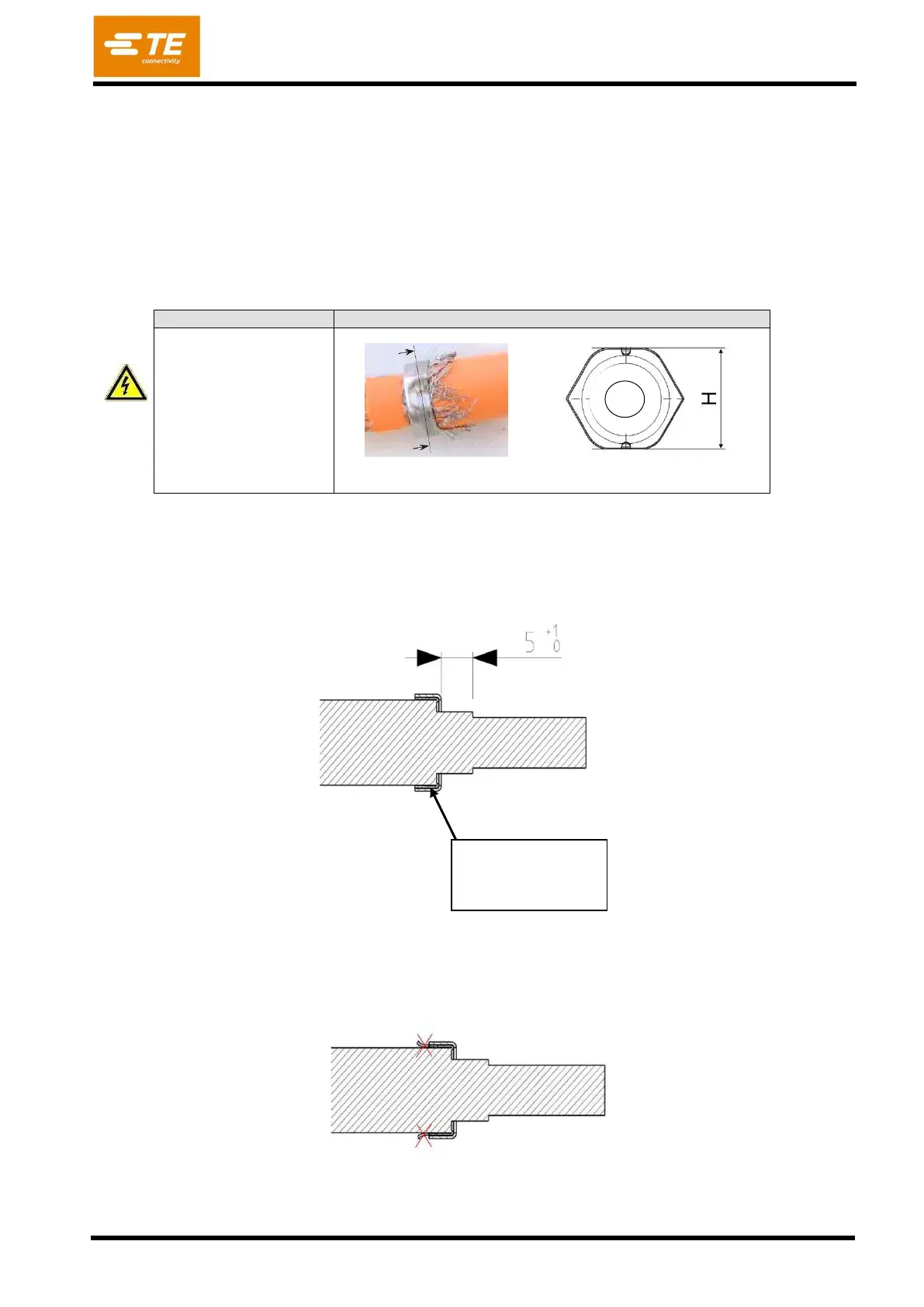

Processing OUTER FERRULE [16]
The shielding braid must not be combed out. Fold back the shielding braid over the outer insulation of
the cable.
Push then the OUTER FERRULE [Pos. 16] over the shielding braid.
Crimp OUTER FERRULE [Pos. 16]. The crimp quality has to be conform to TE Spec. 109-18212. The
crimp height according table 10 has to be measured according Chapter 5.4 of TE Spec. 109-18212 and
it has to meet the following requirement.
Take care of position for OUTER FERRULE [Pos. 16], according figure 29
Free shielding braid longer than outer ferrule, must be cut as shown in Figure 30
Hex Crimp Height H
Measurement Position
15.3 ±0.1 mm
Section through crimp ring
Table 10
Shielding braid
underneath outer
FERRULE
Figure 30
Figure 29
