Step 10

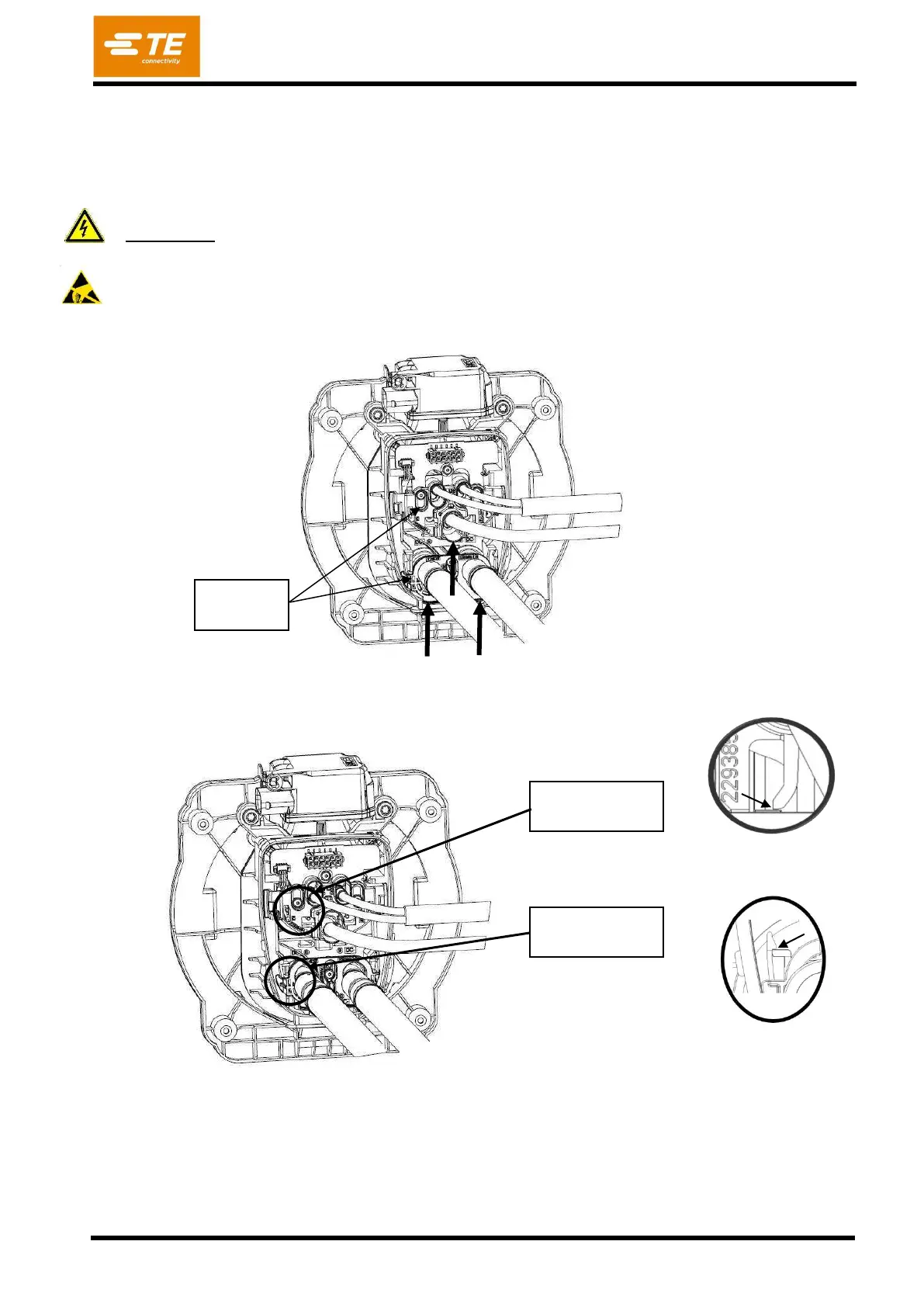

After the contacts have been controlled for correct positioning and locking, both SECONDARY LOCKS
have to be pushed upwards (figure 42). Ensure that all hooks are properly engaged with the inlet
housing, which must be controlled by the double audible click and by visible inspection (figure 43).
ATTENTION: The Pin position has to be ensured BEFORE locking the Secondary Lock!
ESD safety required - The printed circuit boards are static sensitive devices, which can be damaged if
touched without the necessary electrostatic discharge (ESD) precautions. During handling of the open
inlet assembly ESD safety is required.
To Next Page
