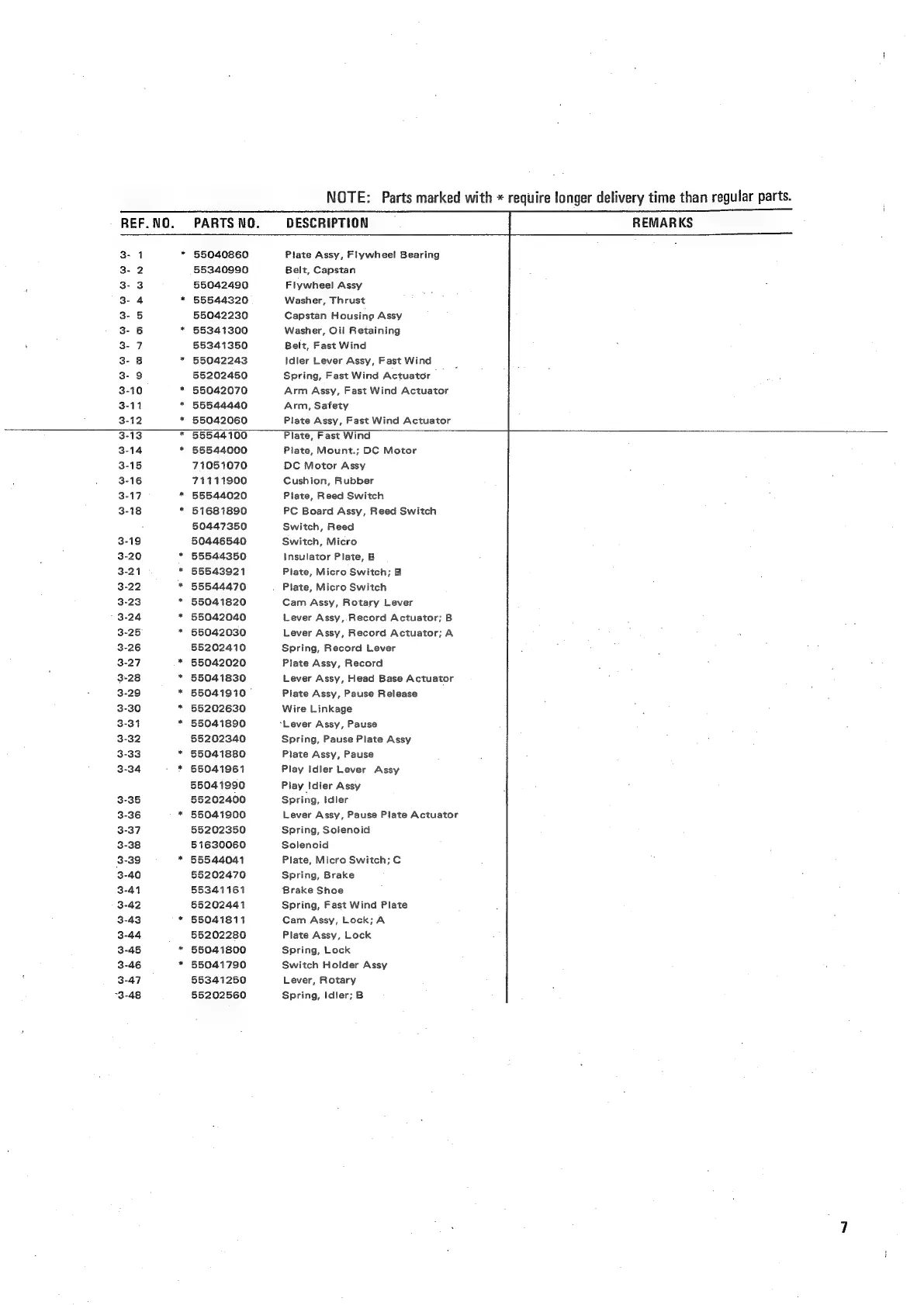

NOTE: Parts marked with * require longer delivery time than regular parts.
PARTS NO. DESCRIPTION REMARKS
3-1 * 55040860 Piate Assy, Flywheel Bearing
3- 2 55340990 Belt, Capstan
3-3 55042490 Flywheel Assy
3-4 * 55544320 Washer, Thrust
3-5 55042230 Capstan Housing Assy
3- 6 * 65341300 Washer, Oil Retaining
3-7 55341350 Bett, Fast Wind
3- 8 * 65042243 Idler Lever Assy, Fast Wind
3-9 55202450 Spring, Fast Wind Actuator |
3-10 * 55042070 Arm Assy, Fast Wind Actuator
3-11 * 55544440 Arm, Safety
3-12 * 55042060 Plate Assy, Fast Wind Actuator
3-13 * 55544100 Plate, Fast Wind
3-14 * 55544000 Plate, Mount.; DC Motor
3-15 71051070 DC Motor Assy
3-16 71111900 Cushion, Rubber
3-17 * 55544020 Piate, Reed Switch
3-18 * 51681890 PC Board Assy, Reed Switch
. 50447350 Switch, Reed
3-19 50446540 Switch, Micro
3-20 * 65544350 Insulator Plate, B
3-21 * 55543921 Plate, Micro Switch; B
3-22 * 55544470 . Plate, Micro Switch
3-23 * 55041820 Cam Assy, Rotary Lever
- 3-24 * §5042040 Lever Assy,-Record Actuator; B
3-25 * 55042030 Lever Assy, Record Actuator; A
3-26 55202410 Spring, Record Lever
3-27 * 65042020 Plate Assy, Record
3-28 * 55041830 Lever Assy, Head Base Actuator
3-29 * 55041910 Plate Assy, Pause Release
3-30 * 65202630 Wire Linkage
3-31 * 55041890 ‘Lever Assy, Pause
3-32 55202340 Spring, Pause Plate Assy
3-33 * 55041880 Plate Assy, Pause
3-34 - * §5041961 Play Idler Lever Assy
55041990 Piay Idler Assy
3-35 55202400 Spring, tdler
3-36 * 55041900 Lever Assy, Pause Plate Actuator
3-37 55202350 Spring, Solenoid
3-38 51630060 Solenoid
3-39 * 55544041 Plate, Micro Switch; C
3-40 55202470 Spring, Brake
3-41 55341161 Brake Shoe
3-42 §5202441 Spring, Fast Wind Plate
3-43 * 65041811 Cam Assy, Lock; A
3-44 55202280 Plate Assy, Lock
3-45 * 55041800 Spring, Lock
3-46 * 55041790 Switch Holder Assy
3-47 §5341250 Lever, Rotary
3-48 55202560 Spring, Idier; B
