Teac A-400 - Partial Dis-assembly of Main Parts

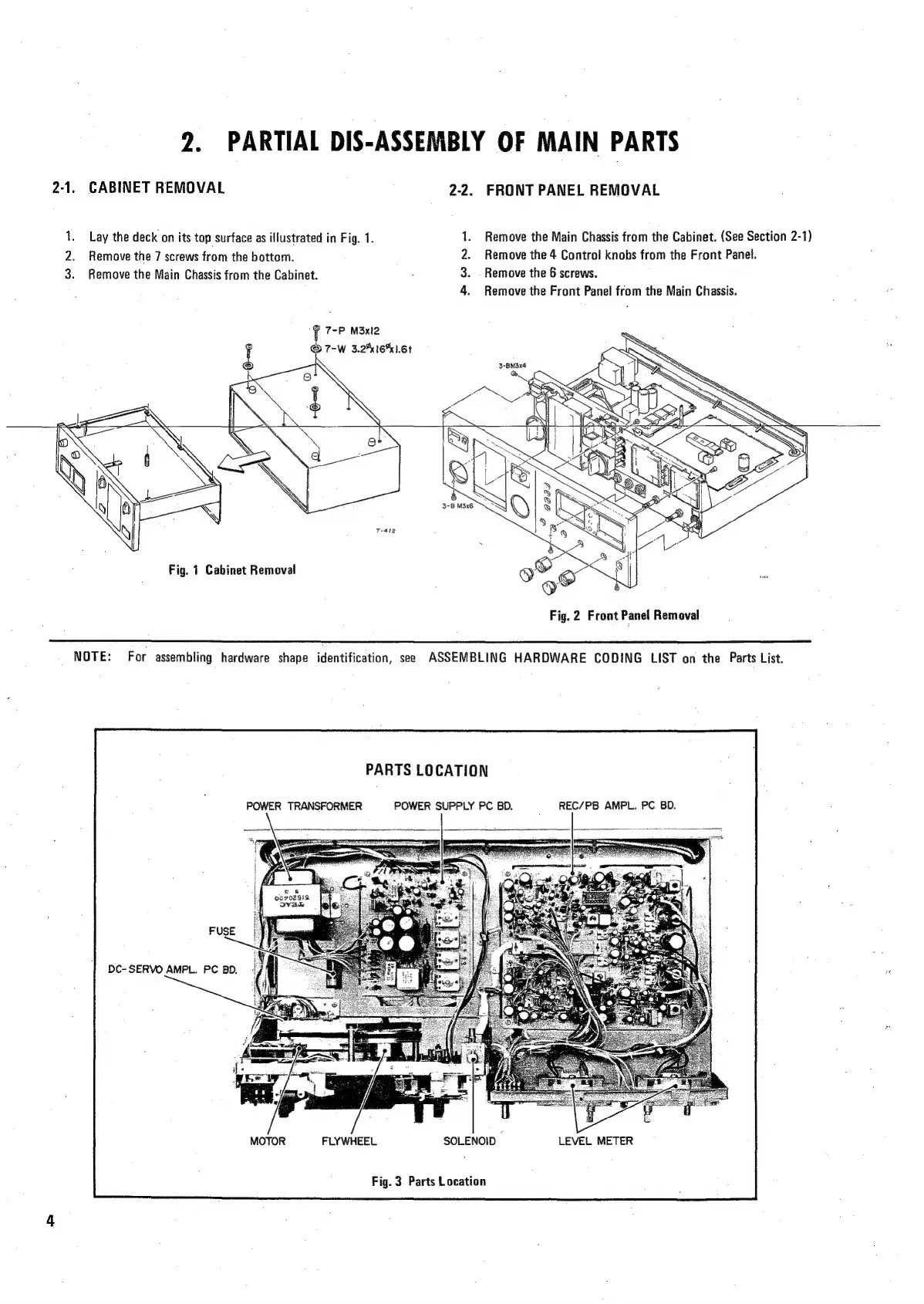

2. PARTIAL DIS-ASSEMBLY OF MAIN PARTS
2-1. CABINET REMOVAL 2-2. FRONT PANEL REMOVAL
Remove the Main Chassis from the Cabinet. (See Section 2-1)
Remove the 4 Control knobs from the Front Panel.
Remove the 6 screws.
Remove the Front Panel from the Main Chassis.
1. Lay the deck on its top surface as illustrated in Fig. 1.
2. Remove the 7 screws from the bottom.
3. Remove the Main Chassis from the Cabinet.
Pe NS
af 7-P M3xl2
7-W 3.216% 1.6t
Fig. 1 Cabinet Removal
Fig. 2 Front Panel Removal
NOTE: For assembling hardware shape identification, see ASSEMBLING HARDWARE CODING LIST on the Parts List.
PARTS LOCATION
POWER TRANSFORMER POWER SUPPLY PC BD. _ REC/PB AMPL. PC. BD.
FUSE
DC- SERVO AMPL. PC BD.
MOTOR FLYWHEEL SOLENOID LEVEL METER
Fig. 3 Parts Location
