2-3. CASSETTE HOLDER REMOVAL
1. Remove the Cabinet and the Front
Panel. (See Section 2-1, 2-2)
2. Loosen the 2 screws (1) on the Bracket
A (2) and the 2 screws (3) on the Brack-
et B ®. At this time, the work is made
easier by expanding the Springs (5), @)
in the direction of the arrows.
3. Remove the Cassette Holder oO) from
the Tape Transport Chassis.
2-4. TAPE TRANSPORT CHASSIS REMOVAL
1. Remove the Cabinet and the Front
Panel. (See Section 2-1, 2-2)
2. Remove the 4 screws (1)- (4) .
3. Extract the Insulator Plate A (5) from
~ the Main Chassis (6) .
4. Remove the Reinforcing Angle (7) by
taking off the 2 screws and
loosing the screw (9) .
5. Retighten temporarily the screw g) ‘
6. Remove the Transport Chassis (0) from
the Main Chassis (6) :
@
NN ne ®)
5 2
CASSETTE
HOLDER
f
U
144

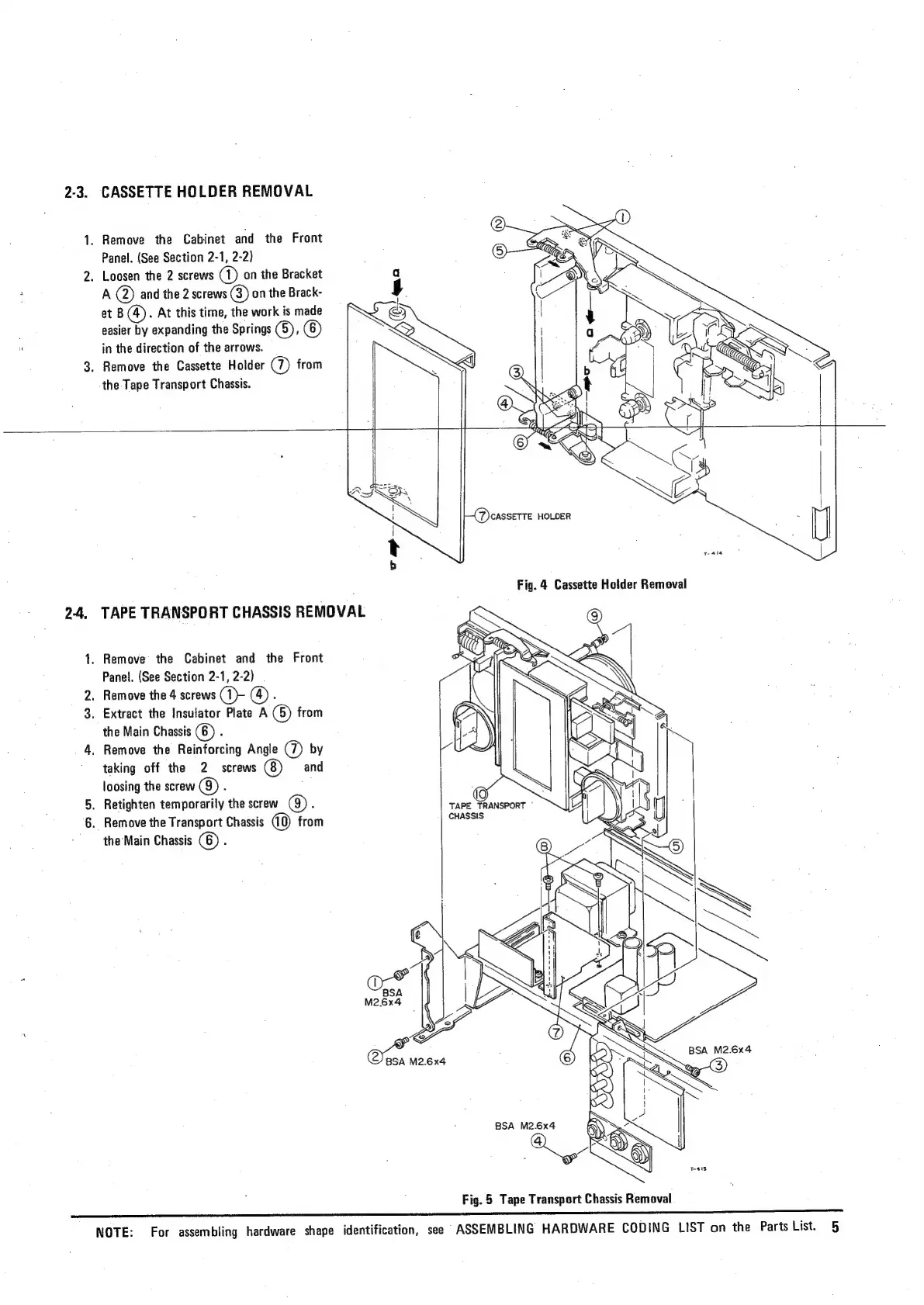

Fig. 4 Cassette Holder Removal
TAPE TRANSPORT °
CHASSIS
Cate : ©)
7 SSD
mm : SA M2.6x4
wy ®
BSA M2.6x4
Fig. 5 Tape Transport Chassis Removal
NOTE:
For
assembling
hardware
shape
identification,
see
ASSEMBLING
HARDWARE
CODING
LIST
on
the
Parts
List.
