Teac A-6010GSL - P.S. Amplifier (Phase Sensing Ampl.)

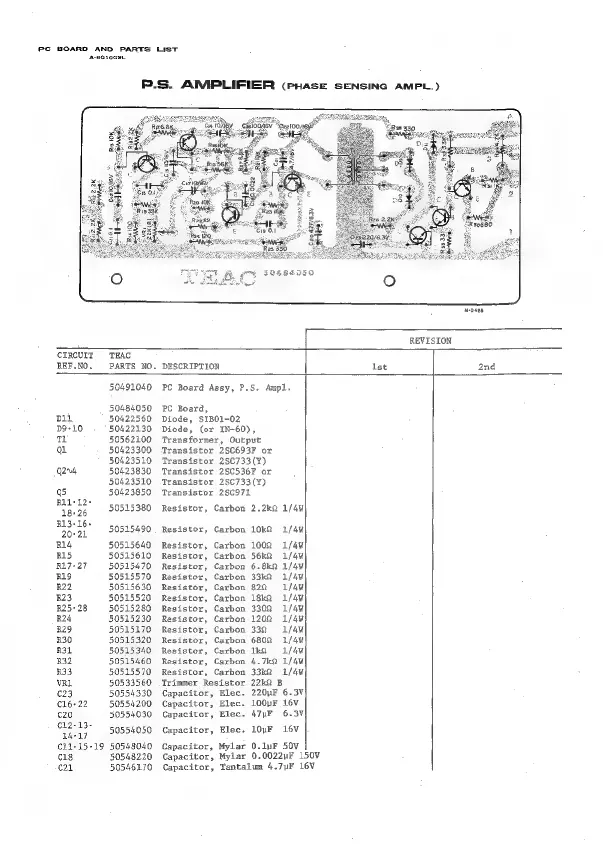

PC BOARD AND PARTS LIST
aA-eorccst
P.S. AMPLIFIER (PHASE SENSING AMPL.)
w08eo,
REVISION
CIRCUIT TEAC
REF.NO. PARTS NO. DESCRIPTION Ist 2nd
50491040 PC Board Assy, P.S. Ampl.
50484050 PC Board,
pli 50422560 Diode, SIBO1-02
D9+10 50422130 Diode, (or IN-60),
TL 50562100 Transformer, Output
Qu 50423300 Transistor 2SC693F or
50423510 Transistor 2SC733(¥)
Qar4 50423830 Transistor 2$C536F or
50423510 Transistor 28C733(¥)
Qs 50423850 ‘Transistor 2SC971
ae h2g 30515380 Resistor, Carbon 2.2k2 1/41
valde 30515490. Resistor, Carbon 10k 1/48
R14 50515640 Resistor, Carbon 1002 1/4¥
RI5 50515610 Resistor, Carbon 56k2 1/4W
RL7+27 50515470 Resistor, Carbon 6.8k2 1/4W
RIO 50515570 Resistor, Carbon 33kQ 1/4W
R22 50515630 Resistor, Carbon 822 1/4¥
R23 50515520 Resistor, Carbon 18k2 i/4¥
R25-28 50515280 Resistor, Carbon 3309 1/4¥
R24 50515230 Resistor, Carbon 1202 1/4¥
R29 50515170 Resistor, Carbon 332 1/4W
R30 50515320 Resistor, Carbon 6802 1/41
R31 50515340 Resistor, Carbon 1ka 1/4¥
R32 50515460 Resistor, Carbon 4.7k2 1/4W
R33 50515570 Resistor, Carbon 33k2 1/4W
VR 50533560 Trimmer Resistor 22k0 B
23 50554330 Capacitor, Elec. 220uF 6.3V
C16+22 550554200 Capacitor, Elec. 100uF 16
c20 50554030 Capacitor, Elec. 47uF 6.3¥
een 50554050 Capacitor, Elec. 10uF 16V
C11-15+19 50548040 Capacitor, Mylar 0.1yF 50V
cls 50548220 Capacitor, Mylar 0.0022uF 150V
C21 50546170 Capacitor, Tantalum 4.7uF 16V
