Teac A-6010GSL - Page 60

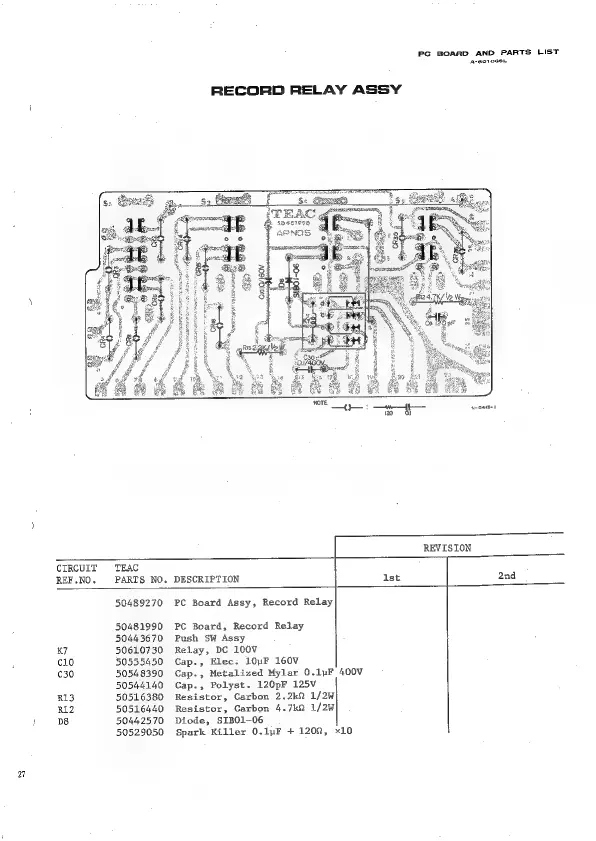

PCG BOARD AND PARTS LIST
A-601068L.
RECORD RELAY ASSY
ee wont
REVISION
CIRCUIT TEAC
REF
.NO.
PARTS
NO.
DESCRIPTION
ist
2nd
50489270 PC Board Assy, Record Relay
50481990 PC Board, Record Relay
50443670 Push SW Assy
KT 50610730 Relay, DC 100V
clo 50555450 Cap., Elec: 10uF 160V
C30 50548390 Cap., Metalized Mylar 0.1uF 400V
50544140 Cap., Polyst. 120pF 125V
R13 50516380 Resistor, Carbon 2.2k2 1/2W
R12 50516440 Resistor, Carbon 4.7k2 1/2W
D8 50442570 Diode, SIBO1-06
50529050 Spark Killer 0.1uF + 1208, x10
