System Connections

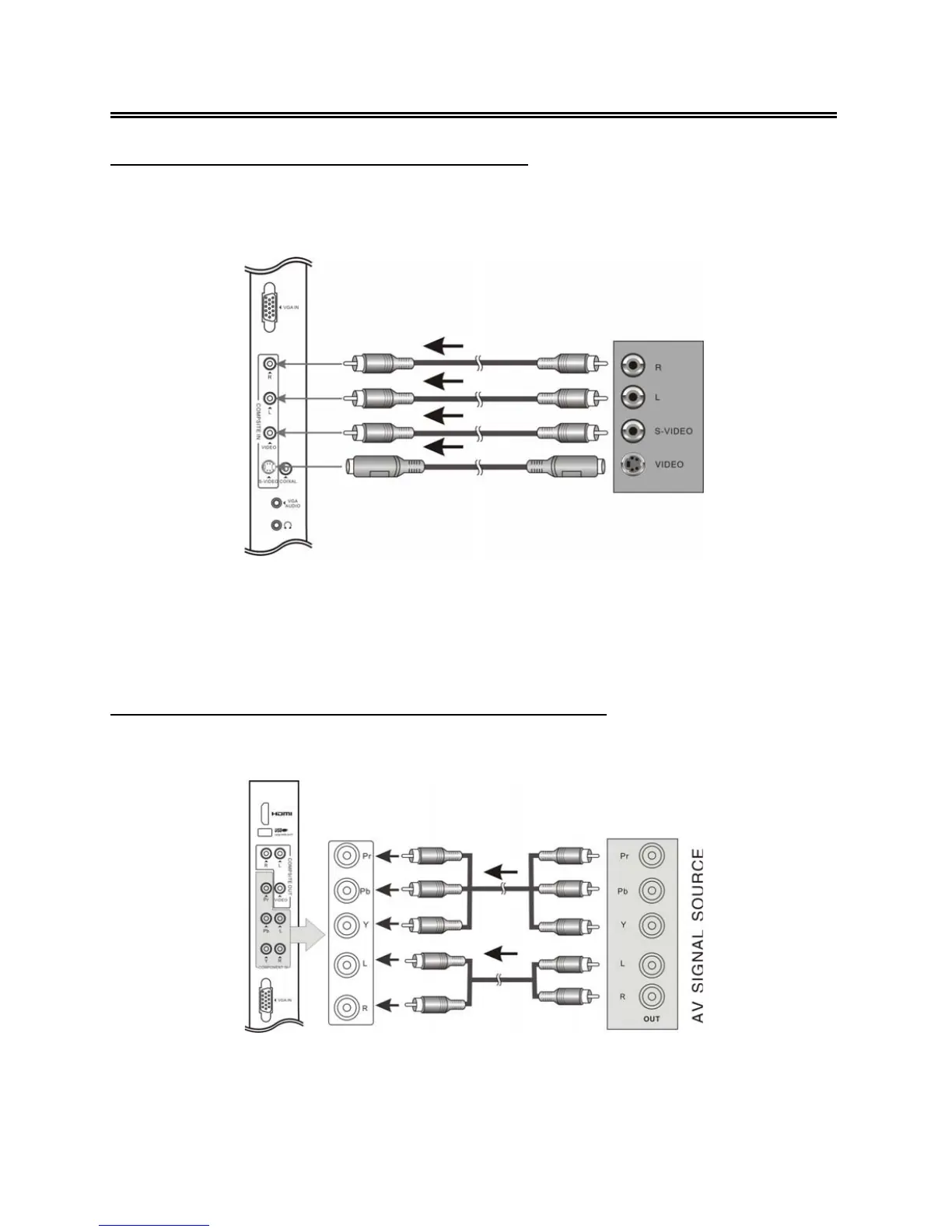

Connecting to an External AV Signal Source
Use the AV cables to connect the external AV signal source to the AV input jacks on the rear panel
of the unit. Use a S-VIDEO cable (not supplied) to connect the external AV signal source to the
S-VIDEO input jack on the rear panel of the unit.
After connection, turn on the power of the unit and the external AV signal source and use the
INPUT and the direction buttons to select COMPOSITE or S-Video mode, and then press the
ENTER button to confirm.
¾ The L/R audio input jacks can be used in both AV and S-VIDEO modes.
Connecting to an External AV Signal Source (YPbPr)
Use AV cables to connect an external AV signal source to the Y/Pb /Pr (Component) input jacks on
the rear panel of the unit.
After connection, turn on the power of the unit and the external AV signal source and use the
INPUT and the direction buttons to select Component mode, and then press the ENTER button to
confirm.
