Teac V-8030S - Features and Controls

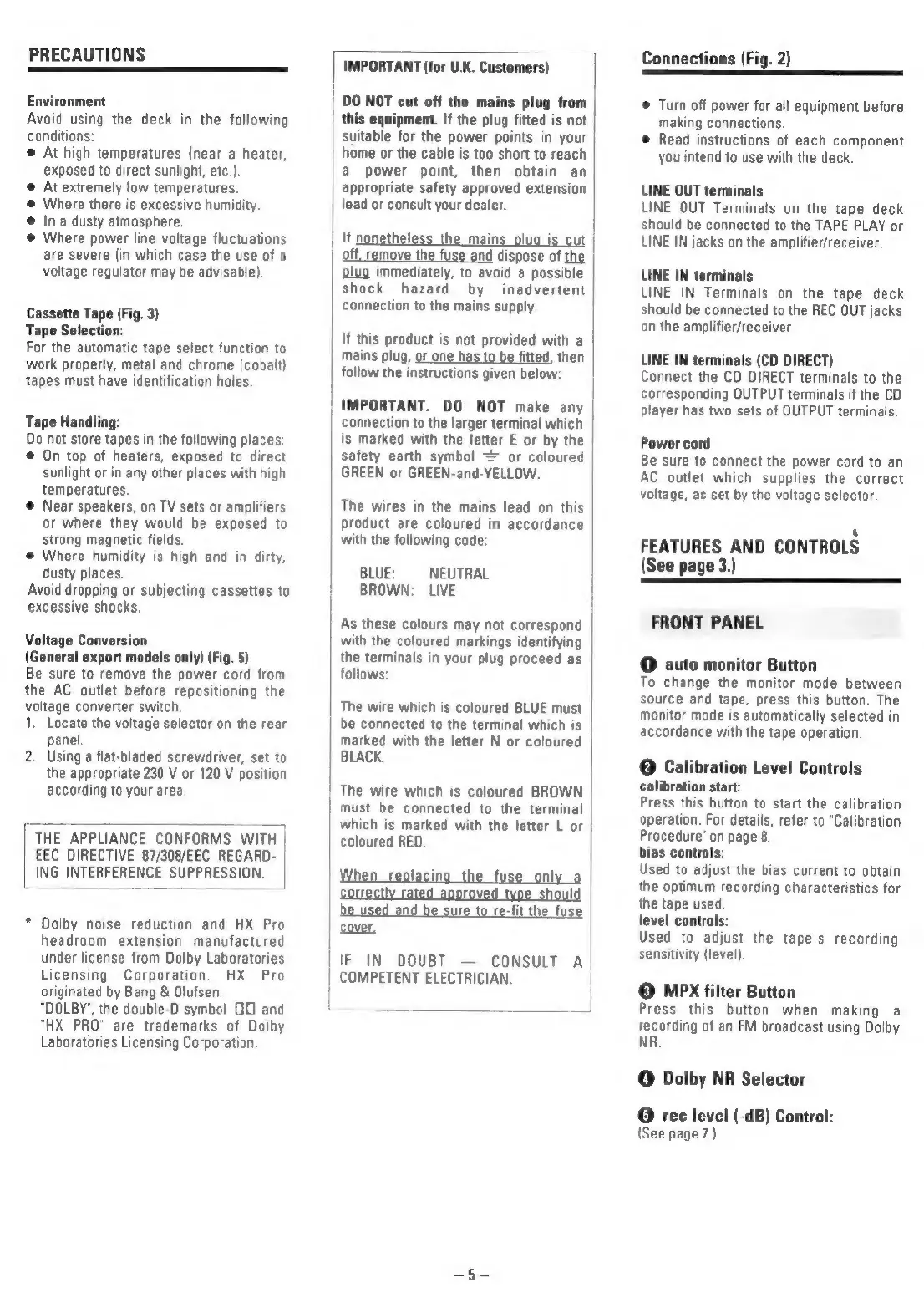

PRECAUTIONS
Environment
Avoid using the deck in the following
conditions:
@ At high temperatures (near a heater,
exposed to direct sunlight, etc.)
@ At extremely low temperatures.
@ Where there is excessive humidity.
© Ina dusty atmosphere.
@ Where power line voltage fluctuations
are severe (in which case the use of a
voltage regulator may be advisable).
Cassette Tape (Fig. 3)
Tape Selection:
For the automatic tape select function to
work properly, metal and chrome (cobalt)
tapes must have identification holes.
Tape Handling:
Do not store tapes in the following places:
© On top of heaters, exposed to direct
sunlight or in any other places with high
temperatures.
© Near speakers, on TV sets or amplifiers
or where they would be exposed to
strong magnetic fields.
@ Where humidity is high and in dirty,
dusty places.
Avoid dropping or subjecting cassettes to
excessive shocks.
Voltage Conversion
(General export models only) (Fig. 5)
Be sure to remove the power cord from
the AC outlet before repositioning the
voltage converter switch.
1, Locate the voltage selector on the rear
panel
2. Using a flat-bladed screwdriver, set to
the appropriate 230 V or 120 V position
according to your area.
THE APPLIANCE CONFORMS WITH |
EEC DIRECTIVE 87/308/EEC REGARD-
ING INTERFERENCE SUPPRESSION. |
* Dolby noise reduction and HX Pro
headroom extension manufactured
under license from Dolby Laboratories
Licensing Corporation. HX Pro
originated by Bang & Olufsen.
"DOLBY", the double-D symbol OO and
"HX PRO" are trademarks of Dolby
Laboratories Licensing Corporation.
IMPORTANT (for U.K. Customers)
DO NOT cut off the mains plug from
this equipment. If the plug fitted is not
suitable for the power points in your
home or the cable is too short to reach
@ power point, then obtain an
appropriate safety approved extension
lead or consult your dealer.
If nonetheless the mains plug is cut
off, remove the fuse and dispose of the
plug immediately, to avoid a possible
shock hazard by inadvertent
connection to the mains supply. |
If this product is not provided with a
mains plug, or one has to be fitted, then
follow the instructions given below:
IMPORTANT. DO NOT make any
connection to the larger terminal which
is marked with the letter E or by the
safety earth symbol > or coloured
GREEN or GREEN-and-YELLOW.
The wires in the mains lead on this
product are coloured in accordance
with the following code:
BLUE: NEUTRAL
BROWN: LIVE
As these colours may not correspond
with the coloured markings identifying
the terminals in your plug proceed as
follows:
The wire which is coloured BLUE must
be connected to the terminal which is
marked with the letter N or coloured
BLACK.
The wire which is coloured BROWN
must be connected to the terminal
which is marked with the letter L or
coloured RED.
lacil ni |
correctly rated approved type should |
be used and be sure to re-fit the fuse
cover.
IF IN DOUBT — CONSULT A
COMPETENT ELECTRICIAN. |
© Turn off power for all equipment before
making connections.
© Read instructions of each component
you intend to use with the deck.
LINE OUT terminals
LINE OUT Terminals on the tape deck
should be connected to the TAPE PLAY or
LINE IN jacks on the amplifier/receiver.
LINE IN terminals
LINE IN Terminals on the tape deck
should be connected to the REC OUT jacks
on the amplifier/receiver
LINE IN terminals (CD DIRECT)
Connect the CD DIRECT terminals to the
corresponding OUTPUT terminals if the CD
player has two sets of OUTPUT terminals.
Power cord
Be sure to connect the power cord to an
AC outlet which supplies the correct
voltage, as set by the voltage selector.
FEATURES AND CONTROLS
(See page 3.)
FRONT PANEL
© auto monitor Button
To change the monitor mode between
source and tape, press this button. The
monitor mode is automatically selected in
accordance with the tape operation.
@ Calibration Level Controls
calibration start:
Press this button to start the calibration
operation. For details, refer to “Calibration
Procedure" on page 8.
bias controls:
Used to adjust the bias current to obtain
the optimum recording characteristics for
the tape used
level controls:
Used to adjust the tape's recording
sensitivity (level).
© MPXxX filter Button
Press this button when making a
recording of an FM broadcast using Dolby
NR.
© Dolby NR Selector
@ rec level (-dB) Control:
(See page 7.)
