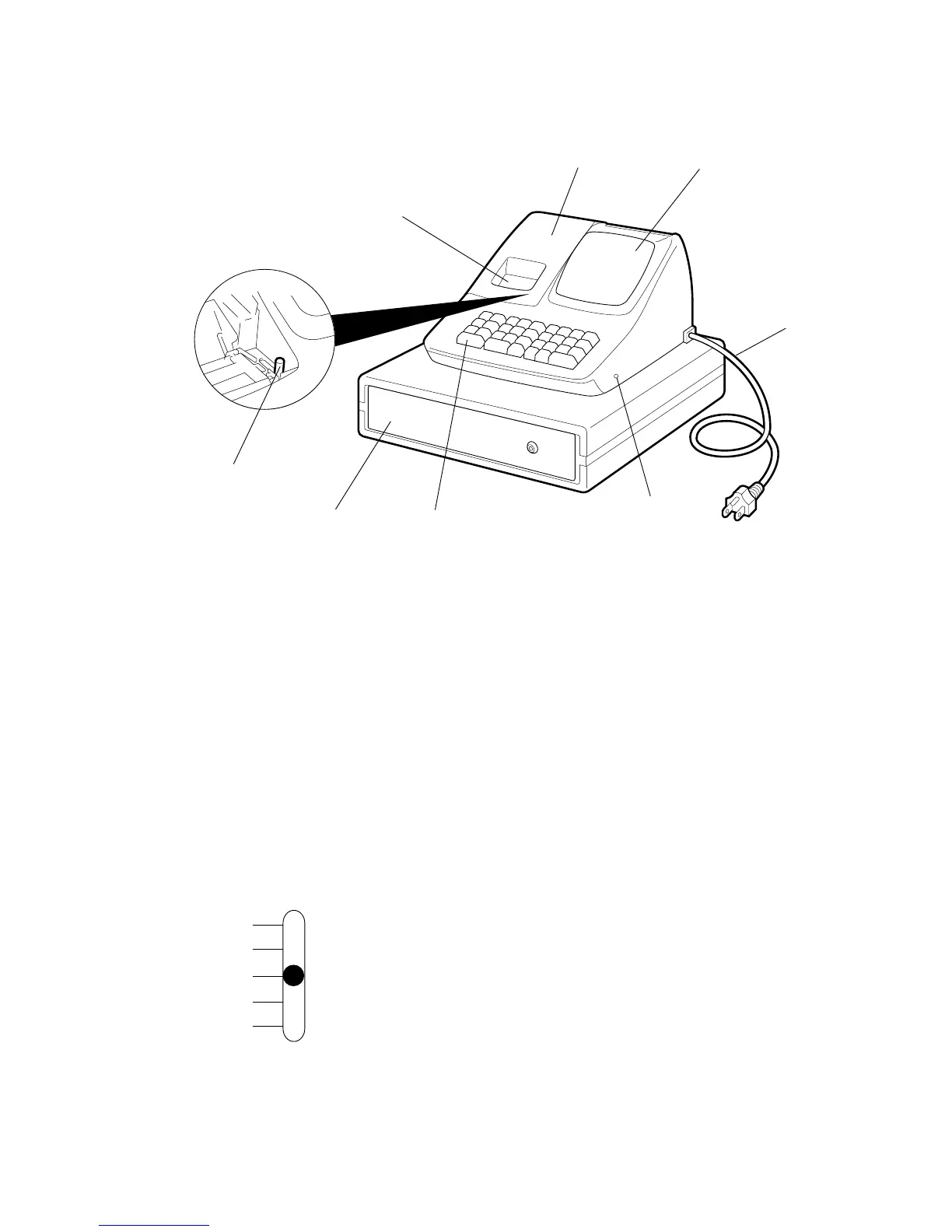

4. Appearance and Nomenclature
Drawer Keyboard
Power Cord
Printer Cover Display
Mode Select Switch
External Battery
Kit Connector
Printer Cover
The cover for the Receipt or Journal paper holder
and the printer.
Receipt Outlet or Journal Window
The receipt for the finalized sale is issued.
Or, the operator can see which items have already
been entered through this window.
External Battery Kit Connector
The External Battery Kit (K-BAP-QM) is avail-
able as an option. By connecting this kit into the
connector, the register is operable without AC
power.
Display (Operator and Customer)
Used to confirm the entry contents and the status
of the register. (page 6)
Mode Select Switch
The Mode Select Switch is provided inside the
Printer Cover.
It selects the type of register operations. (page 5)
Keyboard
Used to enter sale items. (page 7)
Drawer
Cash and other media are kept here. It automati-
cally opens on finalizing a sale.
5. Mode Select Switch
SET ............Used to program preset data.
OFF ............Stops register operations and extinguishes the display. How-
ever, the power is being supplied to the register.
REG ...........Used to register normal sales .
X .................Used to read sales totals processed in the register report
memory (X report). Received-on-Account and Paid Out
operations are also performed in this position. Also used to
read preset data.
Z .................Used to read and reset sales totals in the register report
memory (Z report).
REG
OFF
SET
X
Z
Journal Window
or
Receipt Outlet
To Next Page
