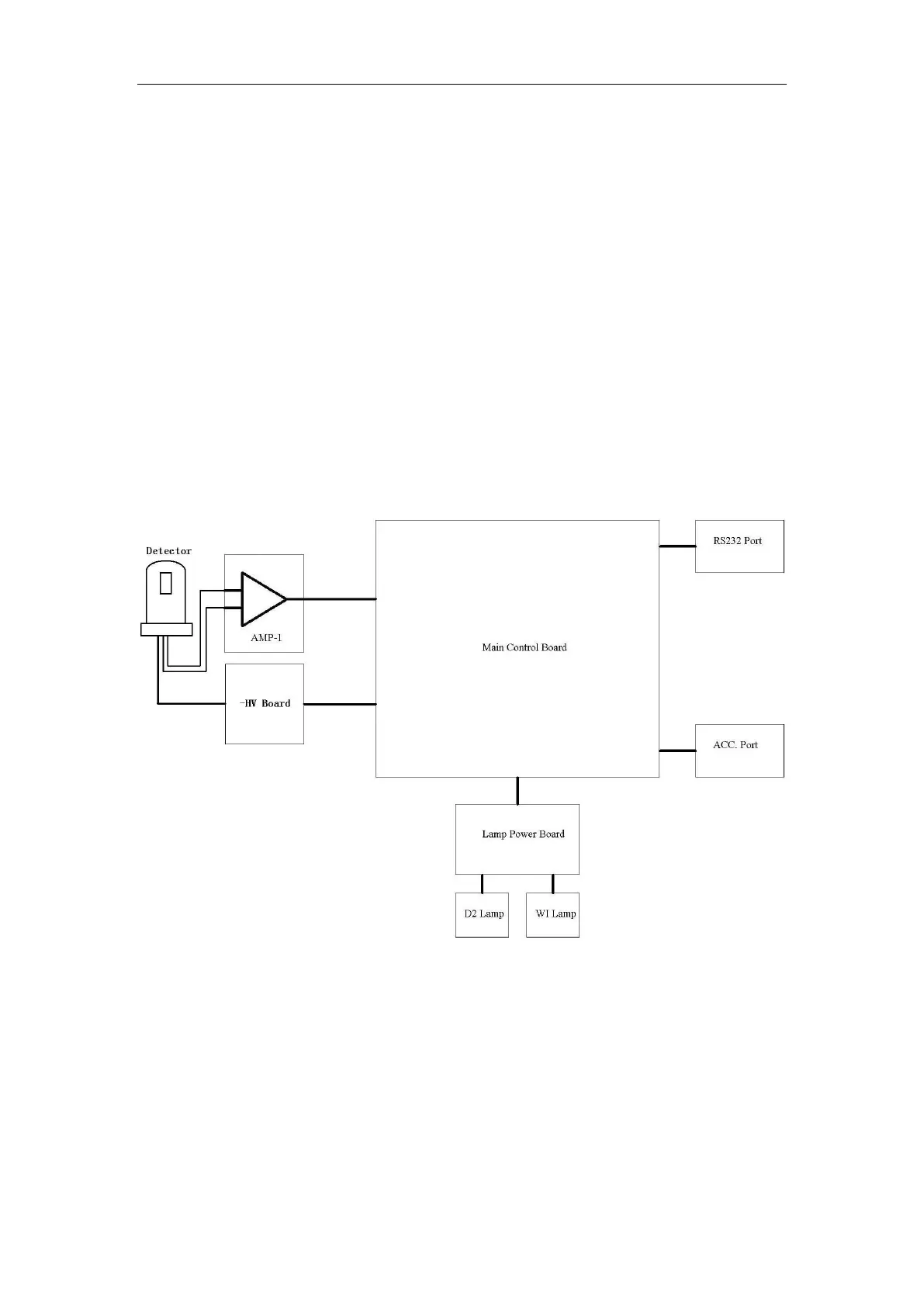

UV2600 circuit system can be seen in Figure 2-3.
The system can be controlled by PC.
Light signal is converted into electricity signal by Detector, then will be
amplified by pre-amplifier (AMP). Then it will processed by PC (main control
board) and data result will be sent to PC and displayed by software.
HV Board provides negative high-pressure power supply used by detector, and
control board will select suitable negative high-pressure value automatically to
obtain stable energy.
Work power supply of PC control part is controlled or provided by lamp power
supply.
RS232 Port is communication port; ACC port is communication port for
optional part.
