2.2. Main Page Description

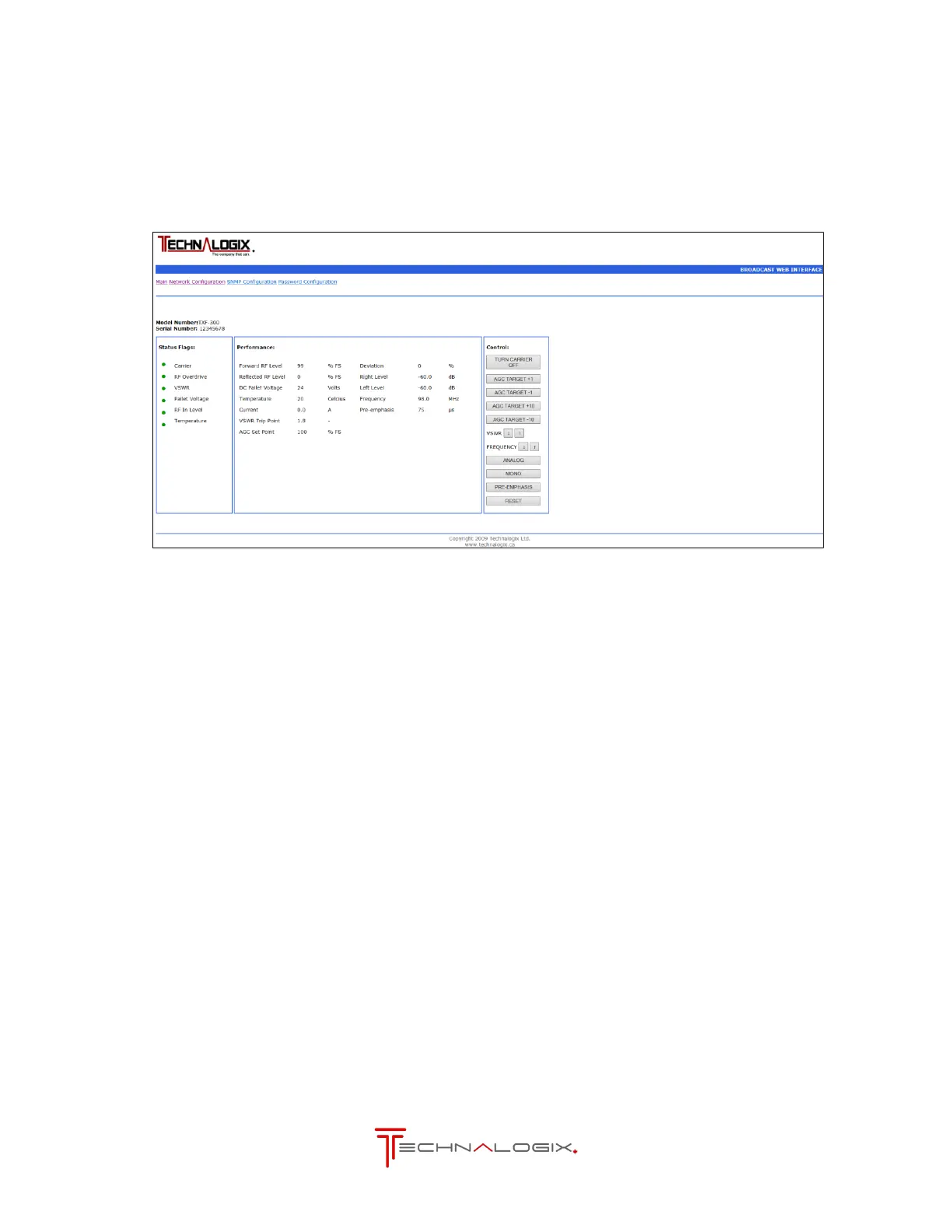

After entering the login information, the main page is then shown on the browser, as illustrated
below for either single amplifier systems or multiple amplifier systems that are combined:
The model number and serial number of the unit are displayed in the top left of the browser
screen.
The Status Flags section provides the user with feedback from the system. Specifically, there
are status flags for:
• RF Carrier is on or off
• Forward RF in Overdrive (>110% Full Scale (FS) )
• High VSWR
• Pallet Voltage Supply Good
• RF In Level Good
• High Temperature
The Performance section provides the user with specific parameters and measurements in the
system. Measurements that can be viewed from the Performance box are:
• Forward RF Levels as a % of Full Scale (FS)
• Reflected RF Levels as a % of FS
• DC Supply Voltage in volts
• Temperature in °C
• Current of pallet(s) in Adc
• VSWR Trip Point Limit
• AGC measured against 100% FS
• Deviation
• Right Level/Left Level input attenuation
• Frequency in MHz
