3.4 Configuring the PSU
The DBD-1200 has the following power supply options:
1. Local powering is possible on RF port 4 (bypass port) using a power inserter
2. Remote powering. Maximum AC power passing = 10
See page 27 for removal/installation of PSU unit.
Powering routing
Input port Output port 2 Output port 1Input
bypass port
Local powering
*** VAC
Remote
powering
Output port 3

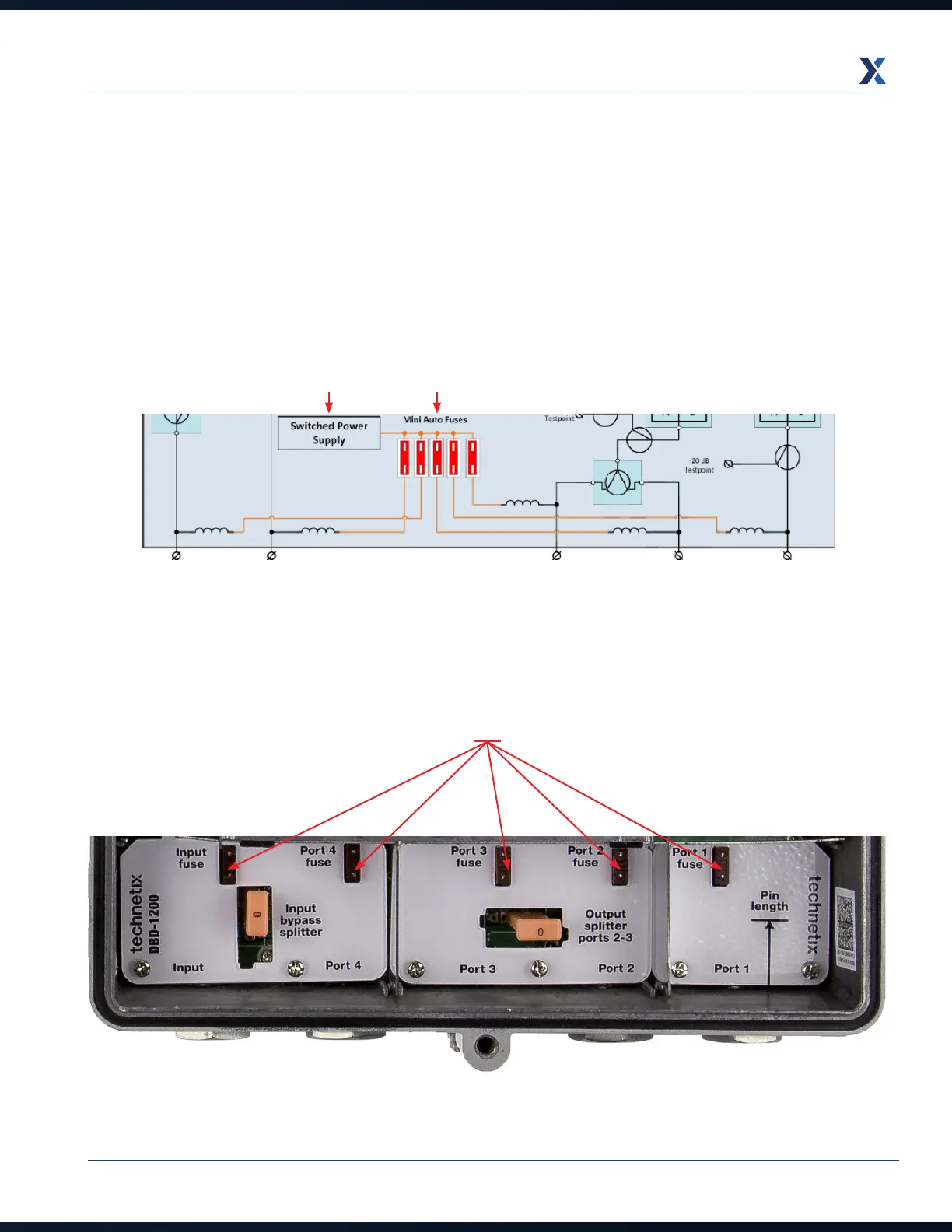

Fusing (power directors)
Referring to the network design documentation, remove any fuses not required for passing power.
