14Technetix Group LimitedRev.1.0.1_0217
3.7 Downstream activation

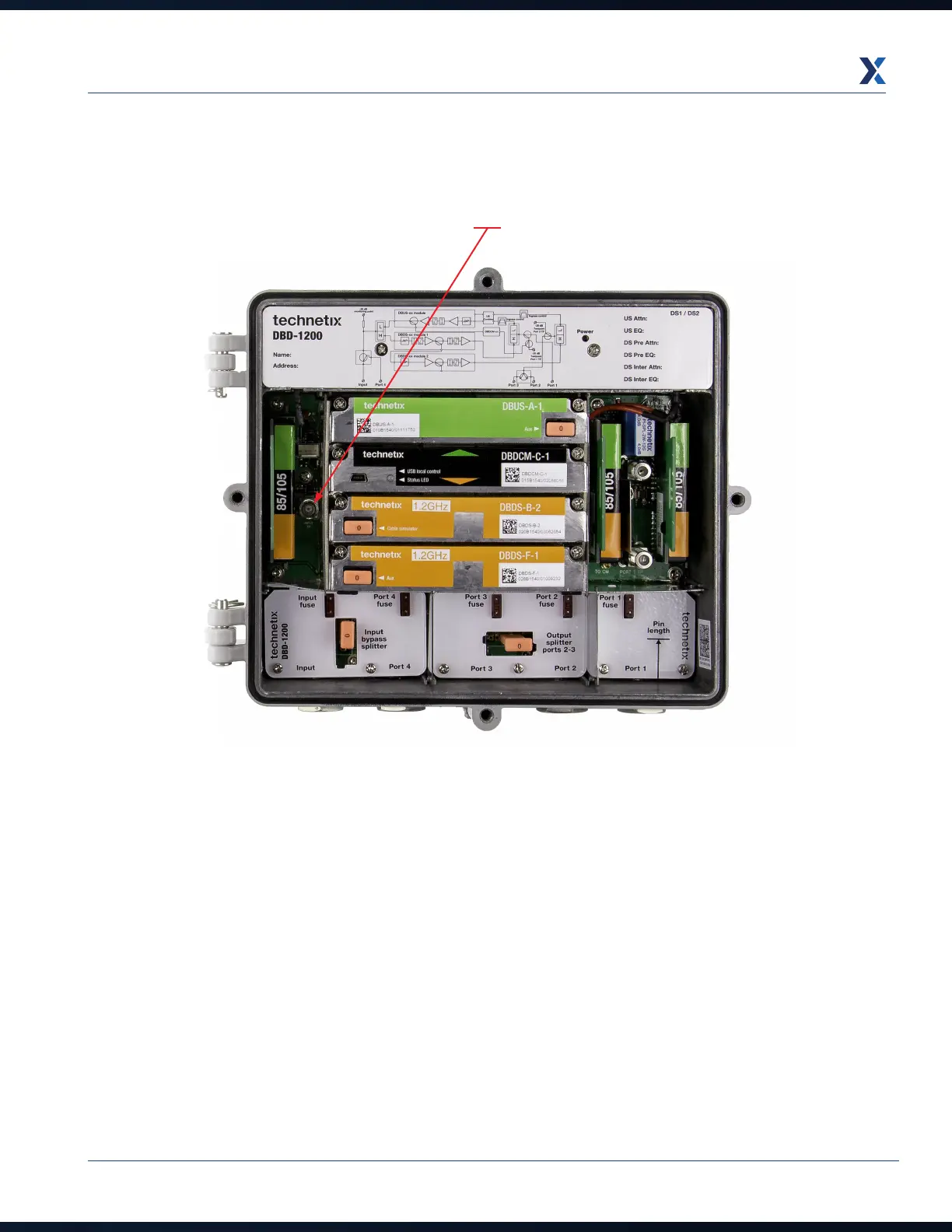

Connect a spectrum analyser to the input -20 dB test point, then measure and record the RF pilot frequencies’
input levels as per the design drawings
Note: ensure all amplifier ports are connected to a 75Ω terminated load so that the RF test instrument readings
are correct.
