Chapter 4: Maintenance
4.1 PSU replacement
Note: Ensure line power is disconnected before starting PSU replacement.

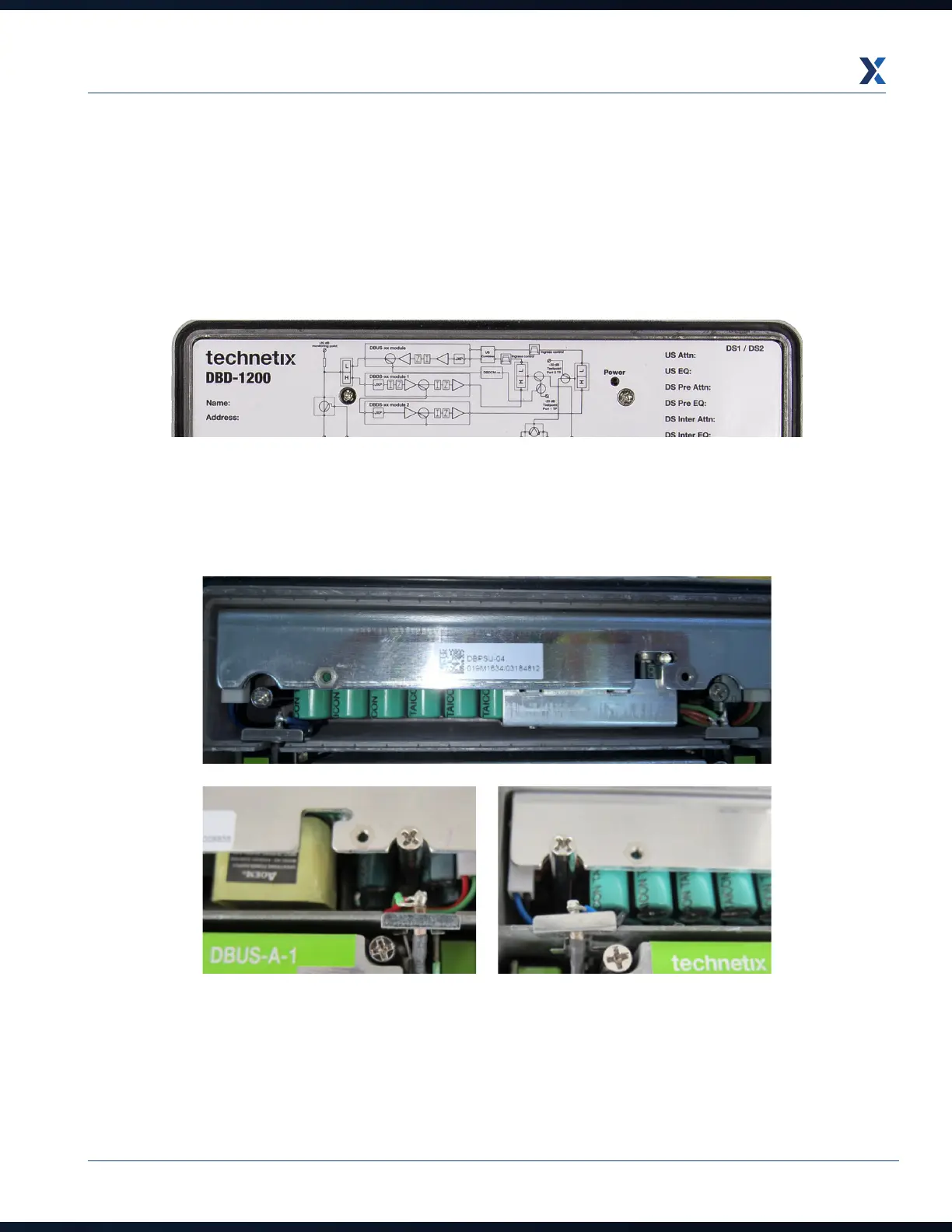

1. Remove the 2 x PSU cover plate crosshead screws, then the PSU cover plate
2. Unscrew the 2 x PSU holding screws. Remove the PSU by lifting it carefully and sliding the grounding pass-
through PSU leads’ clips out of their slots.
